Schneider Electric NSYCRN33200P Door 1 pc(s)

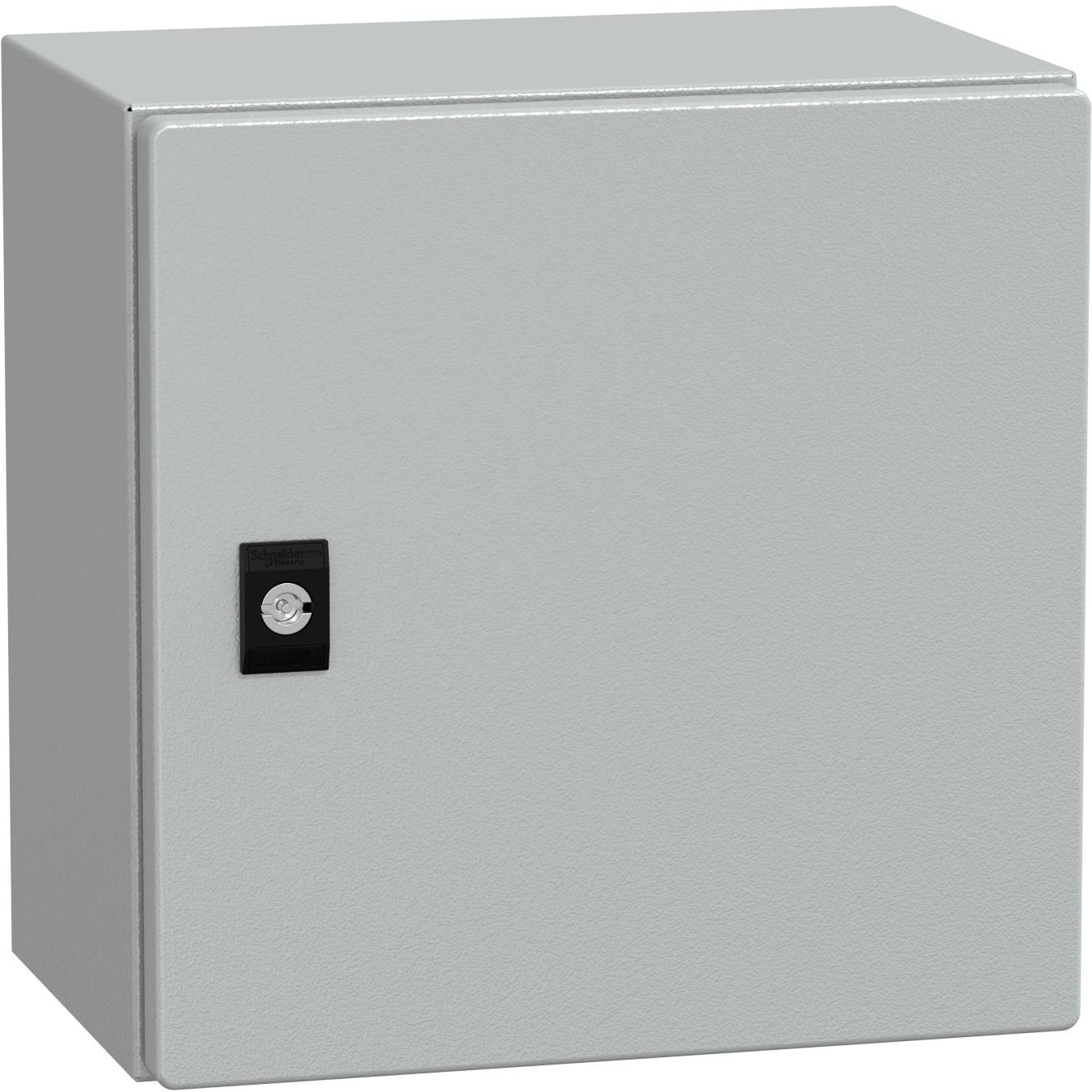

The PanelSet CRN steel wall housing is designed for versatile applications. Suitable for harsh environments and resistant to shocks according to IK10 (IEC 62262) as well as to dust and water according to IP66 (IEC 60529). The cabinet has a nominal height, width and depth of 300 mm, 300 mm and 200 mm. The cabinet is gray (RAL7035) and has an epoxy-polyester powder coating. The cabinet consists of a body, a cable entry plate, a simple door with three-point locking and a 3-mm double-bit insert and a galvanized mounting plate. The door can be opened up to 120 degrees and allows easy access to the equipment. The opening direction of the door can be adjusted (reversible). The door, cable entry plates and mounting plate can be removed for maintenance purposes. The net weight of the cabinet is 5.87 kg. With an epoxy-polyester powder coating, which ensures a bright, even and appealing surface. This compact cabinet is cUL certified.
