Schneider Electric NSYCRN75200P Door 1 pc(s)

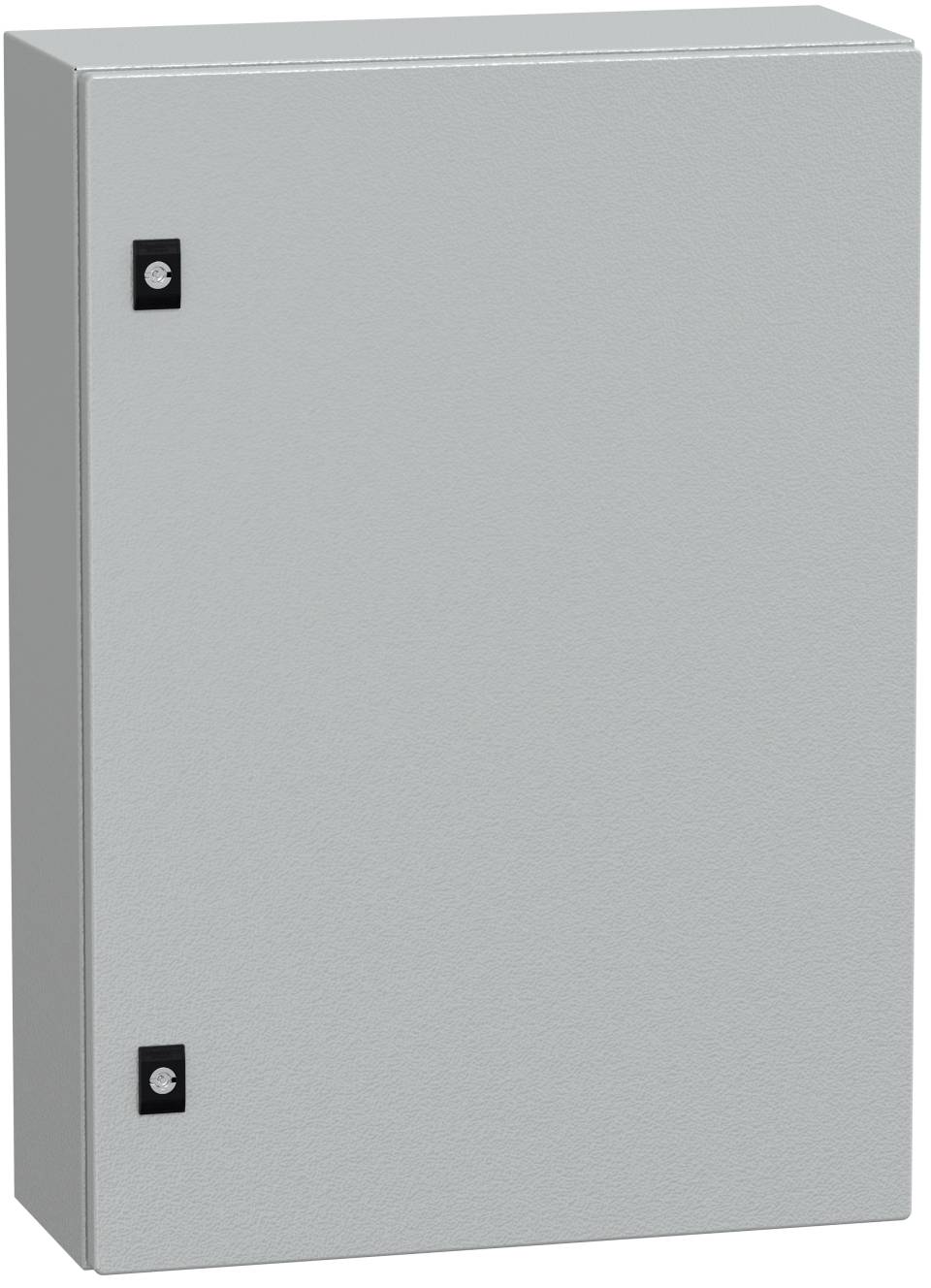

PanelSet CRN steel wall housing for versatile applications. Designed for use in harsh environments and resistant to high impact according to IK10 (IEC 62262) and IP66 (IEC 60529) dust and water. The cabinet has a nominal height, width and depth of 700 mm, 500 mm and 200 mm. The cabinet is gray (RAL 7035) and has an epoxy-polyester powder coating. The cabinet consists of a body, a cable entry plate, a simple door with lock and a galvanized mounting plate. The door can be opened up to 120 degrees and allows easy access to the equipment. The opening direction of the door can be adjusted (reversible). The door is equipped with a three-point locking system with a 3-mm double-bit insert. The door and cable entry plate can be removed for maintenance purposes; the mounting plate can be removed using a fastener. The net weight of the cabinet is 18kg. This compact cabinet is cUL certified.

This text is machine translated.
