Schneider Electric NSYOPB15U6F 19 inch 19" server rack cabinet 15 U Fixed Suitable for (cabinet depths): 600 mm Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 567.23 / piece)
€ 567.23
plus VAT.
Actassi OPB, wall rack, 15HE B600 T600 fixed 19"-glass door R7035
Technical specifications
- Product type
19" server rack cabinet
- Features
Fixed
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
15 U
- Suitable for (cabinet depths)
600 mm
- Dim
(W x H x D) 600 x 780 x 600 mm
- Material
Steel
- Content
1 pc(s)
- Factory colour
Grey
- Width
600 mm
- Height
780 mm
- Depth
600 mm
- Rack size
483 mm (19")
Documents & Downloads
Datasheet
Datasheet 2971711 Schneider Electric NSYOPB15U6F 19 inch 19" server rack cabinet 15 U Fixed Suitable for (cabinet depths): 600 mm Grey
Datasheet 2971711 Schneider Electric NSYOPB15U6F 19 inch 19" server rack cabinet 15 U Fixed Suitable for (cabinet depths): 600 mm Grey
User & Safety Instructions
User & Safety Instructions 2971711 Schneider Electric NSYOPB15U6F 19 inch 19" server rack cabinet 15 U Fixed Suitable for (cabinet depths): 600 mm Grey
Information
Information 2971711 Schneider Electric NSYOPB15U6F 19 inch 19" server rack cabinet 15 U Fixed Suitable for (cabinet depths): 600 mm Grey
Information 2971711 Schneider Electric NSYOPB15U6F 19 inch 19" server rack cabinet 15 U Fixed Suitable for (cabinet depths): 600 mm Grey
Information 2971711 Schneider Electric NSYOPB15U6F 19 inch 19" server rack cabinet 15 U Fixed Suitable for (cabinet depths): 600 mm Grey
Information 2971711 Schneider Electric NSYOPB15U6F 19 inch 19" server rack cabinet 15 U Fixed Suitable for (cabinet depths): 600 mm Grey
Description

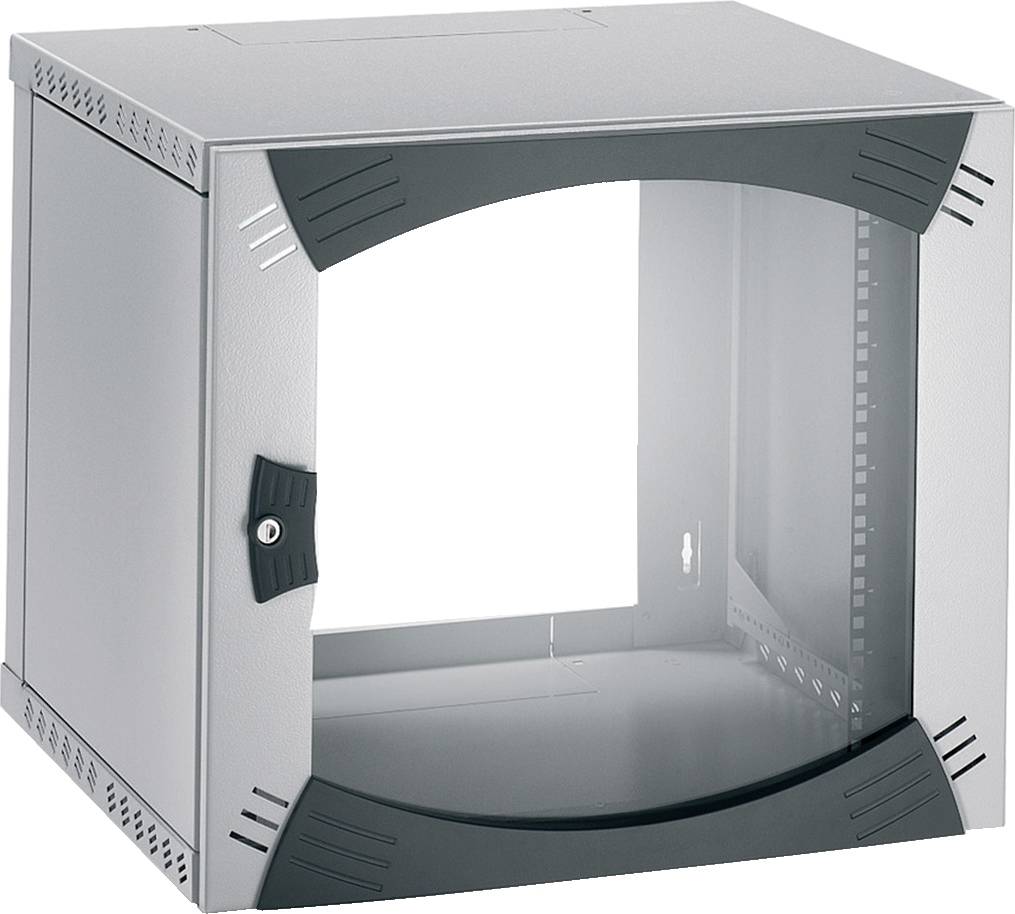

This Actasi OPB is a wall-mounted housing made of folded and welded steel plate, powder-coated, leather-grained, RAL 7035 light-gray epoxy polyester. The housing consists of a body, 2 rotatable and removable side panels, fixed 19-inch rails and a transparent security glass door with key No. 333. 333. Degree of protection of object IP20 and impact resistance IK08 for the inspection door. Solid 19-inch rack that can hold up to 3 kg per unit, up to 50 kg per enclosure according to IEC62208. The dimensions of this cabinet are 780 mm in height (or 15 U), 600 mm in width and 600 mm in depth. Actassi product family.
