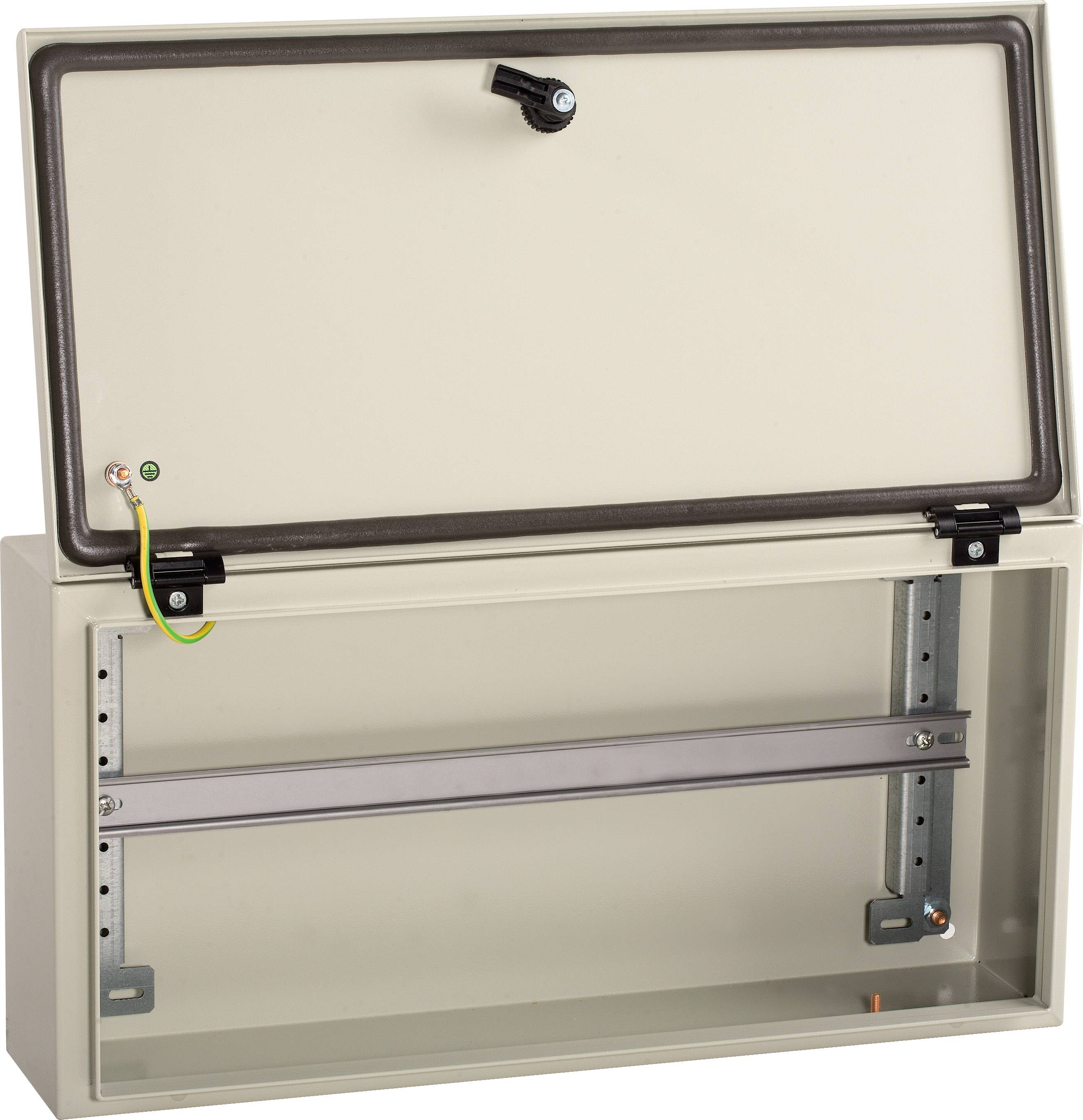

Schneider Electric NSYS3DB25415 Casing 400 x 250 x 150 Steel Grey-white (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Steel
IP rating
IP66
Width
400 mm
Height
250 mm
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
14-day return policy included
Technical specifications
- Product type
Casing
- Material
Steel
IP66
- Factory colour
Grey-white (RAL 7035)
- Width
400 mm
- Height
250 mm
- Weight
4.13 kg
- Content
1 pc(s)
- Type
NSYS3DB25415
- Dim
(W x H x D) 400 x 250 x 150 mm
- Manufacturer part #
NSYS3DB25415
- Depth
150 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1868011 Schneider Electric NSYS3DB25415 Casing 400 x 250 x 150 Steel Grey-white (RAL 7035) 1 pc(s)
Description
Spacial S3 DB. H 250 xB 400 xT 150. IP66, IK10, RAL 7035. No. Product Series: spacial spacial CRN, S3D device application: Terminal application - product or component type: compact housing - housing nominal height: 250mm housing nominal width: 400 mm housing nominal depth: 150 mm - description of the mounting plate: without mounting plate-type of the grommet: without grommet-Installationszubehortyp: horizontal or vertical position, Wall Mounting Application: for the equipment with terminal device structure: closure 1, housing 1, door 1.
