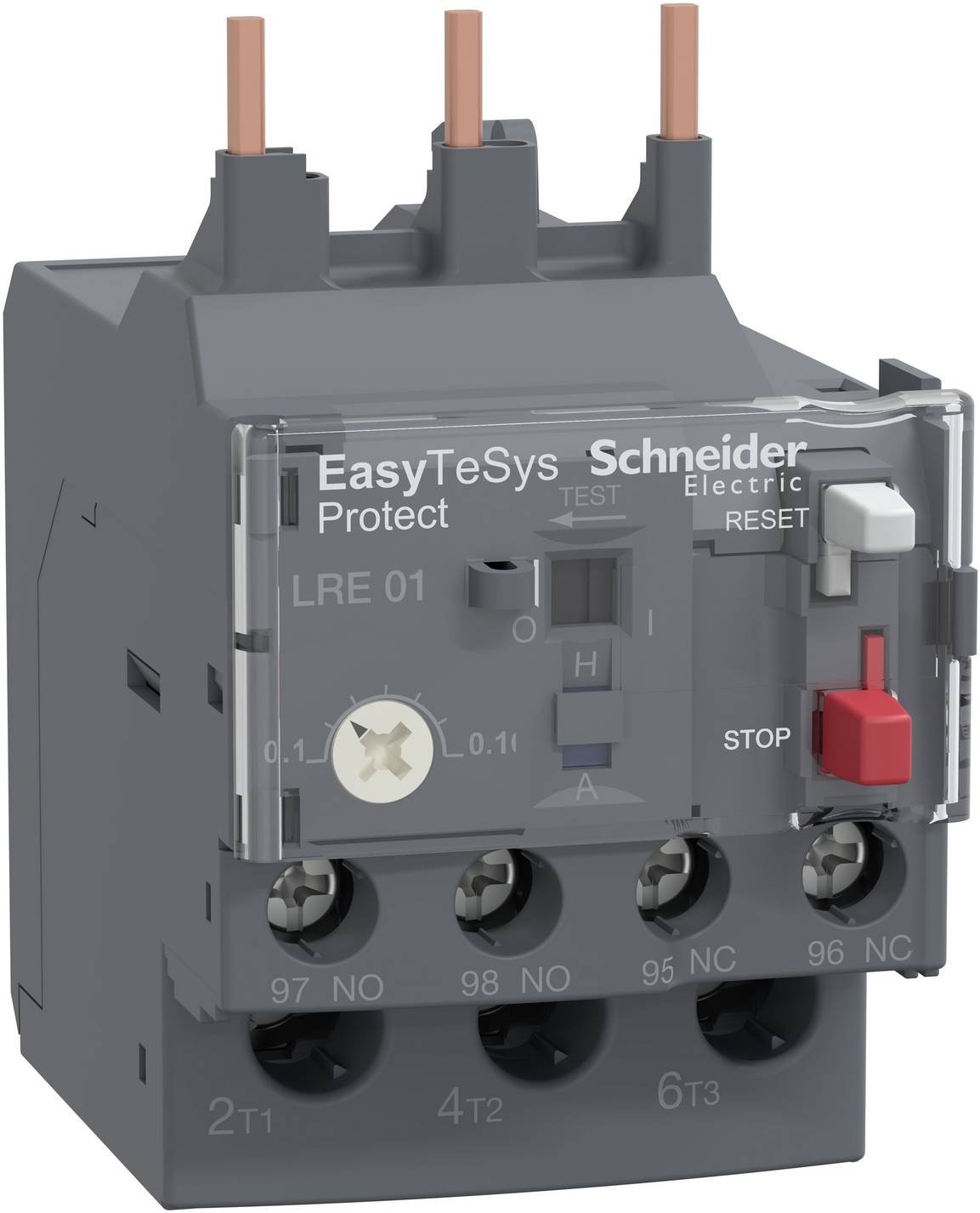

Schneider Electric EasyTeSys Protect motor protection relay with three copper terminals, reset/stop controls, and labeled screw connections on the front.

Schneider Electric EasyTeSys Protect motor protection relay with three copper terminals, reset/stop controls, and labeled screw connections on the front.

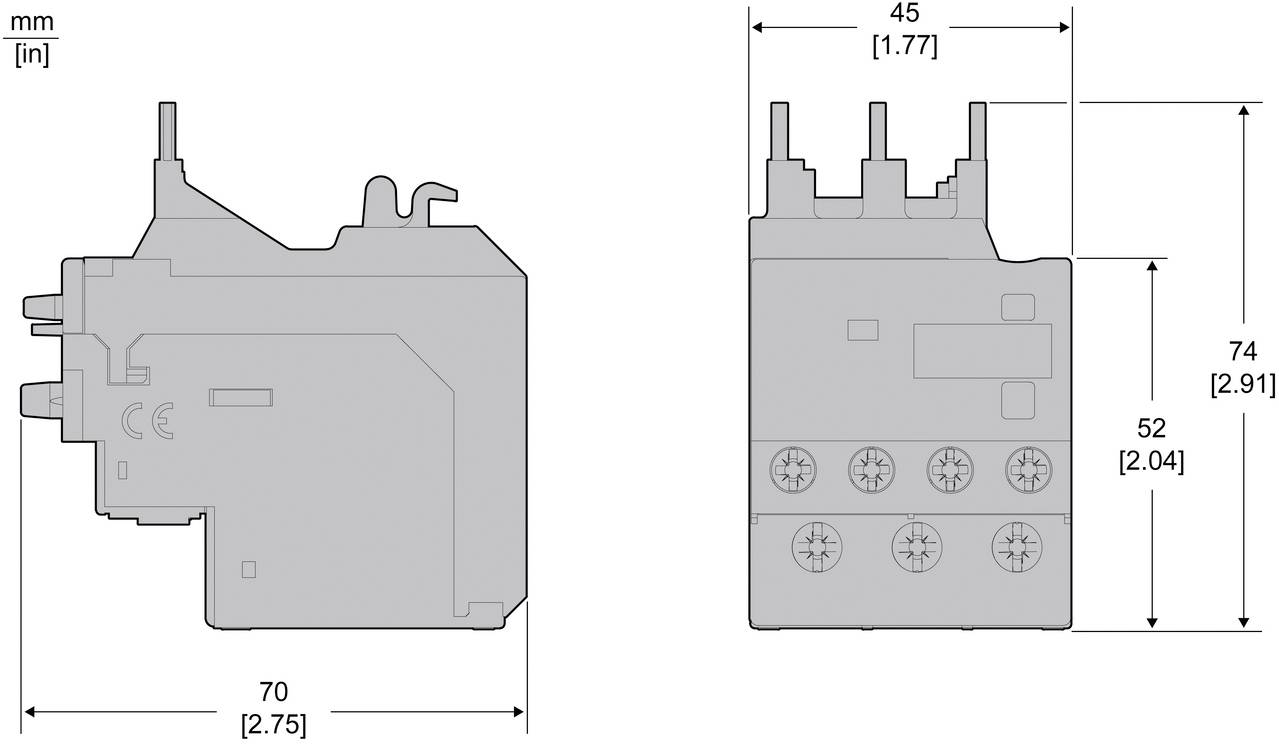

Technical dimension drawing of an electrical component shown in side and front views, labeled in mm and inches; key dimensions include 70, 45, 52, and 74.

1/2

Product type

O/L relay

Type

LRE01

Content

1 pc(s)

UKCA

yes

Datasheet (PDF)

Deutsch (Deutschland)

Schneider Electric

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Number of auxiliary contacts as NO contacts: 1
Number of auxiliary contacts as changer: 0
Number of auxiliary contacts as NC contacts: 1
Trigger CLASS 10 A
Max. Rated operating voltage Ue 690 V
Mounting type: Direct mounting
Reset function automatic: No.
Reset function input: No.
Reset button function: Yes

Product type: O/L relay

Type: LRE01

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3755150 Schneider Electric O/L relay 1 pc(s) LRE01

User & Safety Instructions

European union

User & Safety Instructions 3755150 Schneider Electric O/L relay 1 pc(s) LRE01

Description

The LRE relay is a thermal differential overload relay for use with fuses or GV2 L and GV3 L. magnetic circuit breakers. Its thermal setting range is 0.1-0.16 50/60Hz and the 10A tripping class is IEC 60947-4-1. It can be mounted directly on Easy TeSys control contactors with screw terminals. It protects unbalanced loads and motors with 0.06KW at 400VAC. It provides a manual or automatic reset, an auxiliary trigger contact, and a flag display. It is available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.
