Schneider Electric O/L relay 1 pc(s) LRE16
EAN:
Part number:
Item no:
Product type
O/L relay
Type
LRE16
Content
1 pc(s)
UKCA
yes
Datasheet (PDF)
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
14-day return policy included
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as changer: 0
- Number of auxiliary contacts as NC contacts: 1
- Trigger CLASS 10 A
- Max. Rated operating voltage Ue 690 V
- Mounting type: Direct mounting
- Reset function automatic: No.
- Reset function input: No.
- Reset button function: Yes
- Product type
O/L relay
- Type
LRE16
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3755172 Schneider Electric O/L relay 1 pc(s) LRE16
User & Safety Instructions
User & Safety Instructions 3755172 Schneider Electric O/L relay 1 pc(s) LRE16
Description

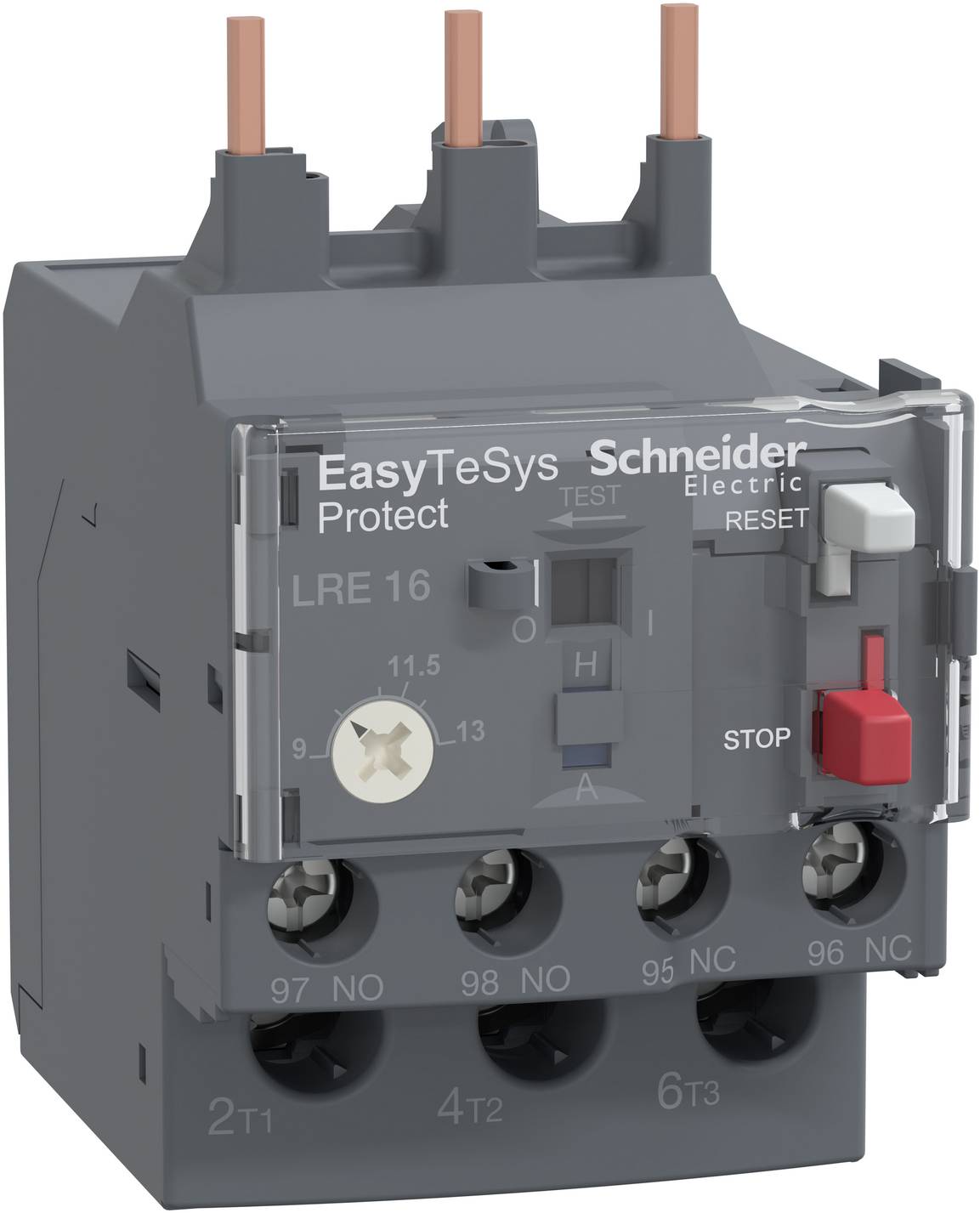

The LRE relay is a thermal differential overload relay designed for use with fuses or GV2 L and GV3 L magnetic circuit breakers. Its thermal setting range is 9-13A 50/60Hz and the 10A tripping class according to IEC 60947-4-1. It can be mounted directly on Easy TeSys control contactors with screw terminals. It protects asymmetric loads and motors with 5.5kW at 400VAC. It provides manual or automatic reset, trigger auxiliary contact and flag display. It is available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.
