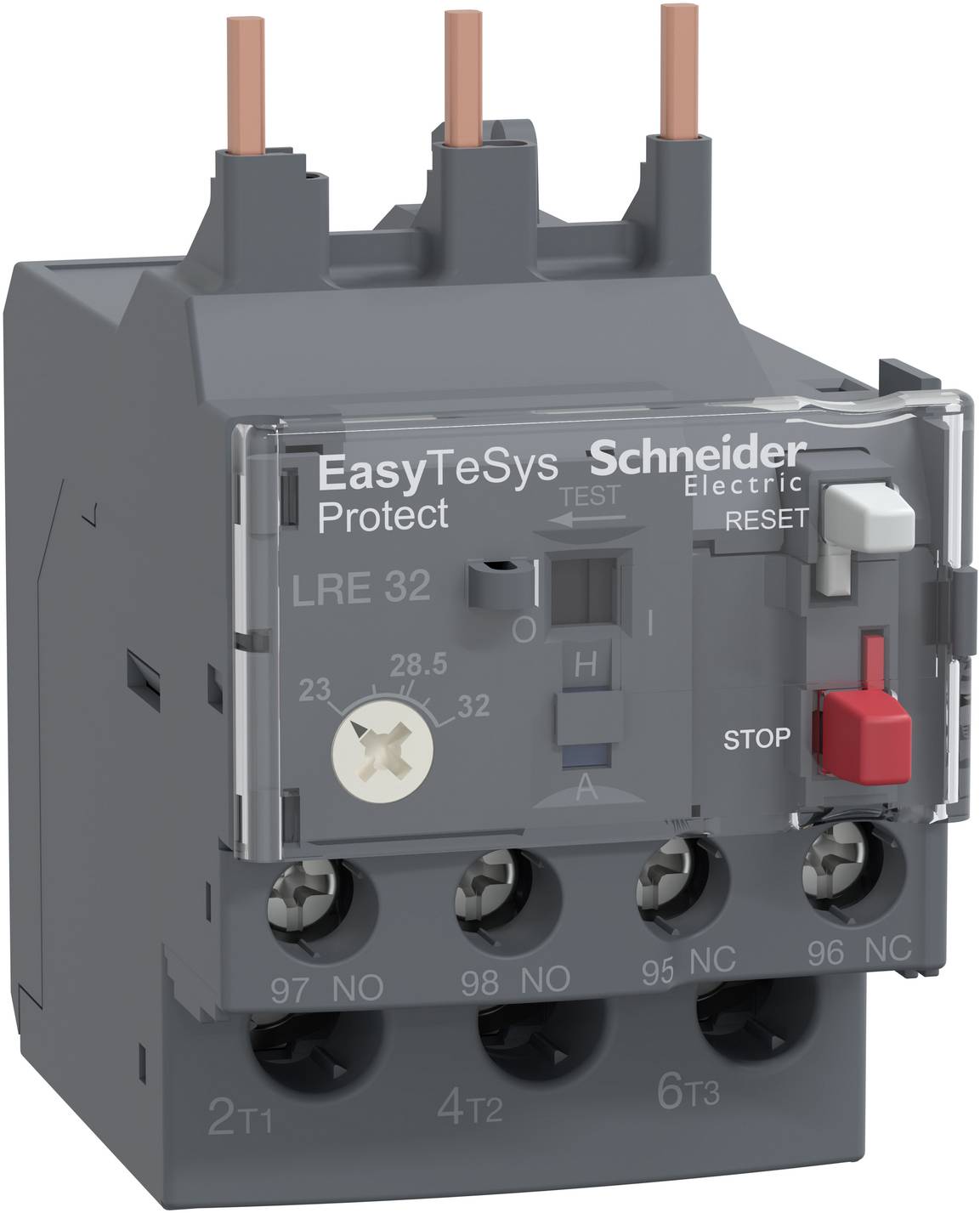

Schneider Electric O/L relay 1 pc(s) LRE32
EAN:
Part number:
Item no:
Product type
O/L relay
Type
LRE32
Content
1 pc(s)
UKCA
yes
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
14-day return policy included
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as changer: 0
- Number of auxiliary contacts as NC contacts: 1
- Trigger CLASS 10 A
- Max. Rated operating voltage Ue 690 V
- Mounting type: Direct mounting
- Reset function automatic: No.
- Reset function input: No.
- Reset button function: Yes
- Product type
O/L relay
- Type
LRE32
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3755179 Schneider Electric O/L relay 1 pc(s) LRE32
User & Safety Instructions
User & Safety Instructions 3755179 Schneider Electric O/L relay 1 pc(s) LRE32
Description
The LRE relay is a thermal overload relay for use with fuses or GV2 L and GV3 L magnetic circuit breakers. Its thermal setting range is 23-32A 50/60Hz and the 10A tripping class according to IEC 60947-4-1. It can be mounted directly on Easy TeSys control contactors with screw terminals. It protects unbalanced loads and 55kW motors at 400VAC. It provides manual or automatic reset, trigger auxiliary contact and flag display. It is available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.
