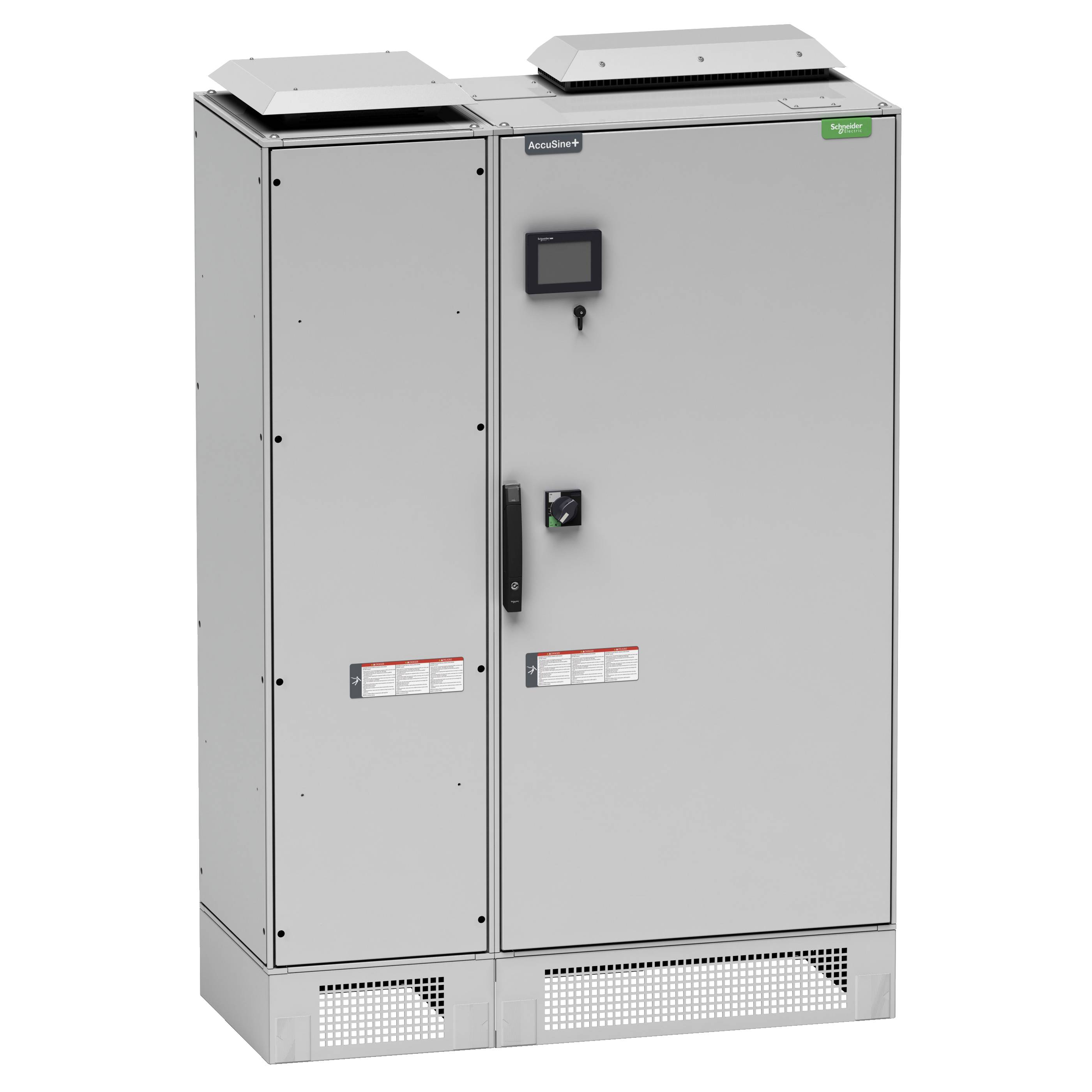

Schneider Electric PCSP235D6IP31 PCSP235D6IP31 Line filter (L x W x H) 600 x 1400 x 2100 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Line filter
Mounting type
Free-standing
Length
600 mm
Width
1400 mm
Technical specifications
- Packaging type
Piece
- Product type
Line filter
- Mounting type
Free-standing
- Length
600 mm
- Width
1400 mm
- Height
2100 mm
- Manufacturer part #
PCSP235D6IP31
- Type
PCSP235D6IP31
- Content
1 pc(s)
- Dim
(L x W x H) 600 x 1400 x 2100 mm
1400.0 mm
2100.0 mm
Power quality
600.0 mm
3.0
AC
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3181885 Schneider Electric PCSP235D6IP31 PCSP235D6IP31 Line filter (L x W x H) 600 x 1400 x 2100 mm 1 pc(s) Piece
User & Safety Instructions 3181885 Schneider Electric PCSP235D6IP31 PCSP235D6IP31 Line filter (L x W x H) 600 x 1400 x 2100 mm 1 pc(s) Piece
Description
Active harmonics filter for applications in the heavy industry and under high demands. Rated current 235A, 480-600V, 50/60Hz, 244.2kVar at 600V, IP31. 10 modules in parallel operation possible (freely combinable), THDi and THDu setpoint can be set, compensation 2. - 51. Order. (HxWxD) 2100x1400x600 (mm), 757kg. 3-phase, with or without neutral conductor (no compensation of the neutral conductor). 144 mm QVGA TFT 64k-color touch-screen 10 modules in parallel operation possible (freely combinable), THDi and THDu setpoint can be set, compensation 2. - 51. ORDER, TT-, TN-C-, TN-S-, TN-C-S-, IT networks. Harmonic compensation. Stand housing, cable routing above and below, housing protection class IP31. CULUS (UL508, CSA 22.2 NR. 14), , ABS, DNV-GL, CNAS, RCM, EAC, RoHS, IBC and other local standards. EMC APPROVALS IEC/EN 61439-1, EN 61000-6-4 CLASS A, EN 61000-6-17. RAL7035 (gray). It is urgently necessary that the equipment can only be transported upright.
