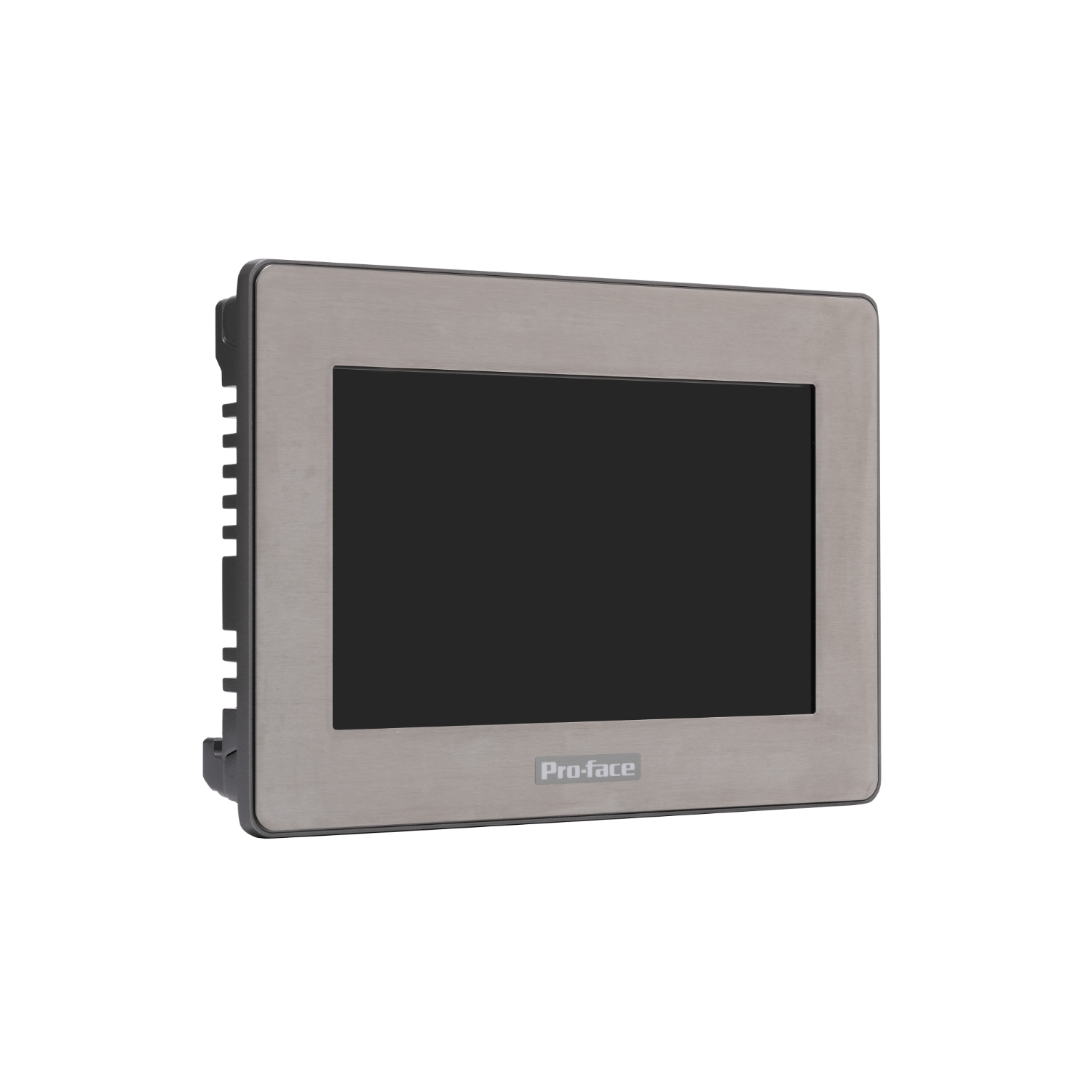

Schneider Electric PFXSP5490WAD PFXSP5490WAD Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,007.56 / piece)
€ 1,007.56
plus VAT.
14-day return policy included
Highlights & Details
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Product type
Expansion
- Height
148.6 mm
- Length
37 mm
- Width
203.6 mm
- Type
PFXSP5490WAD
- Manufacturer part #
PFXSP5490WAD
- Dim
(L x W x H) 37 x 203.6 x 148.6 mm
- Display
Yes
- Max. ambient temperature
65 °C
- Min. ambient temperature
-30 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2911521 Schneider Electric PFXSP5490WAD PFXSP5490WAD Expansion
Datasheet 2911521 Schneider Electric PFXSP5490WAD PFXSP5490WAD Expansion
User & Safety Instructions
User & Safety Instructions 2911521 Schneider Electric PFXSP5490WAD PFXSP5490WAD Expansion
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
