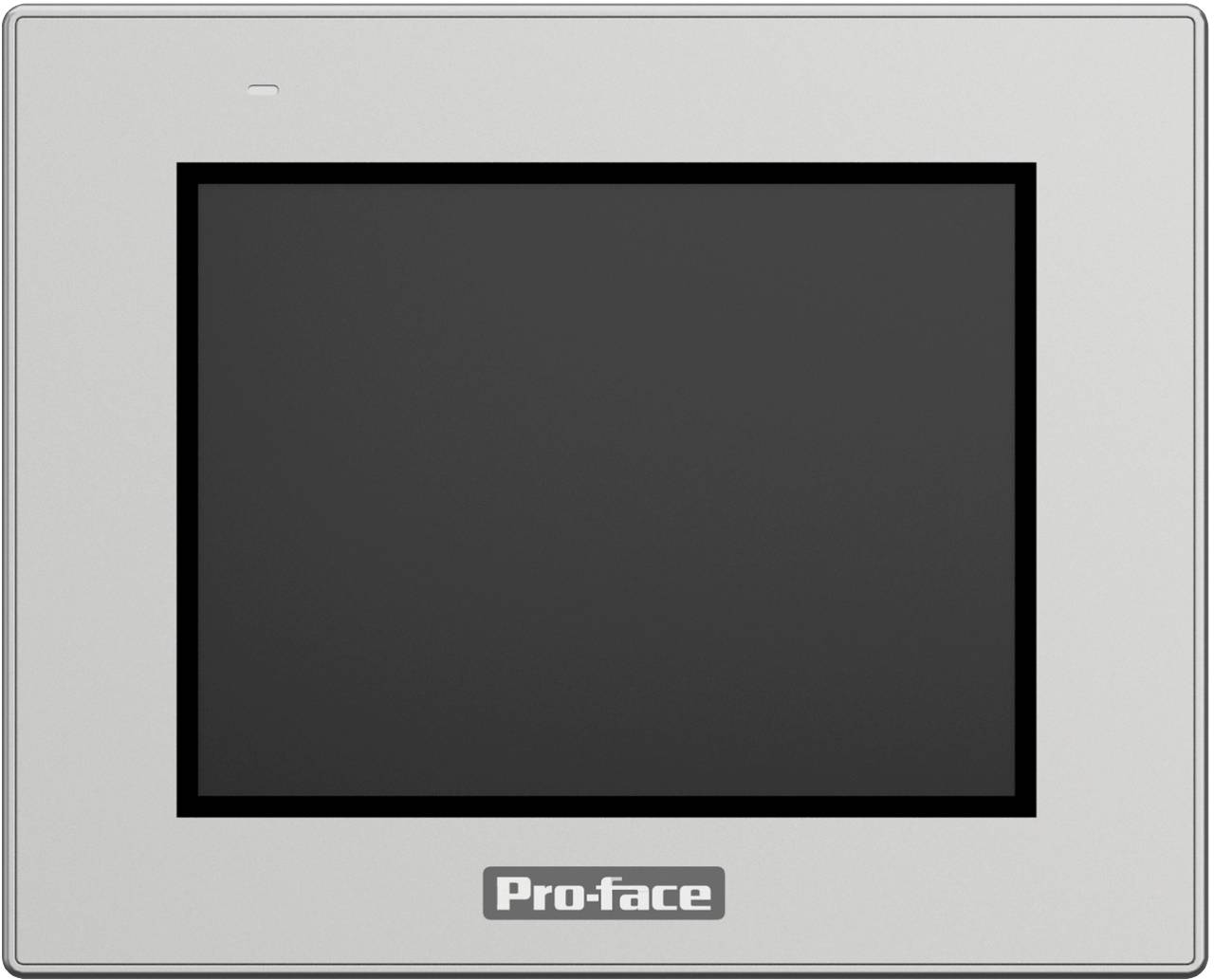

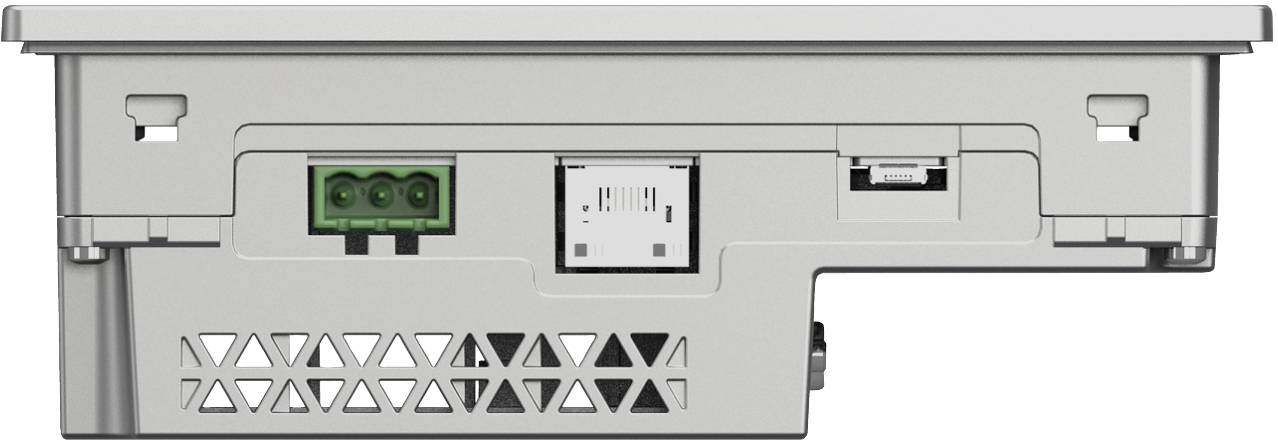

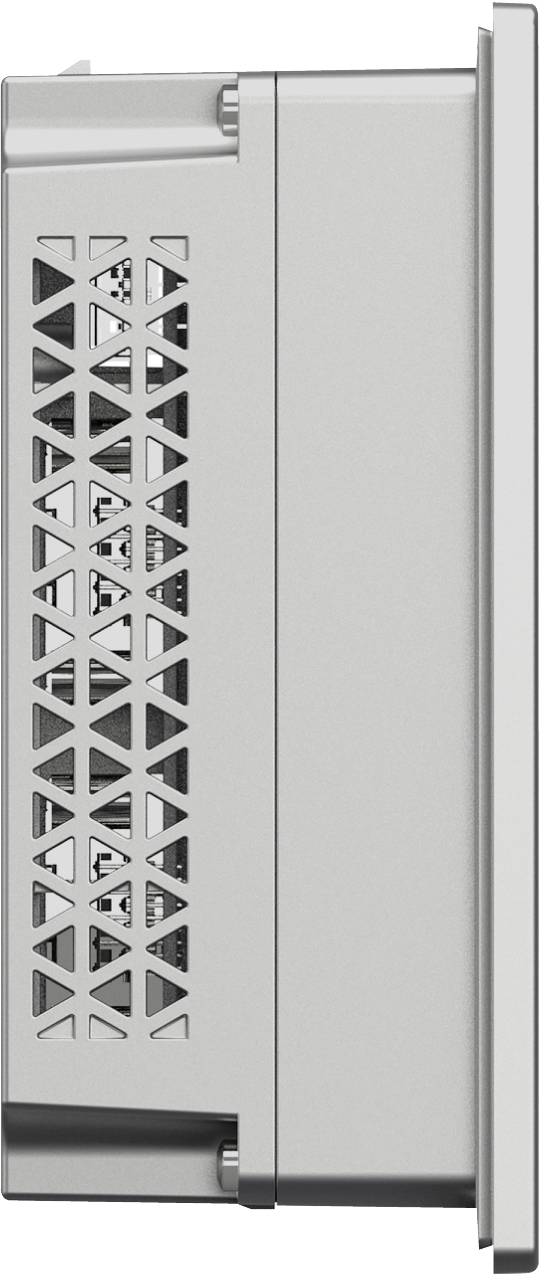

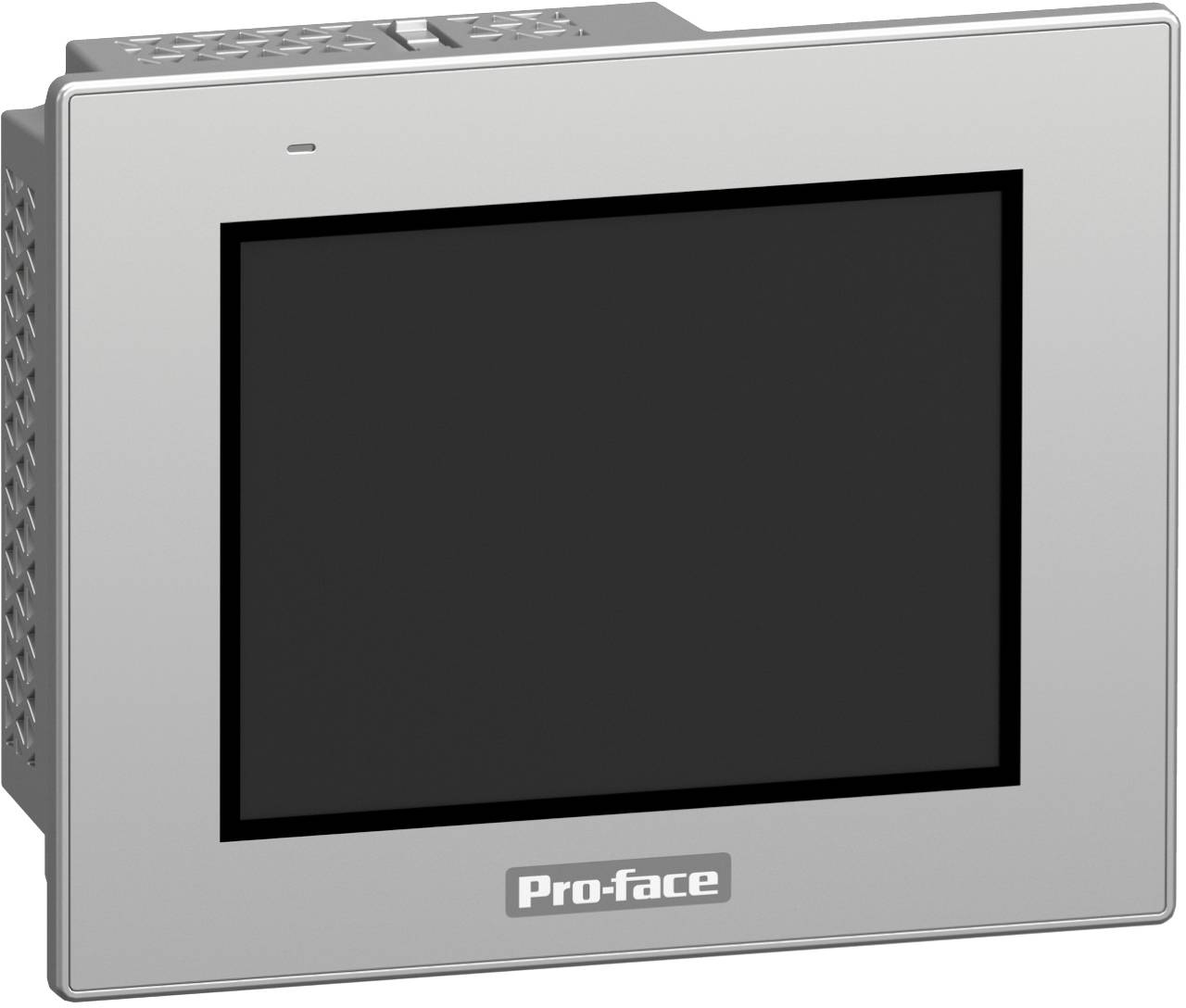

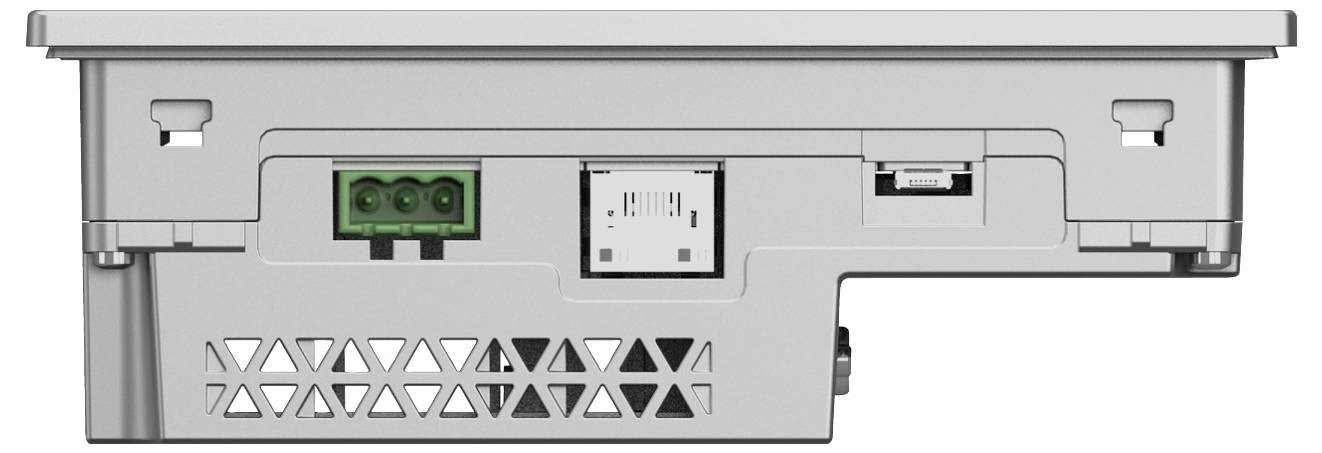

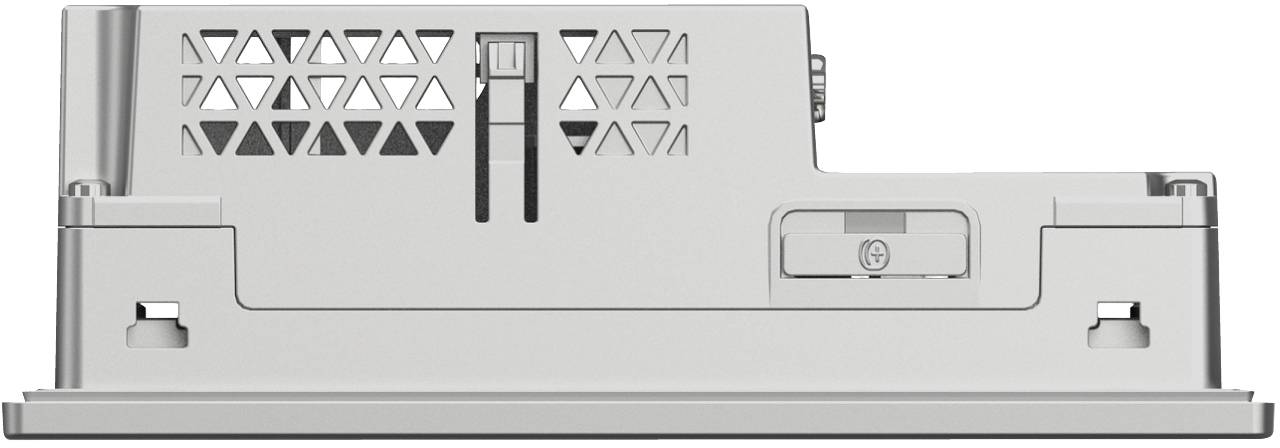

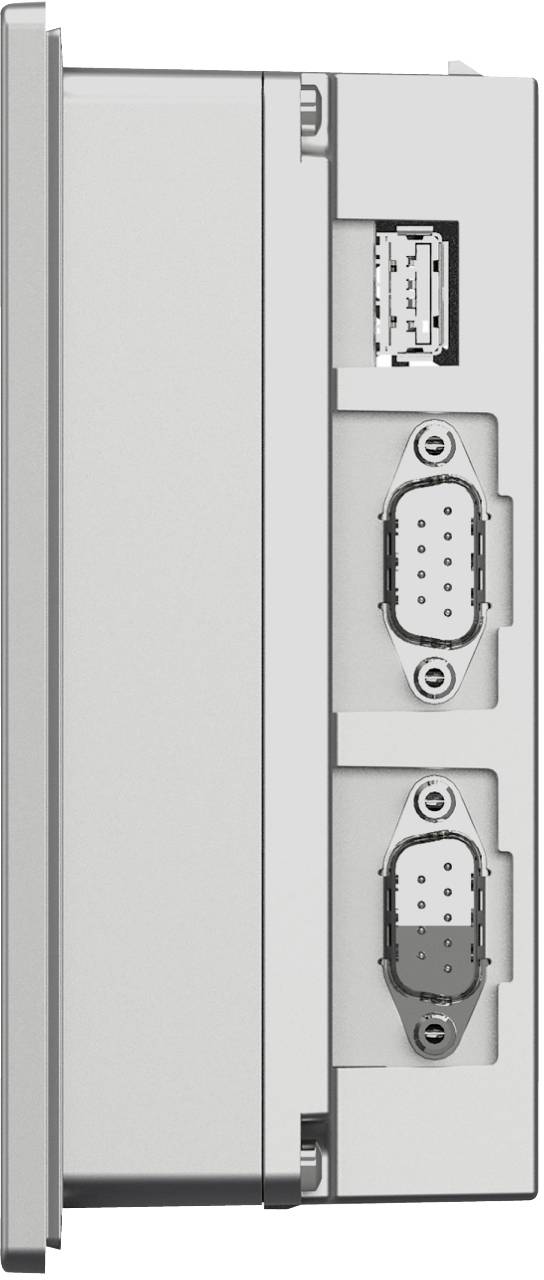

Schneider Electric PFXST6300TADE PFXST6300TADE PLC touch panel

This Basic HMI panel belongs to the series Pro-face ST-6000T. This touch-sensitive HMI consists of a front plate made of aluminum alloy with higher resolution and more colors. This HMI interface has a screen size of 5.4 inches with a page ratio of 4:3 with 262K colors and a resolution of 640 x 480 pixels (VGA). It is supported by GP-PROEX software for easy migration. It has a 800 MHz ARM Cortex-A8 CPU, 64MB as application memory, 320KB for the screen area and 64KB for the variable area as backup memory. This HMI ST-6000T supports 1x Ethernet port and 2. Ethernet connection via EZ-LAN adapter, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A and 1x USB 2.0 Micro-B connection. Dimensions are 137mm (width) x 170mm (height) x 58mm (depth) and weigh 0.80kg. This is for industries such as Semi-Con, electronics, battery, material transport and marine and also for GP4000TW model users who are used for minor upgrade or maintenance of their existing machine with the same application. It complies with standards such as EN (61000-6-4, 61131-2-2, 61000-6), UL 61010-2-201, CSA C22.2 No. 61010-2-201 and certifications such as CE, UKCA, UL/cUL, UL/cUL HazLoc (Class 1 div 2), China RoHS, KC, REACH. This product line meets the requirements of simple machine operators for good visualization, connectivity, cyber security with Pro-face Connect and cost-effective devices. The different protection types are IP65F, type 1, type 4X (for indoor use only), type 13 (on the front panel when properly installed in a casing).

This text is machine translated.
