Schneider Electric PFXST6500TADE PFXST6500TADE PLC touch panel

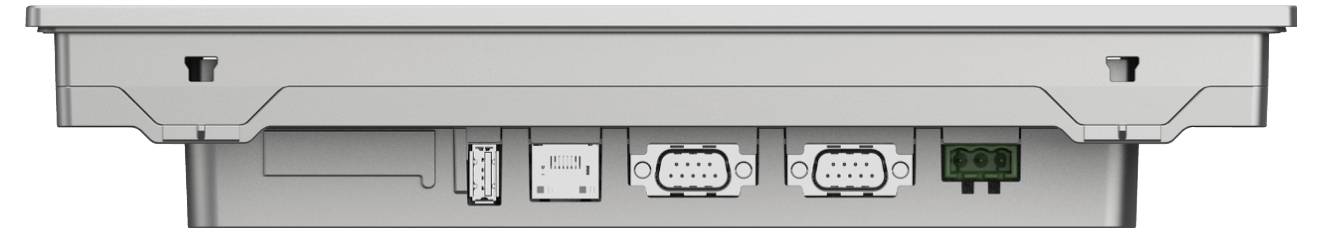

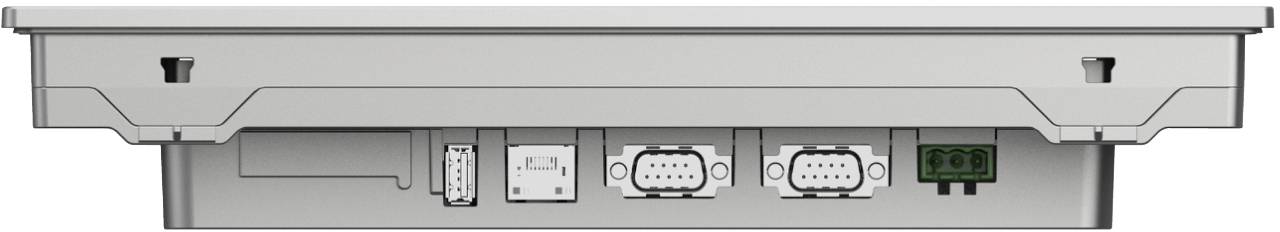

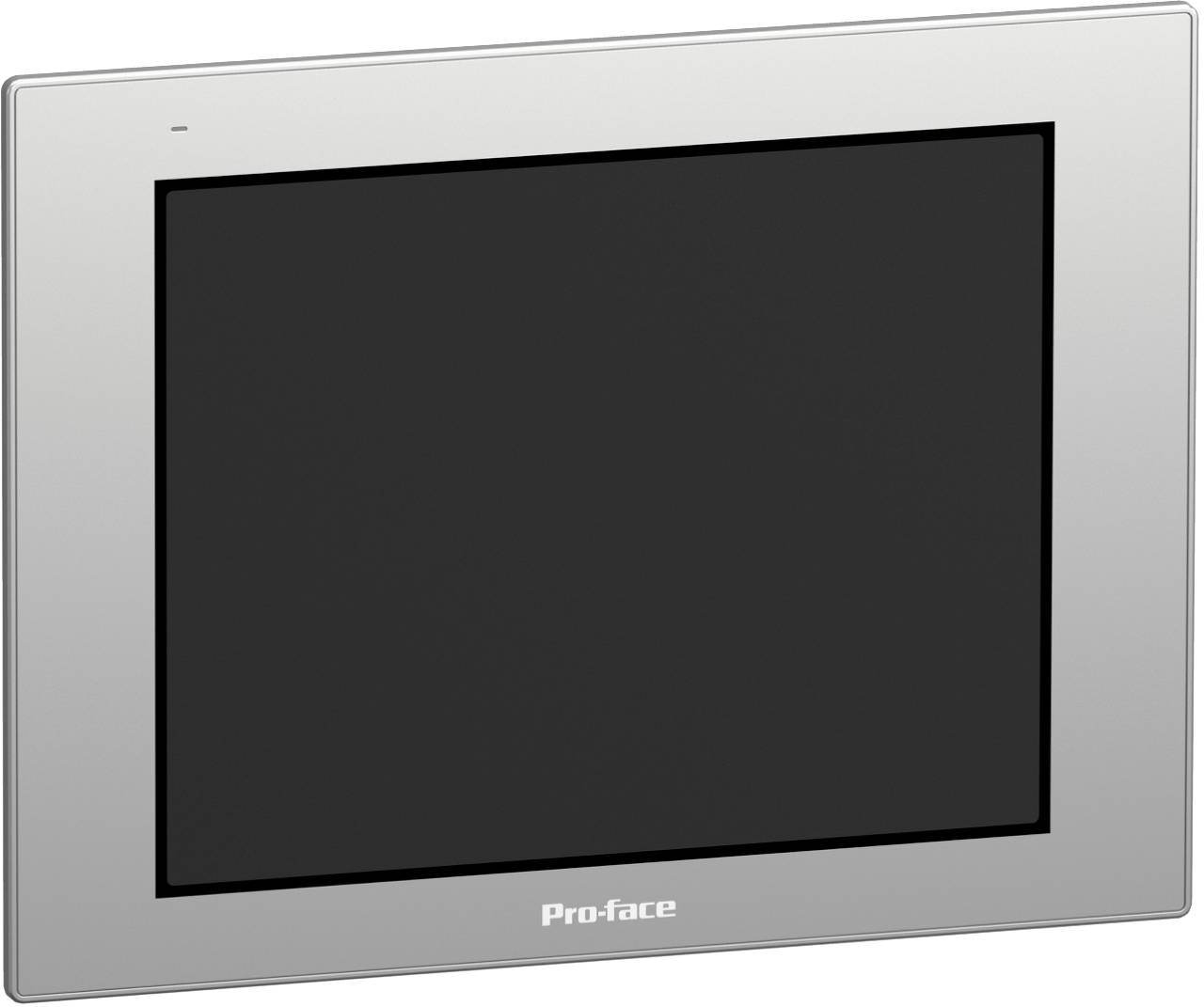

This Basic HMI panel belongs to the Pro-face ST-6000T product range. This resistive single touch HMI consists of an aluminum alloy with higher resolution and more color. This HMI interface has a screen size of 10.4 inches with an aspect ratio of 4:3, 16 million colors and a resolution of 800 x 600 pixels (SVGA). It has a 800 MHz ARM Cortex-A8 CPU, 64MB as application memory, 320KB for the screen area and 64KB for the variable area as backup memory. This HMI ST-6000T supports 1x Ethernet port and 2. Ethernet connection via EZ-LAN adapter, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A and 1x USB 2.0 Micro-B connection. It also supports SD cards with up to 32 GB. It has dimensions 241mm (width) x 315mm (height) x 56mm (depth) and weighs 1.8 kg. This is for industries such as Semi-Con, electronics, battery, material handling and marine and also for GP4000TW model users who are required for minor upgrade or maintenance of their existing machine with the same application. It complies with standards such as EN (61000-6-4, 61131-2-2, 61000-6), UL 61010-2-201, CSA C22.2 No. 61010-2-201 and certifications such as CE, UKCA, UL/cUL, UL/cUL HazLoc (class 1 div 2), China RoHS, KC, REACH. This product line is designed to meet the needs of simple machine operators for good visualization, connectivity, cyber security with Pro-face Connect and cost-effective devices. The different protection types are IP65F, type 1, type 4X (for indoor use only), type 13 (on the front panel when properly installed in a casing).

This text is machine translated.
