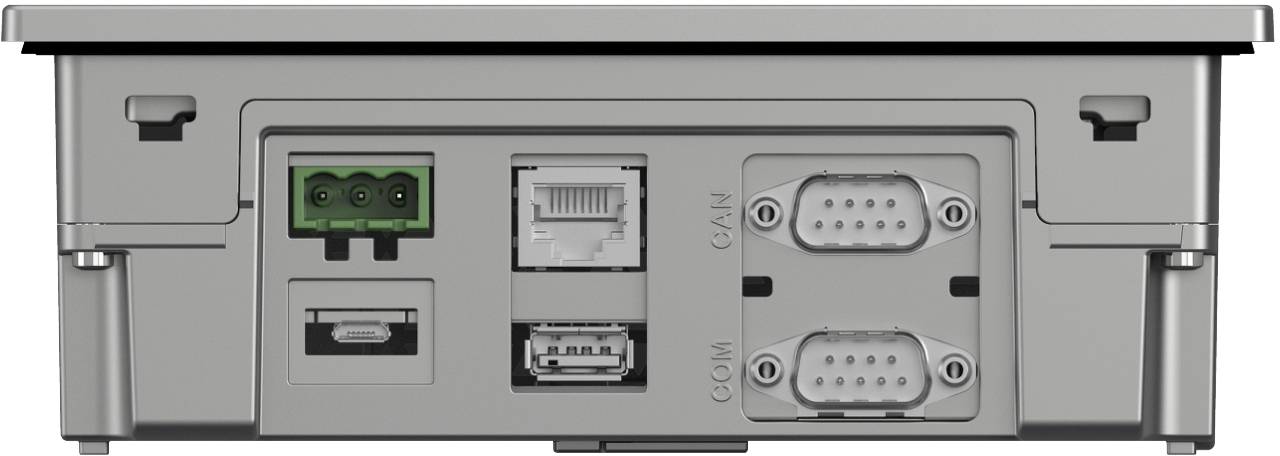

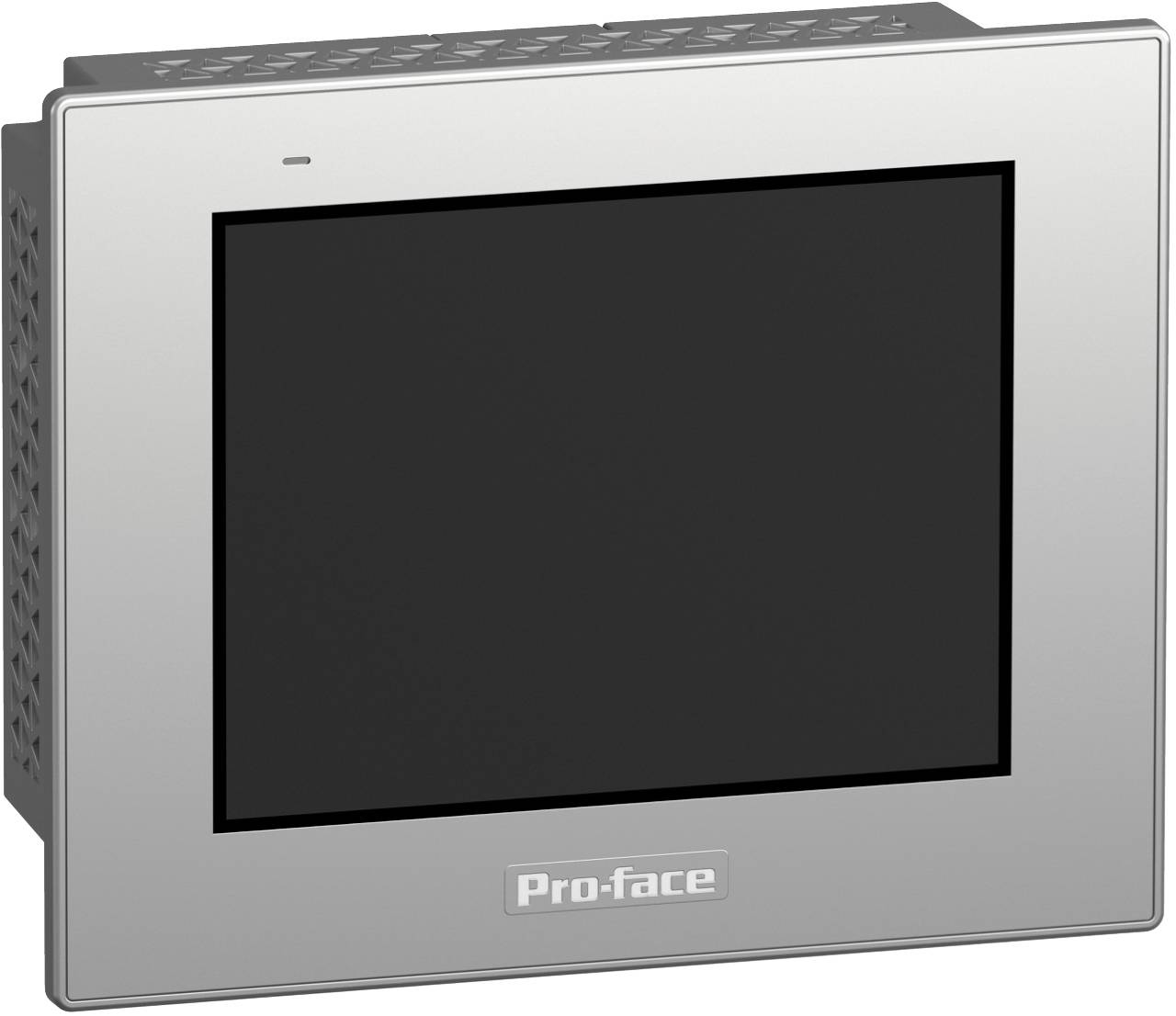

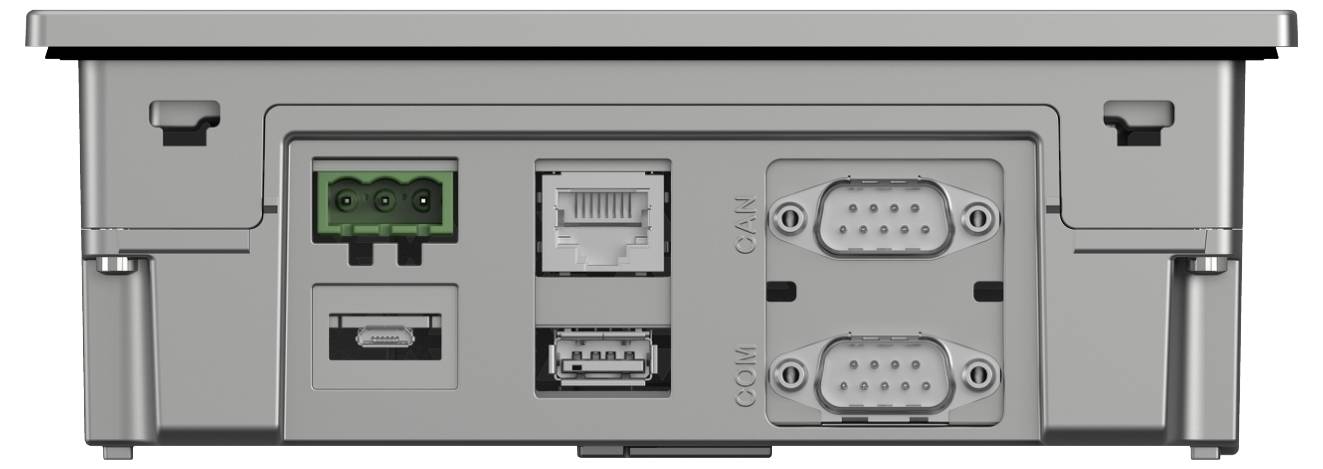

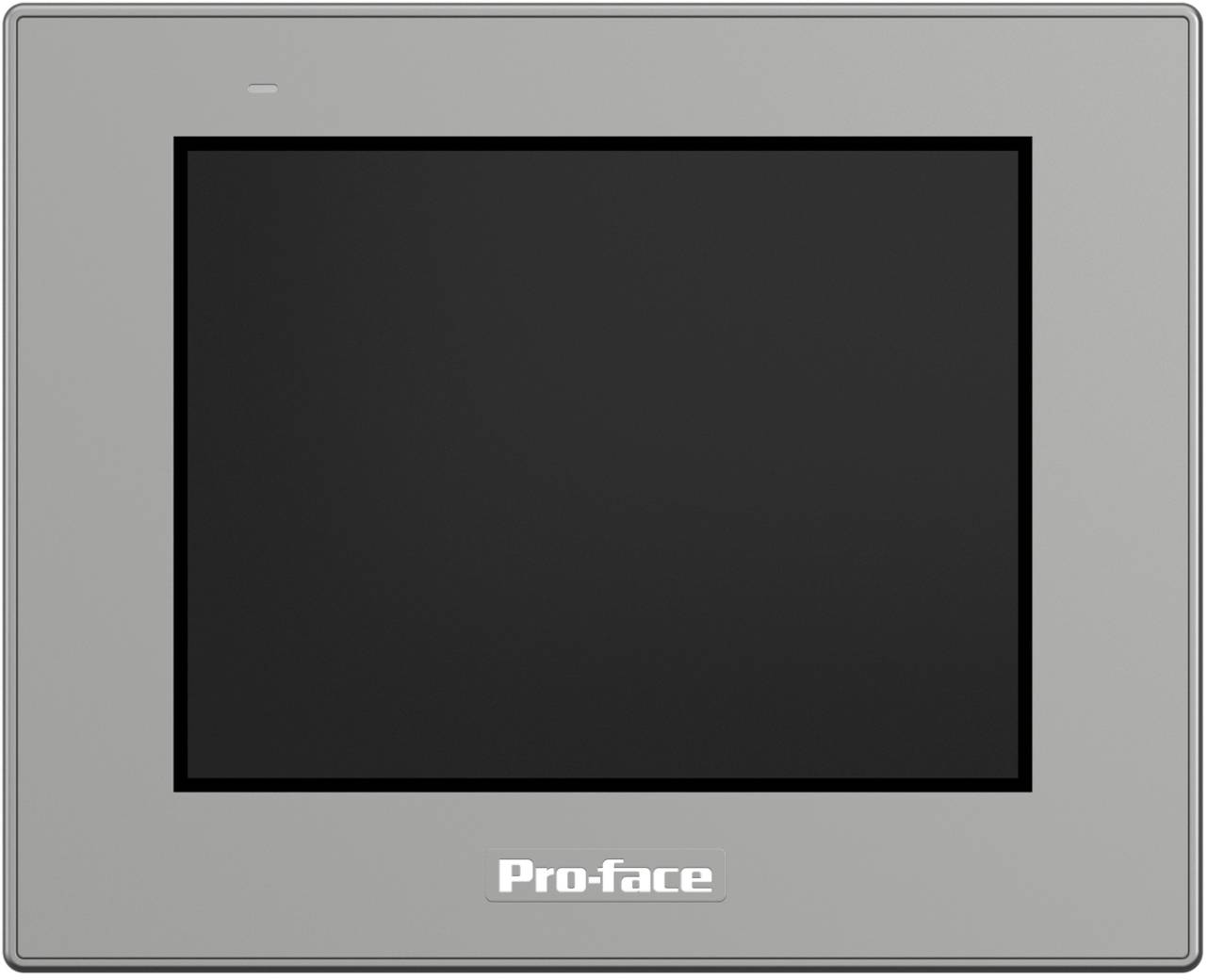

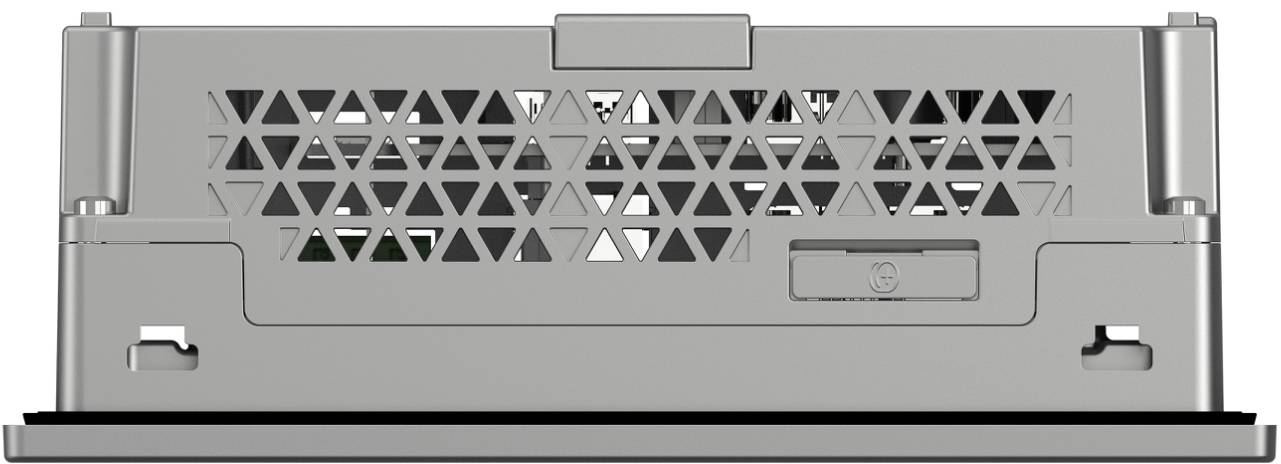

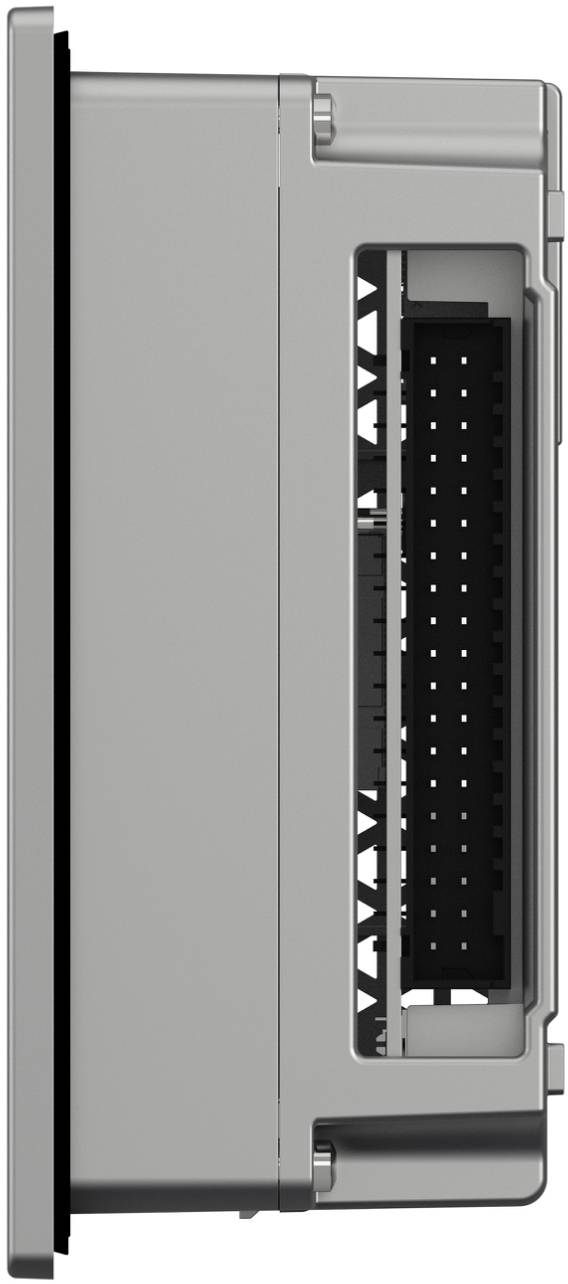

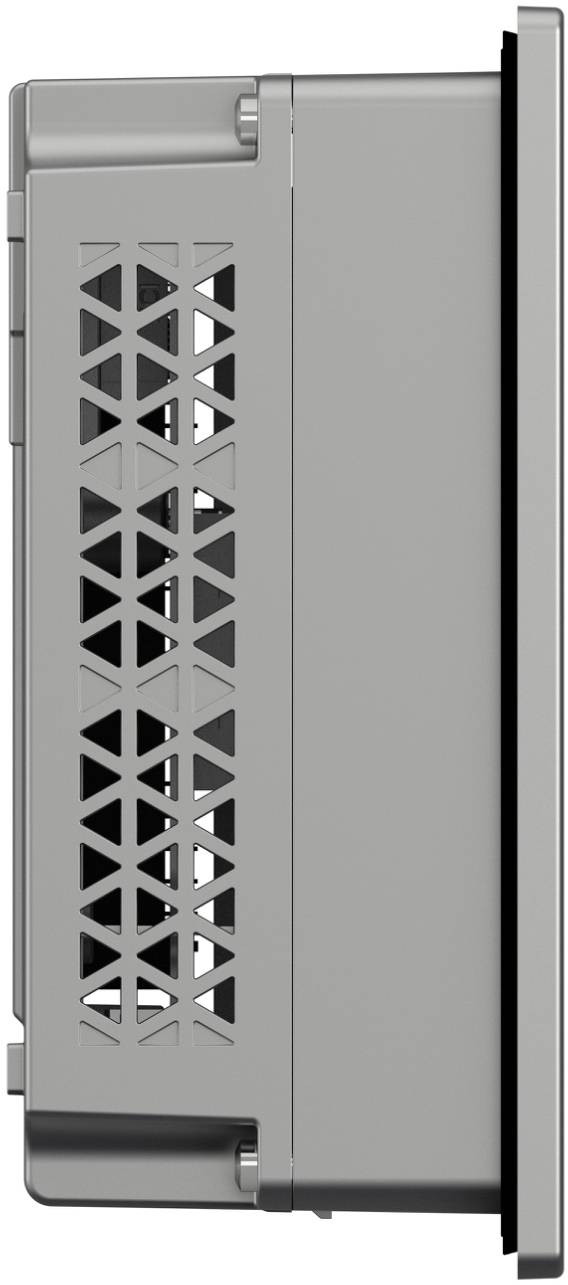

Schneider Electric PFXSTC6300TADDCE PLC touch panel 24 V DC

This product belongs to the Pro-face Basic HMI product series with the STC6000 controller. It is a hybrid HMI with control functions and digital sinking outputs. It has a 5.7 inch color TFT LCD with a resolution of 640 x 480 pixels (VGA) and 262K colors. The touch panel is a single-touch resistive film (analogue). The combination of integrated PLC functionality with an operator interface in a single software and hardware delivers unmatched space savings and technical efficiency. The application can be programmed with the software GP-Pro EX easily and almost without programming. The screen displays text messages and graphical objects, and displays graphs, controls, and configuration of data. It is equipped with 64 MB of application memory and 320 KB backup memory. It possesses 1x RS-232C/RS-422/RS-485 connection, 1x host connection, 1x micro-B USB connection, 1x Ethernet connection, 1x DiO interface (16 IN, 16 OUT), 1x expansion module interface and 1x CANopen connection. Dimensions are 170 mm (width) x 137 mm (height) x 60 mm (depth) and the weight is 0.8 kg. This product works with a power consumption of 11.3 W and a nominal voltage of 24 V DC. It is Ideal for optimized information supply and communication in the areas of material processing, food & amp; beverages, packaging, etc. It complies with the standards UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for industrial control units. It is also certified according to UL 121201 and CSA C22.2 No 213 for use in hazardous (classified) Class I, Division 2 and IECEx/ATEX for use in Zone 2 Gas/Zone 22 Dust, RCM, KC and EAC.
