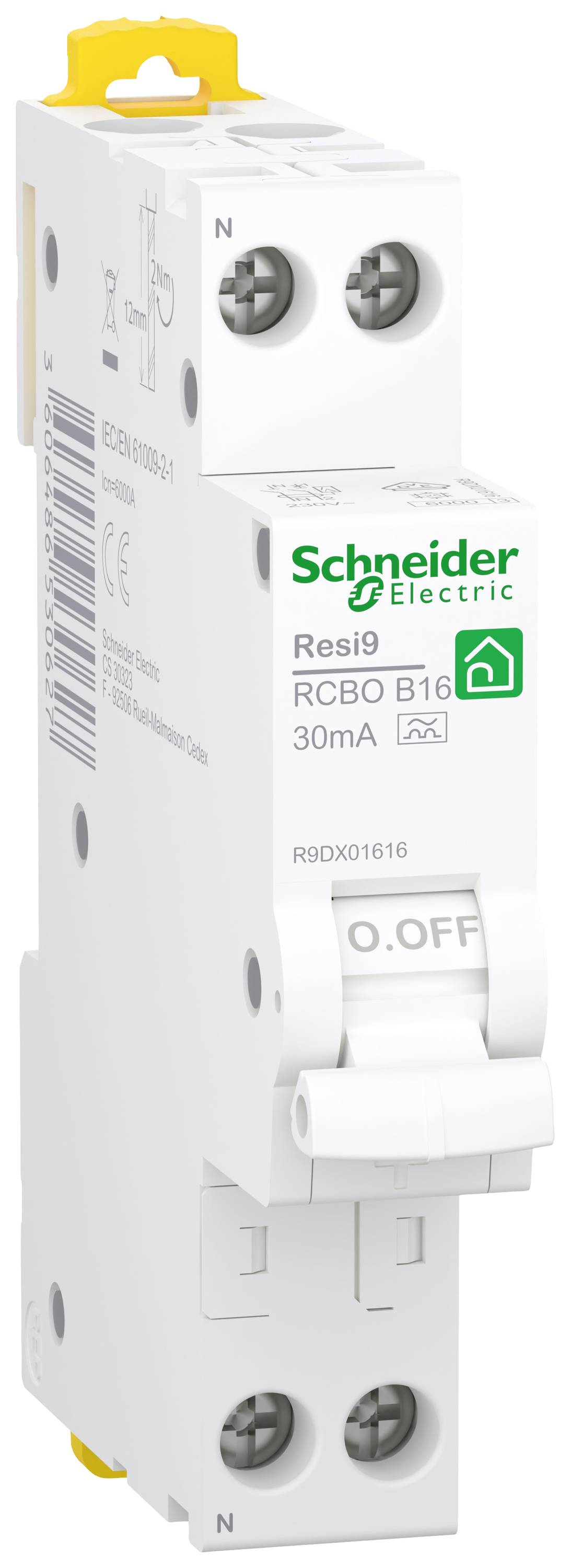

Schneider Electric R9DX01616 RCCB
EAN:
Part number:
Item no:
Product type
RCCB
Content
2 pc(s)
Voltage type
AC
Built-in depth
60.5 mm
Rated current
16 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Content
2 pc(s)
AC
60.5 mm
16 A
230 V
B
400 V
0.03 A
A
0.25 kA
3
3
2
1
3.5 W
50 Hz
IP20
1
TRUE
1-16.0 mm²
1-10.0 mm²
TRUE
-25-40.0 °C
FALSE
2
FALSE
Undelayed
Documents & Downloads
Datasheet
Datasheet 3304615 Schneider Electric R9DX01616 RCCB
User & Safety Instructions
User & Safety Instructions 3304615 Schneider Electric R9DX01616 RCCB
Description
FI/LS-switch Resi9. 1 pin + N, 16A, 1TE width (18 mm). B characteristic, nominal fault current 30 mA, type A, rated breaking capacity 6kA, according to EN/IEC 61009-1. Operating voltage (Ue) 230V AC, operating frequency 50 Hz, neutral position left. RCCB with integrated circuit breaker. Mechanical red indicator for fault triggering of the LS switch and spatter-proof mechanical red indicator for fault current tripping of the FI circuit-breaker on the front side of the device. Colour tone RAL 9003.
