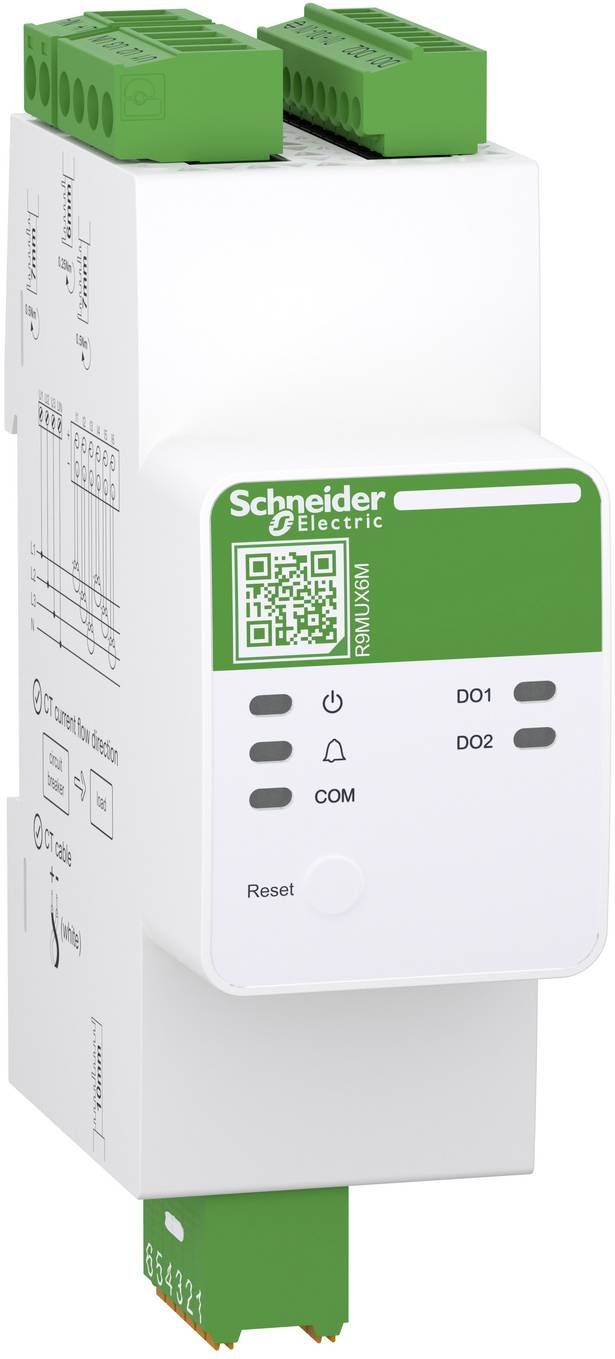

Schneider Electric R9MUX6M R9MUX6M Energy logger 1 pc(s)
EAN:
Part number:
Item no:
Product type
Energy logger
Dim
(W x H x D) 36 x 113 x 70 mm
Type
Transformer
Width
36 mm
Height
113 mm
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
14-day return policy included
Technical specifications
- Display type: Digital
- Execution of the interface: ModBus
- Width in division units: 2
- Energy type: Effective power
- Calibrated: Yes
- Suitable for: Cover / delivery
- Accuracy class B
- Pulse type D0
- Impulse output: Electrical
- Power consumption: 3 W
- Maximum current (Imax): 250 A.
- With lock code: No.
- Mounting type: REG
- Nominal voltage (Un) L-L 304-456 V
- Nominal voltage (Un) N-L 100-240 V
- Nominal current (In) 80 A
- Polarity: 4-conductor
- Return stop: No.
- Protection class (NEMA): 2
- Rate version: Single tariff
- Approval: National
- Meter type: Electronic
- Product type
Energy logger
- Dim
(W x H x D) 36 x 113 x 70 mm
- Type
Transformer
- Width
36 mm
- Height
113 mm
- Type
R9MUX6M
- Depth
70 mm
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3755970 Schneider Electric R9MUX6M R9MUX6M Energy logger 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3755970 Schneider Electric R9MUX6M R9MUX6M Energy logger 1 pc(s)
Description
The Resi9 energy sensor universal in combination with the corresponding current transformers is an energy meter for single and three-phase circuits. The measurement is therefore carried out via an additional connected Resi9 current transformer with 80A, 160A or 250A. It can be connected to a higher-level system thanks to the Modbus serial communication protocol. In combination with our logic controllers, the Wiser for KNX and spaceLYnk, energy measurement can easily be applied in KNX systems. Up to 6 current transformers can be connected to an energy sensor. An energy sensor, on the other hand, only requires 1 Modbus addresses so that up to 15 energy sensors can be used depending on the controller. The device measures bidirectional energy, i.e. both produced and supplied active energy (kWh) are recorded. In addition the device has two digital outputs e.g. for the generation of control signals - impulse width - 0 - 9999 ms. Nominal voltage: AC 100-240 V, 50/60 Hz, or DC 80-265 V. Loss rating less than 5 VA AC: Less than 3 W DC. Operating temperature is -25°C to +60°C. The protection class is IP40 front display, IP20 casing. The dimensions (W x L x H) 36 x 70 x 114.6 mm.
