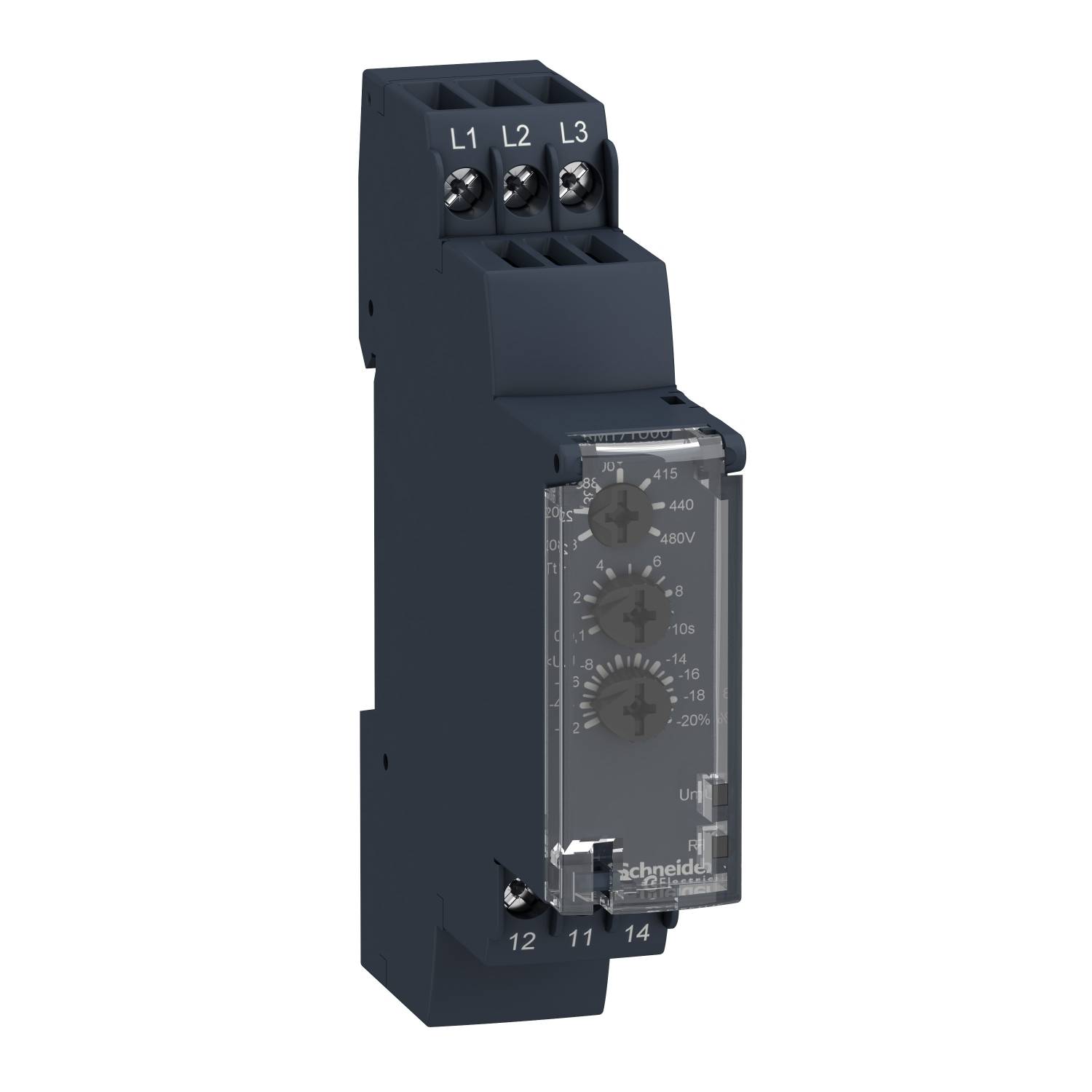

Schneider Electric RM17TA00 RM17TA00 Network monitor No. of relay outputs: 1
EAN:
Part number:
Item no:
Product type
Network monitor
No. of relay outputs
1
Type
RM17TA00
Probe inputs
Messkreis 208-480 VAC (50-60 Hz)
Dim
(W x H) 17.5 mm x 90 mm
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14-day return policy included
Technical specifications
- Type
RM17TA00
- Product type
Network monitor
- No. of relay outputs
1
- Probe inputs
Messkreis 208-480 VAC (50-60 Hz)
- Dim
(W x H) 17.5 mm x 90 mm
- Weight
0.1012 kg
- Width
17.5 mm
- Height
90 mm
17.5
90 mm
72 mm
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
Screw connection
10 s
0.1 s
AC
0
0
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2915007 Schneider Electric RM17TA00 RM17TA00 Network monitor No. of relay outputs: 1
Datasheet 2915007 Schneider Electric RM17TA00 RM17TA00 Network monitor No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2915007 Schneider Electric RM17TA00 RM17TA00 Network monitor No. of relay outputs: 1
Information
Information 2915007 Schneider Electric RM17TA00 RM17TA00 Network monitor No. of relay outputs: 1
Description
Zelio controller This network monitoring relay monitors three-phase networks for phase sequence, phase failure and phase asymmetry (5-15%). For indication a relay changer is available that can be loaded up to 5 A. In case of phase error, the output drops off without delay, during asymmetry a switch-off delay can be set. Settings are made via control elements on the front that can be protected against changes using a transparent cover. Two LEDs indicate the status. The width is 17.5 mm and it is installed on the DIN rail. Supply from the measurement circuit 208-480 VAC (50-60 Hz).
