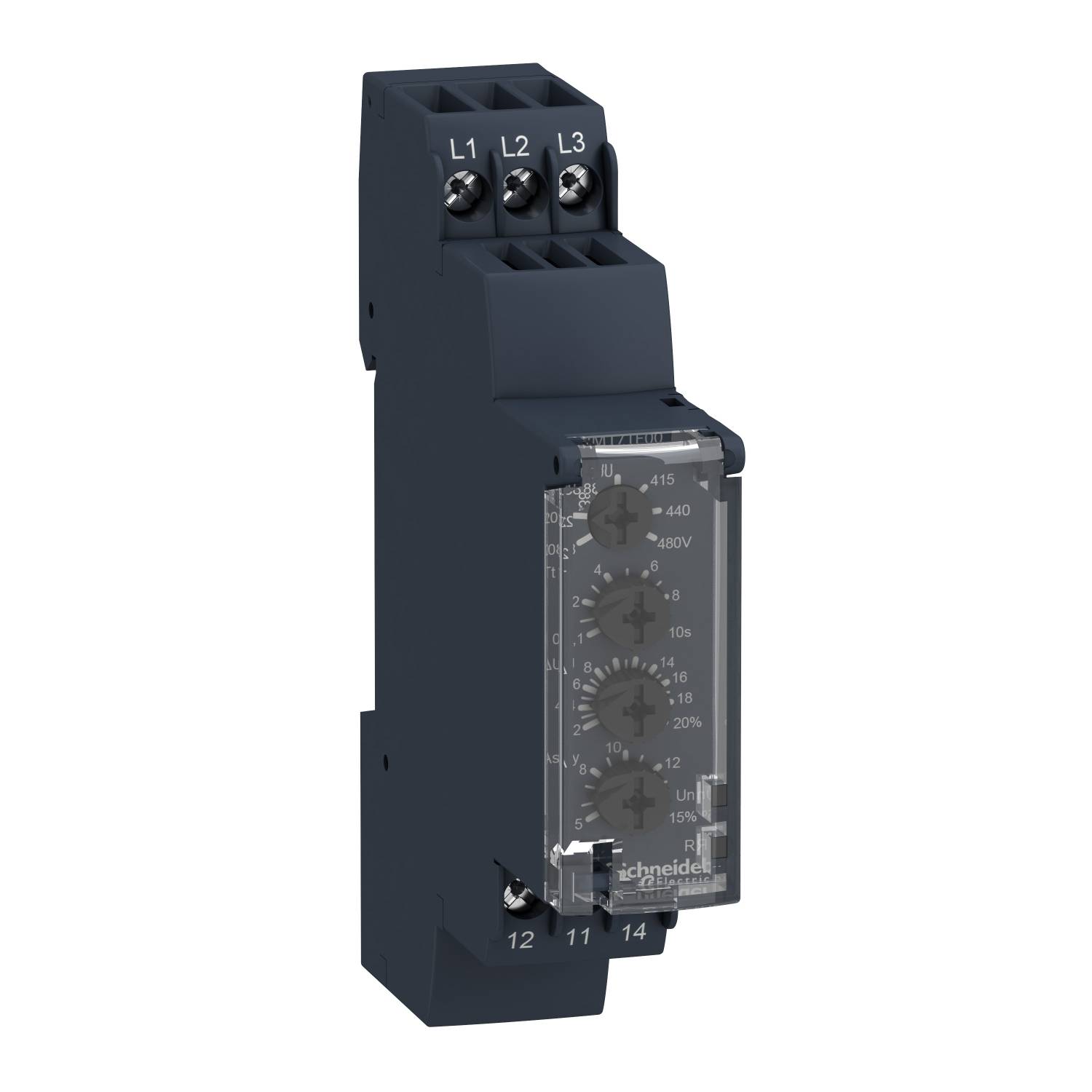

Schneider Electric RM17TE00 RM17TE00 Network monitor No. of relay outputs: 1
EAN:
Part number:
Item no:
Product type
Network monitor
No. of relay outputs
1
Type
RM17TE00
Probe inputs
Drehstromnetze auf Phasenfolge. Phasenausfall. Phasenasymmetrie (5-15%). Über- und Unterspannung im Fenstermodus (2-20%)
Dim
(W x H) 17.5 mm x 90 mm
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Line monitoring, phase sequence, failure, asymmetric, over/under span, 183-528 VAC
Technical specifications
- Type
RM17TE00
- Product type
Network monitor
- No. of relay outputs
1
- Probe inputs
Drehstromnetze auf Phasenfolge. Phasenausfall. Phasenasymmetrie (5-15%). Über- und Unterspannung im Fenstermodus (2-20%)
- Dim
(W x H) 17.5 mm x 90 mm
- Weight
0.1022 kg
- Width
17.5 mm
- Height
90 mm
17.5
90 mm
72 mm
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
Screw connection
10 s
0.1 s
AC
0
0
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2915008 Schneider Electric RM17TE00 RM17TE00 Network monitor No. of relay outputs: 1
Datasheet 2915008 Schneider Electric RM17TE00 RM17TE00 Network monitor No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2915008 Schneider Electric RM17TE00 RM17TE00 Network monitor No. of relay outputs: 1
Information
Information 2915008 Schneider Electric RM17TE00 RM17TE00 Network monitor No. of relay outputs: 1
Description
Zelio controller This network monitoring relay monitors three-phase networks for phase sequence, phase failure, phase asymmetry (5-15%), over and undervoltage in window mode (2-20%). For indication a relay changer is available that can be loaded up to 5 A. In case of phase error, the output drops off without delay, during asymmetry and voltage error a shutdown delay can be set. Settings are made via control elements on the front that can be protected against changes using a transparent cover. Two LEDs indicate the status. The width is 17.5 mm and it is installed on the DIN rail. Supply from the measurement circuit 208-480 VAC (50-60 Hz).
