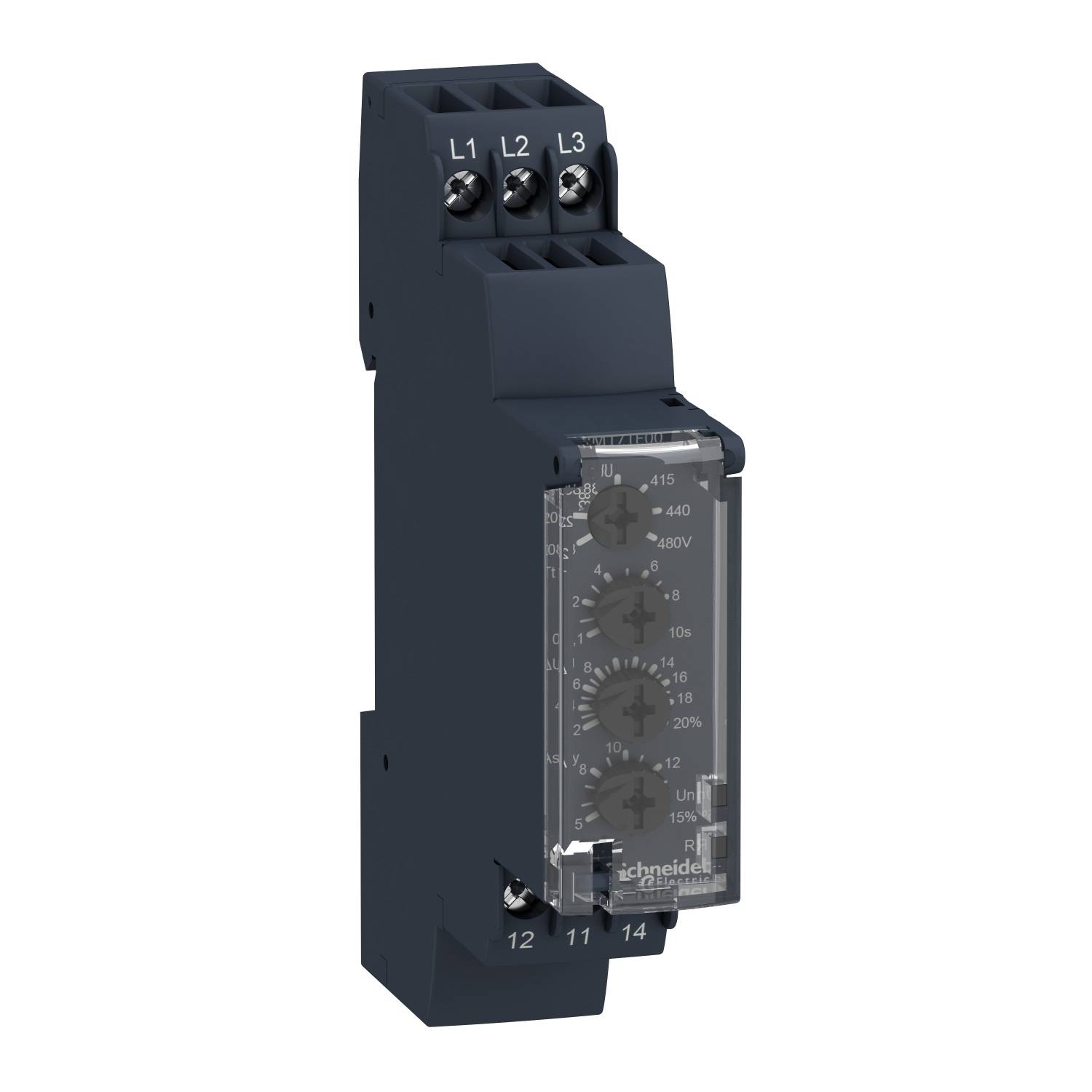

Schneider Electric RM17UAS15 RM17UAS15 Voltage monitoring relay No. of relay outputs: 1
EAN:
Part number:
Item no:
Product type
Voltage monitoring relay
No. of relay outputs
1
Type
RM17UAS15
Probe inputs
einphasige Versorgungen 65-260 VAC/DC
Width
17.5 mm
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Type
RM17UAS15
- Product type
Voltage monitoring relay
- No. of relay outputs
1
- Probe inputs
einphasige Versorgungen 65-260 VAC/DC
- Width
17.5 mm
17.5
90 mm
72 mm
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
TRUE
TRUE
AC/DC
Screw connection
10 s
0.1 s
AC/DC
0
0
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914389 Schneider Electric RM17UAS15 RM17UAS15 Voltage monitoring relay No. of relay outputs: 1
Datasheet 2914389 Schneider Electric RM17UAS15 RM17UAS15 Voltage monitoring relay No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2914389 Schneider Electric RM17UAS15 RM17UAS15 Voltage monitoring relay No. of relay outputs: 1
Information
Information 2914389 Schneider Electric RM17UAS15 RM17UAS15 Voltage monitoring relay No. of relay outputs: 1
Description
Zelio controller This voltage monitoring relay monitors single-phase supplies 65-260 VAC/DC (50-60 Hz) for exceeding or falling below an adjustable limit. For indication a relay changer is available that can be loaded up to 5 A. An error memory can be selected and allows you to report the error up to reset even in the case of short-term faults. The limit value, the switching hysteresis and a switch-off delay are adjustable. Settings are made via control elements on the front that can be protected against changes using a transparent cover. Two LEDs indicate the status. The power supply of the device is taken from the monitored voltage (nominal voltage range 110-240 VAC/DC, 50-60 Hz). The width is 17.5 mm and it is installed on the DIN rail.
