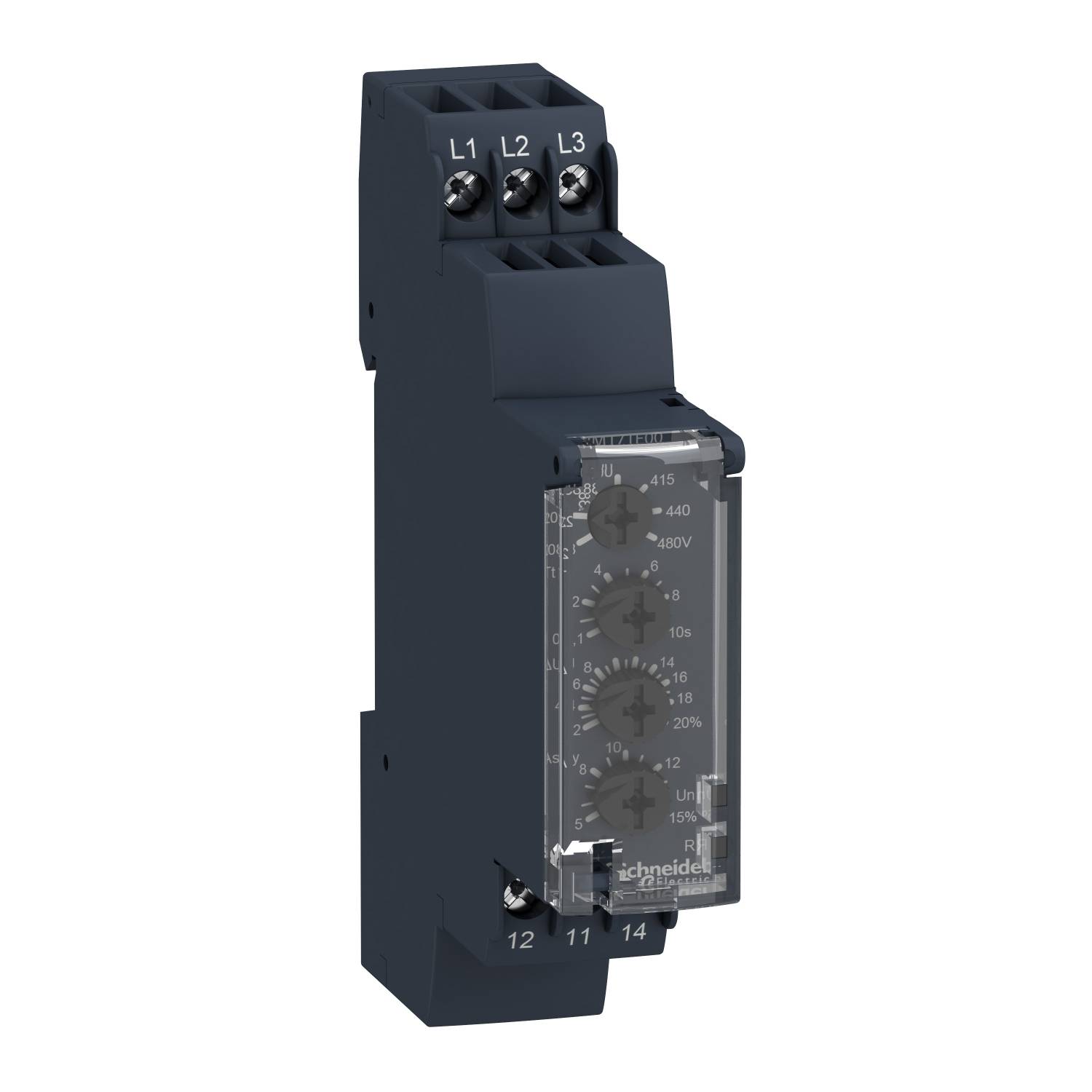

Schneider Electric RM17UB310 RM17UB310 Voltage monitoring relay No. of relay outputs: 1
EAN:
Part number:
Item no:
Product type
Voltage monitoring relay
No. of relay outputs
1
Type
RM17UB310
Probe inputs
dreiphasige Versorgungen 208-480 VAC (50-60 Hz) auf Phasenausfall. sowie Über- und Unterschreitung eines einstellbaren Grenzwertes
Width
17.5 mm
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Type
RM17UB310
- Product type
Voltage monitoring relay
- No. of relay outputs
1
- Probe inputs
dreiphasige Versorgungen 208-480 VAC (50-60 Hz) auf Phasenausfall. sowie Über- und Unterschreitung eines einstellbaren Grenzwertes
- Width
17.5 mm
17.5
90 mm
72 mm
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
FALSE
FALSE
FALSE
AC/DC
Screw connection
0.5 s
30 s
0.3 s
AC/DC
0
0
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914392 Schneider Electric RM17UB310 RM17UB310 Voltage monitoring relay No. of relay outputs: 1
Datasheet 2914392 Schneider Electric RM17UB310 RM17UB310 Voltage monitoring relay No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2914392 Schneider Electric RM17UB310 RM17UB310 Voltage monitoring relay No. of relay outputs: 1
Information
Information 2914392 Schneider Electric RM17UB310 RM17UB310 Voltage monitoring relay No. of relay outputs: 1
Description
Zelio controller This voltage monitoring relay monitors three-phase supplies 208-480 VAC (50-60 Hz) for phase failure and overshooting and falling below an adjustable threshold. For indication a relay changer is available that can be loaded up to 5 A. The two limit values and a switch-off delay can be set. Settings are made via control elements on the front that can be protected against changes using a transparent cover. Two LEDs indicate the status. The power supply of the device is taken from the measurement voltage. The width is 17.5 mm and it is installed on the DIN rail.
