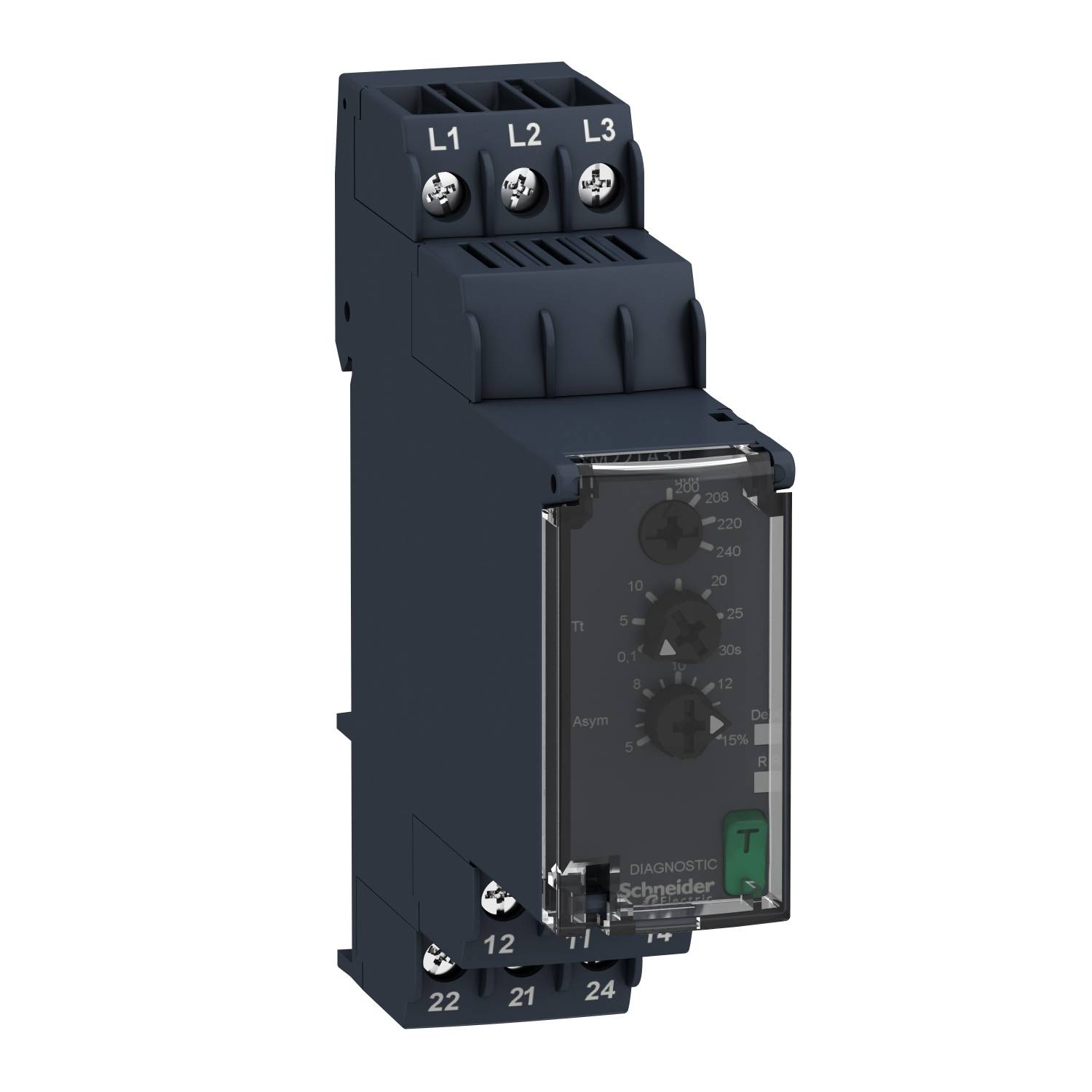

Schneider Electric RM22TA31 RM22TA31 Network monitor No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Network monitor
No. of relay outputs
2
Type
RM22TA31
Width
22.5 mm
Width
22.5
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Type
RM22TA31
- Product type
Network monitor
- No. of relay outputs
2
- Width
22.5 mm
22.5
90 mm
73 mm
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
Screw connection
30 s
0.1 s
AC
2
0
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2914398 Schneider Electric RM22TA31 RM22TA31 Network monitor No. of relay outputs: 2
Datasheet 2914398 Schneider Electric RM22TA31 RM22TA31 Network monitor No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2914398 Schneider Electric RM22TA31 RM22TA31 Network monitor No. of relay outputs: 2
Information
Information 2914398 Schneider Electric RM22TA31 RM22TA31 Network monitor No. of relay outputs: 2
Description
Zelio controller This network monitoring relay monitors three-phase networks (200-240 VAC) for phase sequence, phase failure and phase asymmetry (5 to 15%). For indication, two relay changers are available, which can be loaded up to 8 A. The limit value is for the asymmetry and a switch-off delay can be set for the output. Settings are made via control elements on the front that can be protected against changes using a transparent cover. With the illuminated scale arrow the setting of the potentiometers can be clearly recognized even from a distance. The diagnostic switch on the front allows the output relays to be switched off to test the overall application. When the clear cover is closed, the diagnostic switch is automatically reset. Three LEDs indicate the status. The width is 22.5 mm and it is installed on the DIN rail. The supply is from the measuring circuit. The cable is connected via screw terminals.
