Schneider Electric RM22TU23 RM22TU23 Network monitor No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Network monitor
No. of relay outputs
2
Type
RM22TU23
Probe inputs
Drehstromnetze auf Phasenfolge. Phasenausfall und Unterspannung
Dim
(W x H) 22.5 mm x 90 mm
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Technical specifications
- Type
RM22TU23
- Product type
Network monitor
- No. of relay outputs
2
- Probe inputs
Drehstromnetze auf Phasenfolge. Phasenausfall und Unterspannung
- Dim
(W x H) 22.5 mm x 90 mm
- Weight
0.0990 kg
- Width
22.5 mm
- Height
90 mm
22.5
90 mm
73 mm
FALSE
TRUE
TRUE
TRUE
FALSE
FALSE
Screw connection
AC
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914403 Schneider Electric RM22TU23 RM22TU23 Network monitor No. of relay outputs: 2
Datasheet 2914403 Schneider Electric RM22TU23 RM22TU23 Network monitor No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2914403 Schneider Electric RM22TU23 RM22TU23 Network monitor No. of relay outputs: 2
Information
Information 2914403 Schneider Electric RM22TU23 RM22TU23 Network monitor No. of relay outputs: 2
Description

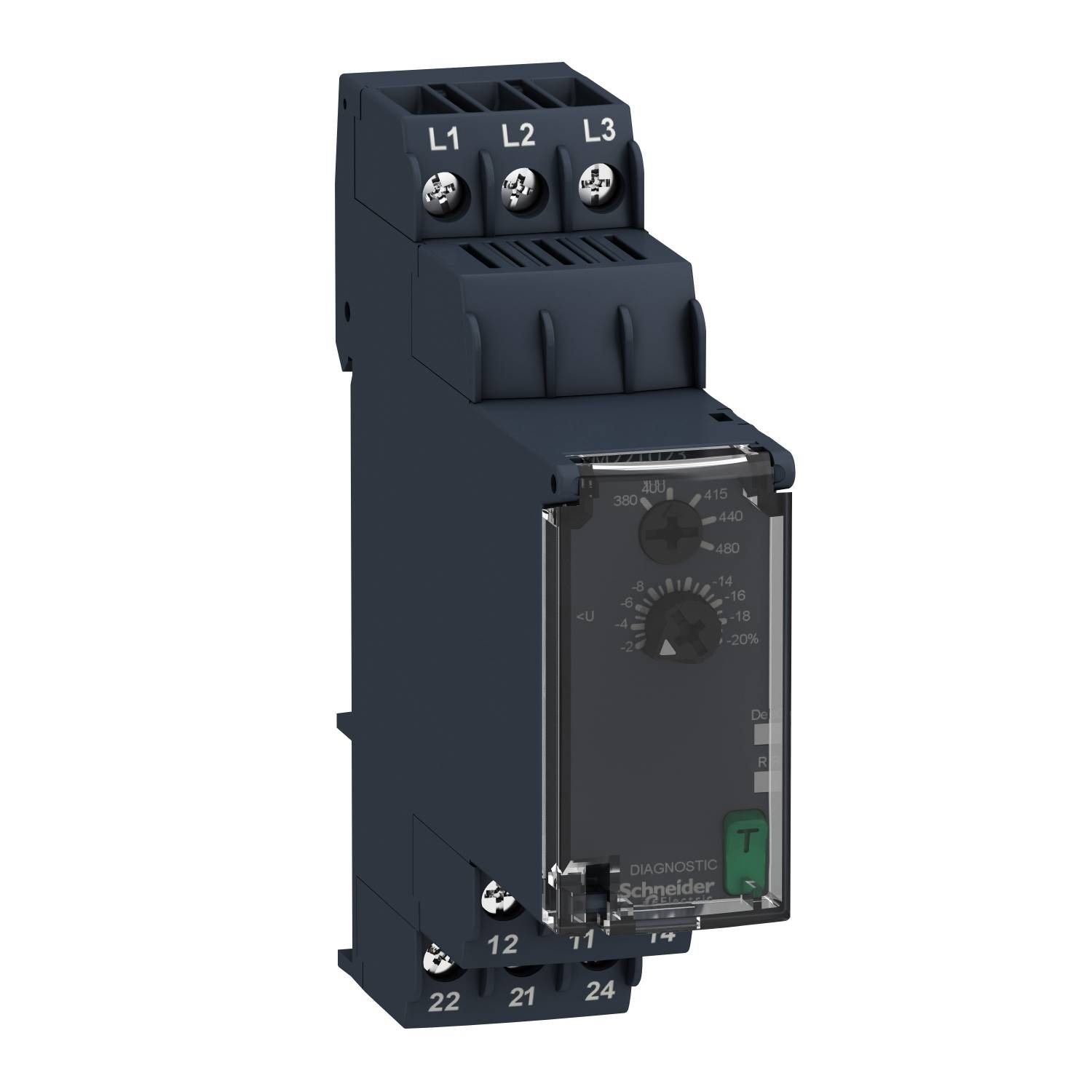

Zelio controller This network monitoring relay monitors three-phase current networks (380-480 VAC) for phase sequence, phase failure and undervoltage. For indication, two relay changers are available, which can be loaded up to 8 A. For undervoltage, the limit value can be set (-20--2%). Settings are made via control elements on the front that can be protected against changes using a transparent cover. With the illuminated scale arrow the setting of the potentiometers can be clearly recognized even from a distance. The diagnostic switch on the front allows the output relays to be switched off to test the overall application. When the clear cover is closed, the diagnostic switch is automatically reset. Three LEDs indicate the status. The width is 22.5 mm and it is installed on the DIN rail. The cable is connected via screw terminals.
