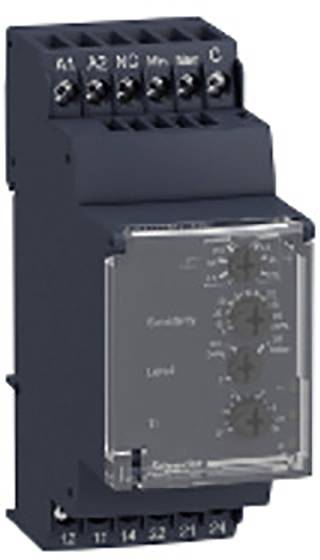

Schneider Electric RM35LM33MW RM35LM33MW Level relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Level relay
No. of relay outputs
2
Type
RM35LM33MW
Probe inputs
3 Elektrodeneingänge
Dim
(W x H) 35 mm x 90 mm
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Technical specifications
- Type
RM35LM33MW
- Product type
Level relay
- No. of relay outputs
2
- Probe inputs
3 Elektrodeneingänge
- Dim
(W x H) 35 mm x 90 mm
- Weight
0.134 kg
- Width
35 mm
- Height
90 mm
35
90 mm
72 mm
FALSE
FALSE
3
TRUE
Screw connection
5 s
0.1 s
5 s
0.1 s
Conductive
AC/DC
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914416 Schneider Electric RM35LM33MW RM35LM33MW Level relay No. of relay outputs: 2
Datasheet 2914416 Schneider Electric RM35LM33MW RM35LM33MW Level relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2914416 Schneider Electric RM35LM33MW RM35LM33MW Level relay No. of relay outputs: 2
Information
Information 2914416 Schneider Electric RM35LM33MW RM35LM33MW Level relay No. of relay outputs: 2
Description
Zelio controller This level relay monitors the level of conductive, non-flammable liquids (conductive measuring principle) as limit switches. It can also be used to control fluid levels in a 2-point control during filling and emptying. For this, additional conductive level electrodes are hung in the tank. The measuring principle makes it possible to distinguish between liquid and foam. For indication, two relay changers are present that can be loaded with up to 5 A. The limit value can be set for the resistance value (250 Ohm-1 MOhm) and a time delay for the relays. Settings are made via control elements on the front that can be protected against changes using a transparent cover. 3 LEDs indicate the status of the device The wide-voltage power supply (24-240 VAC/DC) enables a universal application. The cable is connected via screw terminals.
