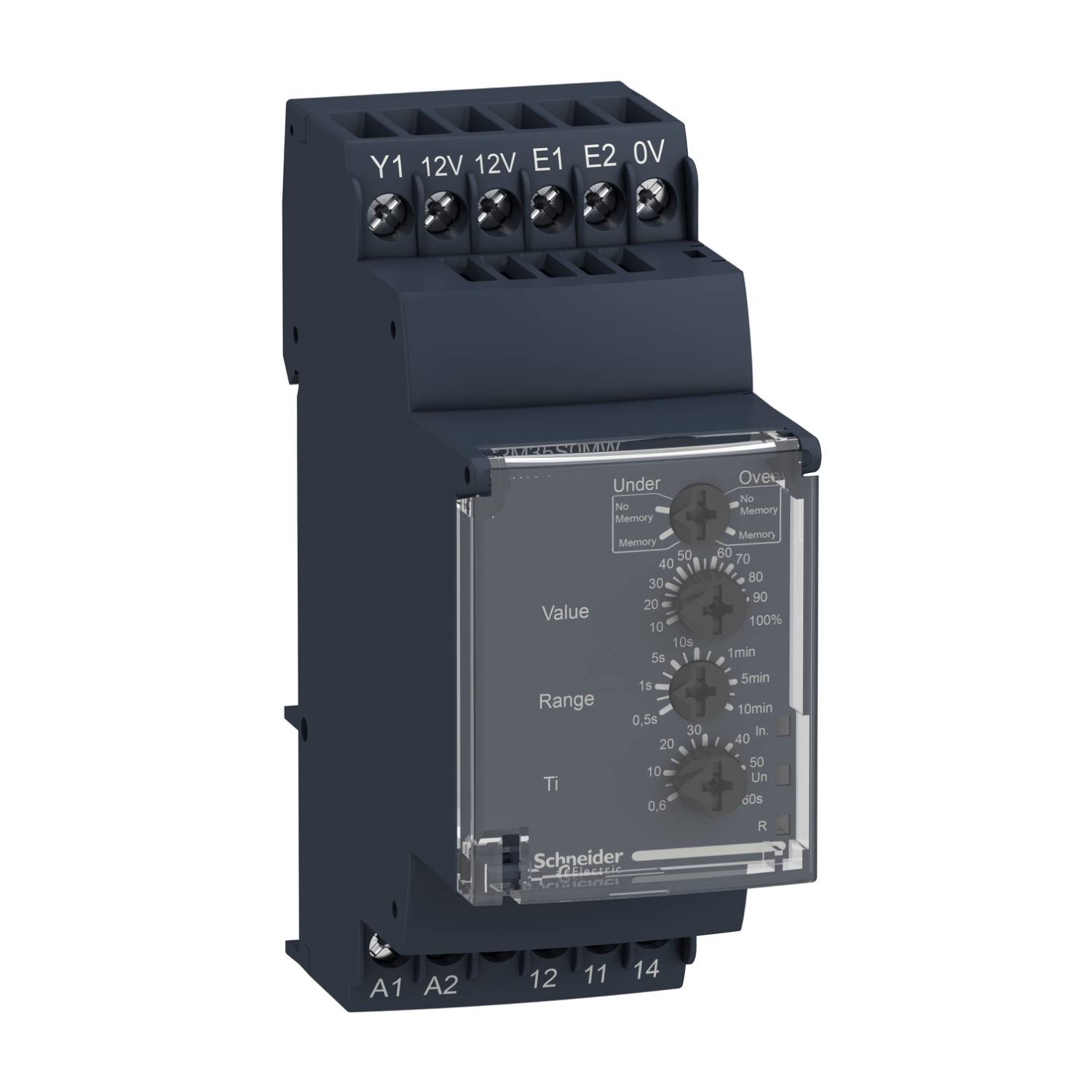

Schneider Electric RM35S0MW RM35S0MW Speed monitor No. of relay outputs: 1
EAN:
Part number:
Item no:
Product type
Speed monitor
No. of relay outputs
1
Type
RM35S0MW
Probe inputs
3-Draht-Näherungsschalter PNP oder NPN. NAMUR-Näherungsschalter. potentialfreier Hilfsschalter. Spannungssignal 0-30 V
Dim
(W x H) 35 mm x 90 mm
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Type
RM35S0MW
- Product type
Speed monitor
- No. of relay outputs
1
- Probe inputs
3-Draht-Näherungsschalter PNP oder NPN. NAMUR-Näherungsschalter. potentialfreier Hilfsschalter. Spannungssignal 0-30 V
- Dim
(W x H) 35 mm x 90 mm
- Weight
0.13 kg
- Width
35 mm
- Height
90 mm
35
90 mm
72 mm
FALSE
TRUE
FALSE
TRUE
0
0
0
0
0
1
0
0
TRUE
TRUE
Screw connection
FALSE
Level a
AC/DC
2-channel
None
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914418 Schneider Electric RM35S0MW RM35S0MW Speed monitor No. of relay outputs: 1
Datasheet 2914418 Schneider Electric RM35S0MW RM35S0MW Speed monitor No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2914418 Schneider Electric RM35S0MW RM35S0MW Speed monitor No. of relay outputs: 1
Information
Information 2914418 Schneider Electric RM35S0MW RM35S0MW Speed monitor No. of relay outputs: 1
Description
Zelio controller This speed monitor monitors a rotating axis for exceeding or falling below a set limit value (0,1-1200 rpm, 0,002-20 Hz). An additional sensor must be connected (3-wire PNP or NPN proximity switch, NAMUR proximity switch, potential-free auxiliary switch, 0-30 V voltage signal). The type of monitoring, the limit value and a switching delay can be set. An error memory can also be activated, which holds the message until a reset is performed. The wide-voltage power supply (24-240 VAC/DC) enables a universal application. The cable is connected via screw terminals.
