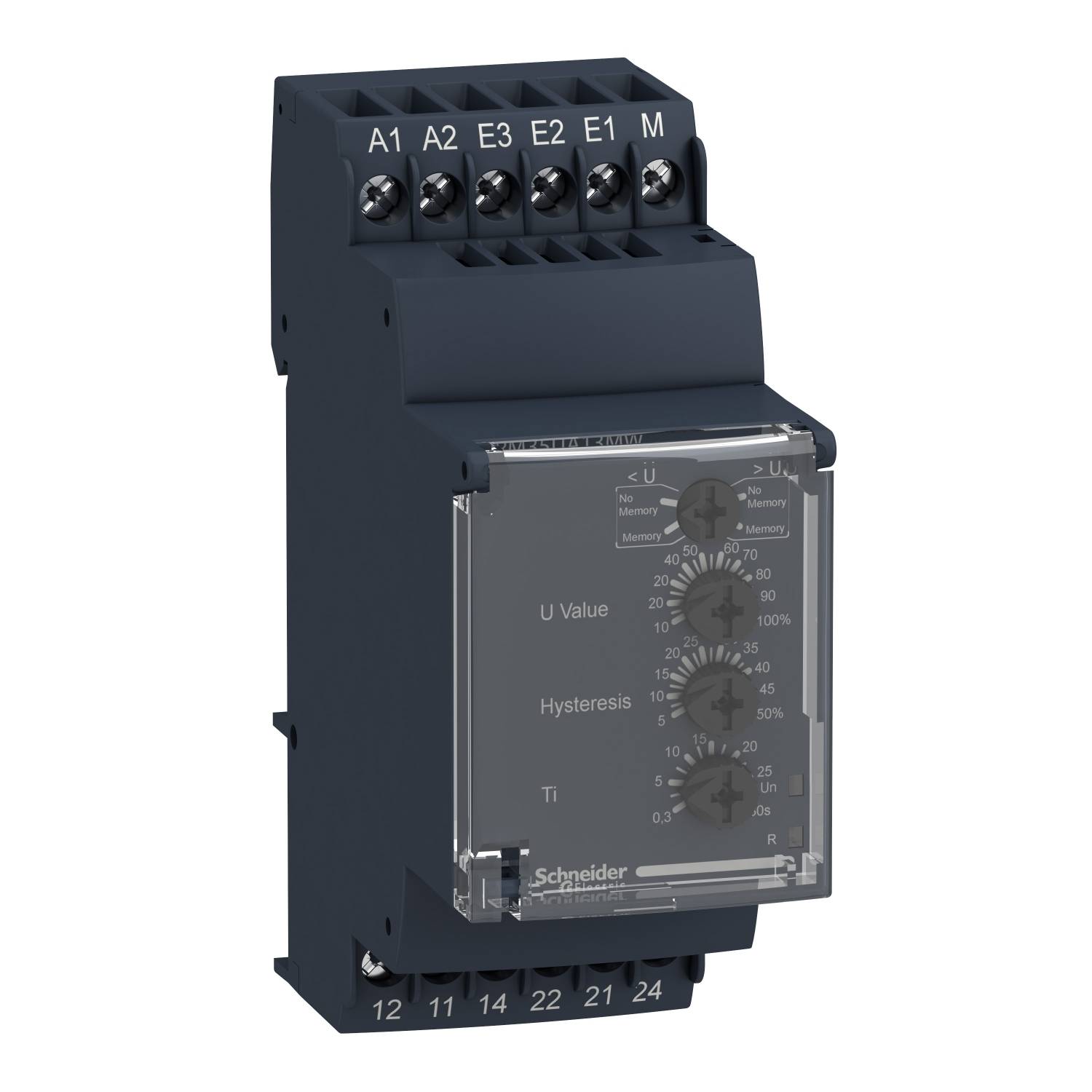

Schneider Electric RM35UA12MW RM35UA12MW Voltage monitoring relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Voltage monitoring relay
No. of relay outputs
2
Type
RM35UA12MW
Probe inputs
1-100 VAC/DC
Width
35
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
14-day return policy included
Technical specifications
- Type
RM35UA12MW
- Product type
Voltage monitoring relay
- No. of relay outputs
2
- Probe inputs
1-100 VAC/DC
35
90 mm
72 mm
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
AC
Screw connection
30 s
0.3 s
AC/DC
0
0
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2914423 Schneider Electric RM35UA12MW RM35UA12MW Voltage monitoring relay No. of relay outputs: 2
Datasheet 2914423 Schneider Electric RM35UA12MW RM35UA12MW Voltage monitoring relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2914423 Schneider Electric RM35UA12MW RM35UA12MW Voltage monitoring relay No. of relay outputs: 2
Information
Information 2914423 Schneider Electric RM35UA12MW RM35UA12MW Voltage monitoring relay No. of relay outputs: 2
Description
Zelio controller This multifunctional voltage guard is used in DC and AC voltage networks and allows monitoring of exceeding or falling below a adjustable threshold (1-100 VAC/DC). In addition the limit value, the switching hysteresis and a switch-off delay are adjustable. At the output there are two relay changers available, which can be charged up to 5 A. Optionally, an error memory can be selected that holds the message up to a reset. 2 LEDs indicate the device status. The wide-voltage power supply (24-240 VAC/DC) enables a universal application. The cable is connected via screw terminals.
