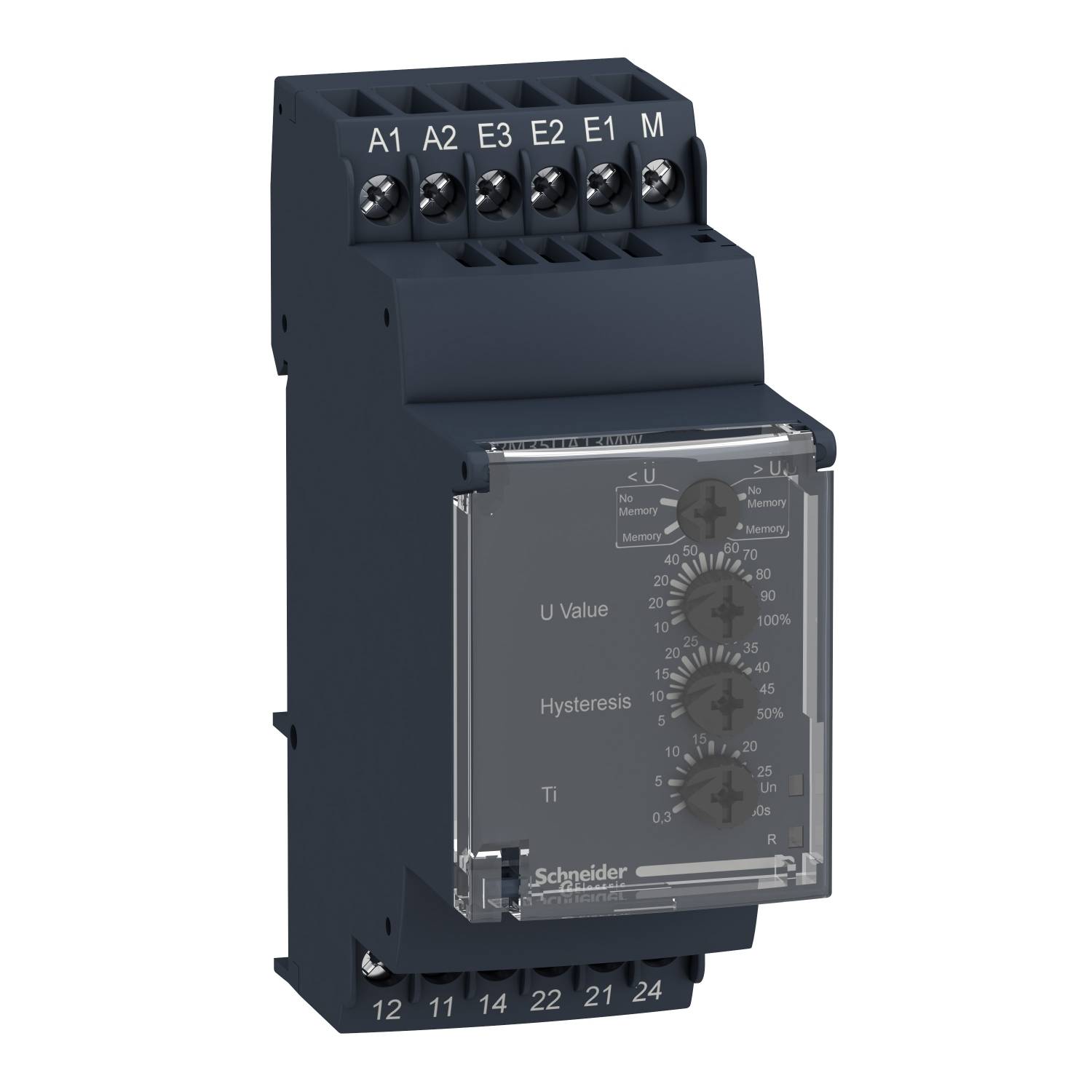

Schneider Electric RM35UA13MW RM35UA13MW Voltage monitoring relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Voltage monitoring relay
No. of relay outputs
2
Type
RM35UA13MW
Width
35
Height
90 mm
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Type
RM35UA13MW
- Product type
Voltage monitoring relay
- No. of relay outputs
2
35
90 mm
72 mm
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
AC
Screw connection
30 s
0.3 s
AC/DC
0
0
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2914424 Schneider Electric RM35UA13MW RM35UA13MW Voltage monitoring relay No. of relay outputs: 2
Datasheet 2914424 Schneider Electric RM35UA13MW RM35UA13MW Voltage monitoring relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2914424 Schneider Electric RM35UA13MW RM35UA13MW Voltage monitoring relay No. of relay outputs: 2
Information
Information 2914424 Schneider Electric RM35UA13MW RM35UA13MW Voltage monitoring relay No. of relay outputs: 2
Description
Zelio controller This multifunctional voltage guard is used in DC and AC voltage networks and allows monitoring of exceeding or falling below a adjustable threshold (15-600 VAC/DC). In addition the limit value, the switching hysteresis and a switch-off delay are adjustable. At the output there are two relay changers available, which can be charged up to 5 A. Optionally, an error memory can be selected that holds the message up to a reset. 2 LEDs indicate the device status. The wide-voltage power supply (24-240 VAC/DC) enables a universal application. The cable is connected via screw terminals.
