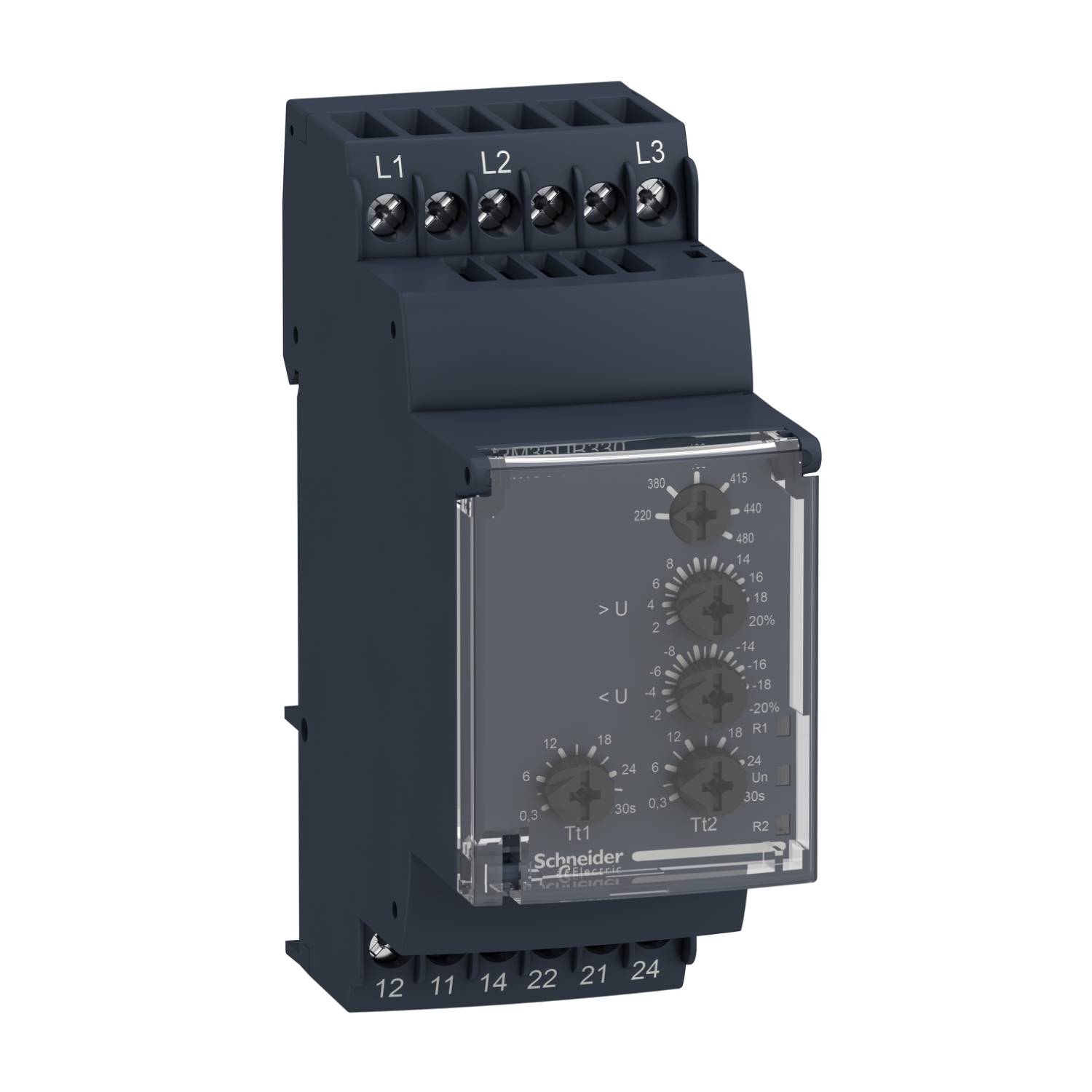

Schneider Electric RM35UB330 RM35UB330 Voltage monitoring relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Voltage monitoring relay
No. of relay outputs
2
Type
RM35UB330
Probe inputs
dreiphasige Versorgungen (220-480 VAC). Netzspannung
Dim
(W x H) 35 mm x 90 mm
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Technical specifications
- Type
RM35UB330
- Product type
Voltage monitoring relay
- No. of relay outputs
2
- Probe inputs
dreiphasige Versorgungen (220-480 VAC). Netzspannung
- Dim
(W x H) 35 mm x 90 mm
- Weight
0.0880 kg
- Width
35 mm
- Height
90 mm
35
90 mm
72 mm
FALSE
FALSE
TRUE
TRUE
TRUE
FALSE
Screw connection
0.65 s
30 s
0.3 s
AC/DC
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914425 Schneider Electric RM35UB330 RM35UB330 Voltage monitoring relay No. of relay outputs: 2
Datasheet 2914425 Schneider Electric RM35UB330 RM35UB330 Voltage monitoring relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2914425 Schneider Electric RM35UB330 RM35UB330 Voltage monitoring relay No. of relay outputs: 2
Information
Information 2914425 Schneider Electric RM35UB330 RM35UB330 Voltage monitoring relay No. of relay outputs: 2
Description
Zelio controller This voltage monitoring relay monitors three-phase supplies (220-480 VAC) for phase failure and the mains voltage for exceeding and falling below an adjustable threshold (-20-2%/+2-+20% depending on the voltage). For indication, two relay changers are present that can be loaded with up to 5 A. In this case one relay is available for the over- and under-reporting. In case of phase failure both relays switch. The two limit values and a switch-off delay can be set. Settings are made via control elements on the front that can be protected against changes using a transparent cover. Two LEDs indicate the status. The power supply of the device is taken from the measurement voltage. The width is 17.5 mm and it is installed on the DIN rail.
