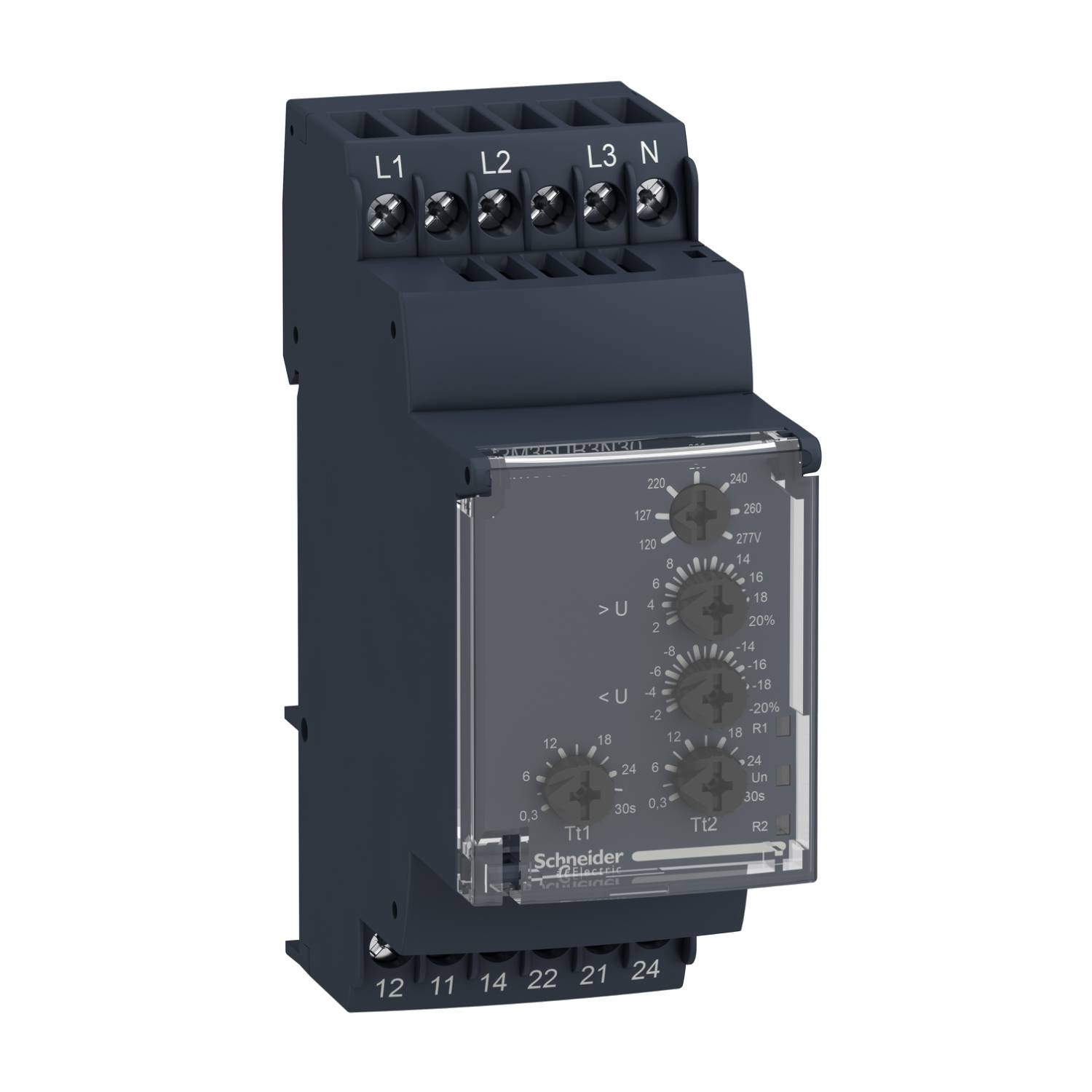

Schneider Electric RM35UB3N30 RM35UB3N30 Voltage monitoring relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Voltage monitoring relay
No. of relay outputs
2
Type
RM35UB3N30
Probe inputs
dreiphasige Versorgungen auf Phasenausfall. sowie die Netzspannung auf Über- und Unterschreitung eines einstellbaren Grenzwertes. Dabei wird auch der Neutralleiter überwacht.
Dim
(W x H) 35 mm x 90 mm
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
14-day return policy included
Technical specifications
- Type
RM35UB3N30
- Product type
Voltage monitoring relay
- No. of relay outputs
2
- Probe inputs
dreiphasige Versorgungen auf Phasenausfall. sowie die Netzspannung auf Über- und Unterschreitung eines einstellbaren Grenzwertes. Dabei wird auch der Neutralleiter überwacht.
- Dim
(W x H) 35 mm x 90 mm
- Weight
0.0880 kg
- Width
35 mm
- Height
90 mm
35
90 mm
72 mm
FALSE
FALSE
TRUE
TRUE
TRUE
FALSE
Screw connection
0.65 s
30 s
0.3 s
AC/DC
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914426 Schneider Electric RM35UB3N30 RM35UB3N30 Voltage monitoring relay No. of relay outputs: 2
Datasheet 2914426 Schneider Electric RM35UB3N30 RM35UB3N30 Voltage monitoring relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2914426 Schneider Electric RM35UB3N30 RM35UB3N30 Voltage monitoring relay No. of relay outputs: 2
Information
Information 2914426 Schneider Electric RM35UB3N30 RM35UB3N30 Voltage monitoring relay No. of relay outputs: 2
Description
Zelio controller This voltage monitoring relay monitors three-phase supplies for phase failure and the mains voltage for exceeding and falling below a adjustable threshold. The neutral conductor is also monitored. The voltage range between the phase and neutral conductor is 120-277 VAC. For indication, two relay changers are present that can be loaded with up to 5 A. In this case one relay is available for the over- and under-reporting. In case of phase failure both relays switch. The two limit values and a switch-off delay can be set. Settings are made via control elements on the front that can be protected against changes using a transparent cover. Two LEDs indicate the status. The power supply of the device is taken from the measurement voltage. The width is 17.5 mm and it is installed on the DIN rail.
