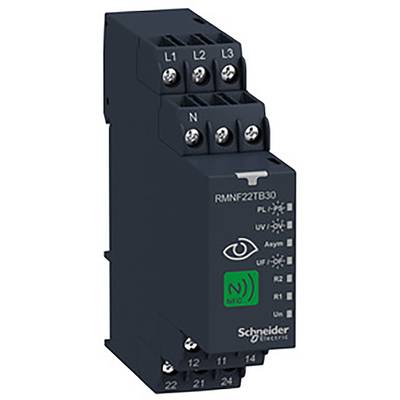

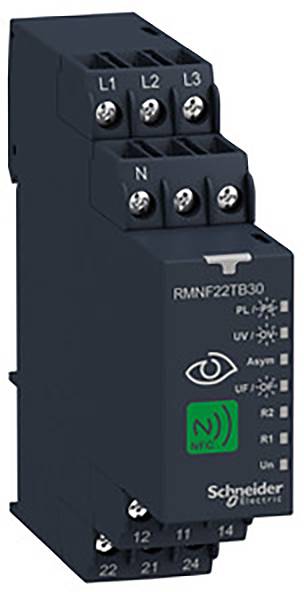

Schneider Electric RMNF22TB30 RMNF22TB30 Network monitor No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Network monitor
No. of relay outputs
2
Type
RMNF22TB30
Dim
(L x W x H) 99 x 35 x 90 mm
Weight
0.1375 kg
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Type
RMNF22TB30
- Product type
Network monitor
- No. of relay outputs
2
- Dim
(L x W x H) 99 x 35 x 90 mm
- Weight
0.1375 kg
- Width
35 mm
- Height
90 mm
- Length
99 mm
22.5
90 mm
99 mm
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
Screw connection
300 s
0.1 s
300 s
0.1 s
AC
2
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914427 Schneider Electric RMNF22TB30 RMNF22TB30 Network monitor No. of relay outputs: 2
Datasheet 2914427 Schneider Electric RMNF22TB30 RMNF22TB30 Network monitor No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2914427 Schneider Electric RMNF22TB30 RMNF22TB30 Network monitor No. of relay outputs: 2
User & Safety Instructions 2914427 Schneider Electric RMNF22TB30 RMNF22TB30 Network monitor No. of relay outputs: 2
Information
Information 2914427 Schneider Electric RMNF22TB30 RMNF22TB30 Network monitor No. of relay outputs: 2
Description
This 3-phase control relay is part of the Schneider Electric range of Zelio control relays. This 3-phase control relay is equipped with NFC technology that enables digital operation instead of analogue operation. This is a 8A multifunction 3-phase control relay that monitors 3-phase or 3-phase with neutral grid and has an adjustable time delay of 0.1s to 60min. The Zelio NFC APP can combine various alarms with AND, OR NON-logic to create unique monitoring combinations for the two relay outputs that are individually configurable. The NFC 3-phase control relay is a single reference that supports 7 functions: Phase failure, phase sequence, asymmetry, undervoltage, overvoltage, Underfrequency and overfrequency. The 3-phase control is protected according to IP20 (terminals), IP40 (housing) and IP40 (front plate). In addition, the 4-digit password increases security by preventing unauthorized changes to the settings. This RMNF22 has dimensions of 22.5 mm (width) x 90 mm (height) x 99 mm (depth) and weighs 0.125 kg. It is Ideal for controlling various functions in the packaging, lifting, lifting, textile and water industries. It complies with the international standard EN/IEC 60255-1 and certifications such as UL, CSA, CE, CCC, EAC and RCM. It is sold as a single unit. Monitoring and testing are now intuitive, as accurate fault conditions can be identified via the front LEDs and data can be analyzed using the Zelio NFC APP. This saves time and increases efficiency.
