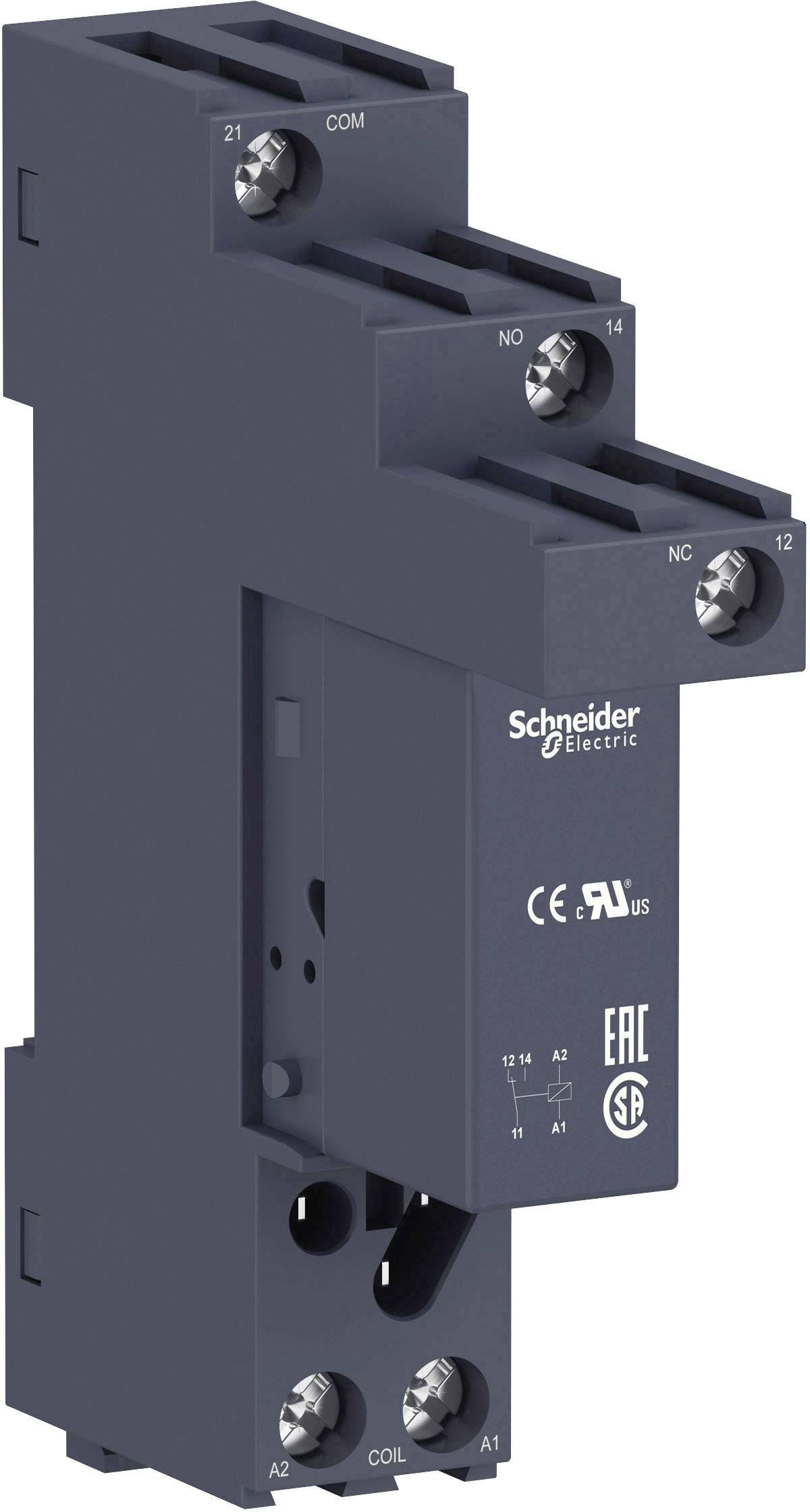

Schneider Electric RSB1A160BDS Plug-in relay 24 V DC 16 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Contact type
1 change-over
Nominal voltage
24 V DC
Switching voltage (max.)
300 V DC
400 V AC
Switching current (max.)
16 A
Datasheet (PDF)
Technical specifications
- Product type
Plug-in relay
- Type
RSB1A160BDS
- Connection
Screw terminal
- Factory colour
Anthracite (matt)
- Contact type
1 change-over
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
300 V DC
400 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Durability
3000 0000 cycles
- Features
w/o LED
w/o test button
unequipped
IP40
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Depth
61 mm
- Width
15.5 mm
- Height
78.5 mm
- Dim
(W x H x D) 15.5 x 78.5 x 61 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1667377 Schneider Electric RSB1A160BDS Plug-in relay 24 V DC 16 A 1 change-over 1 pc(s)
