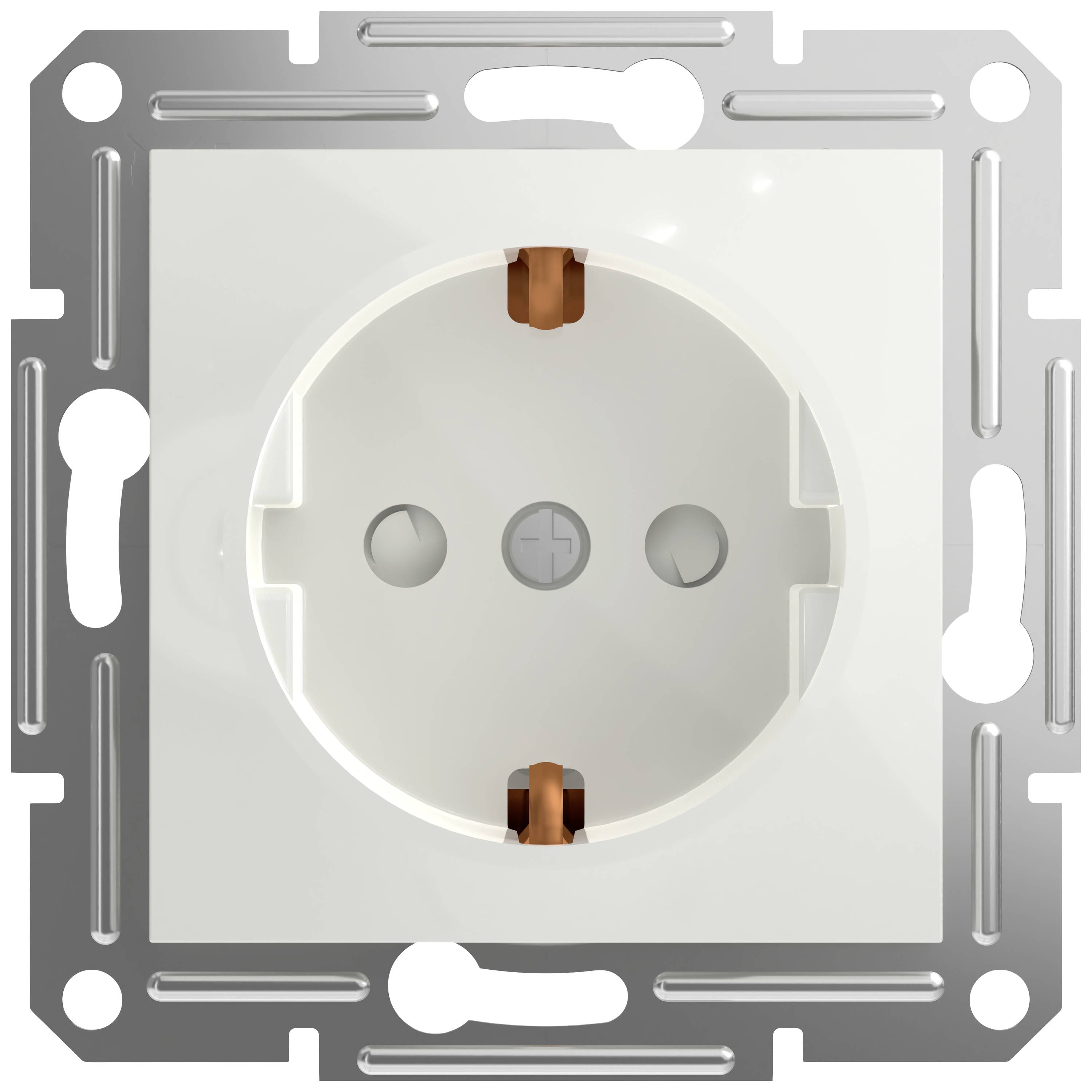

A white socket, embedded in a rectangular metal plate, shows the front view with two round holes and an earthing pin.

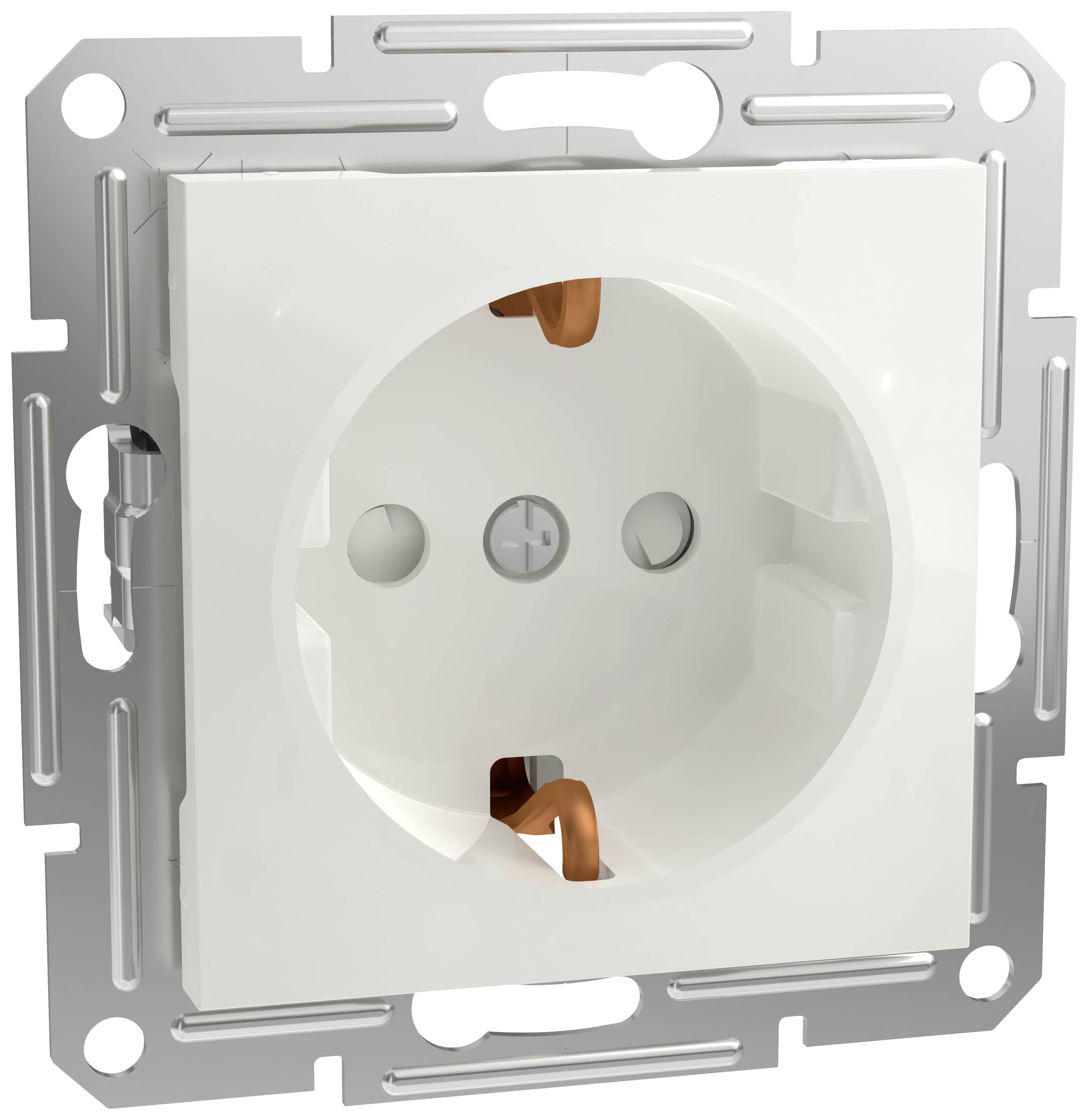

White recessed wall socket with metal frame, shown front-on, displaying earthing and contact openings for electrical connection.

'Rear of a switch with multiple certification marks and labels, including the marking for 3 mm screws.'

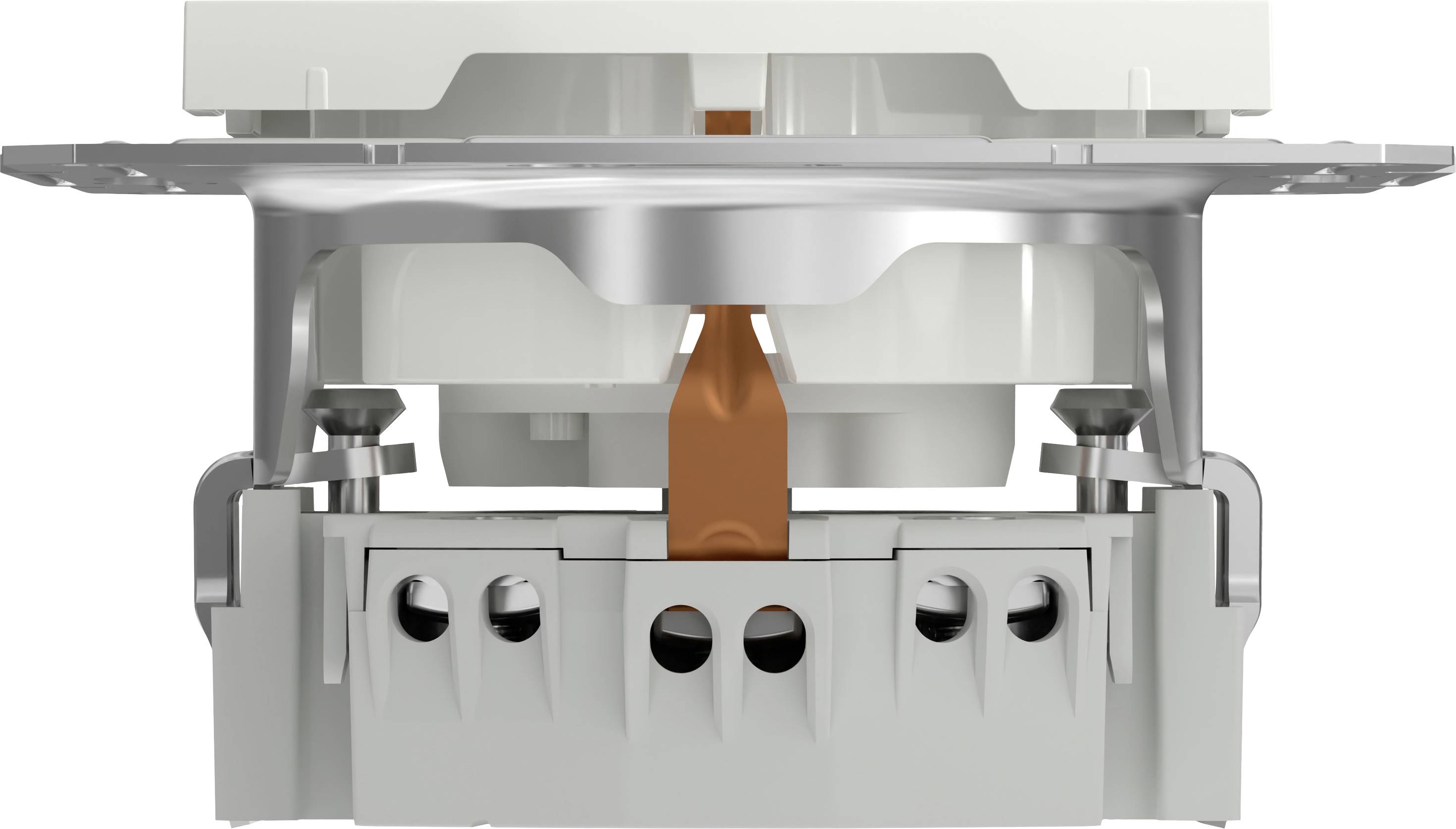

Cross-section of an electrical switch with visible internal components, including wiring connections and mechanical parts.

A silver, round electrical plug with a mounting plate. Contains markings such as 'EAC' and measurement unit '13 mm'.

Side view of a loudspeaker with technical components and metal frame, showing details of construction and connections.

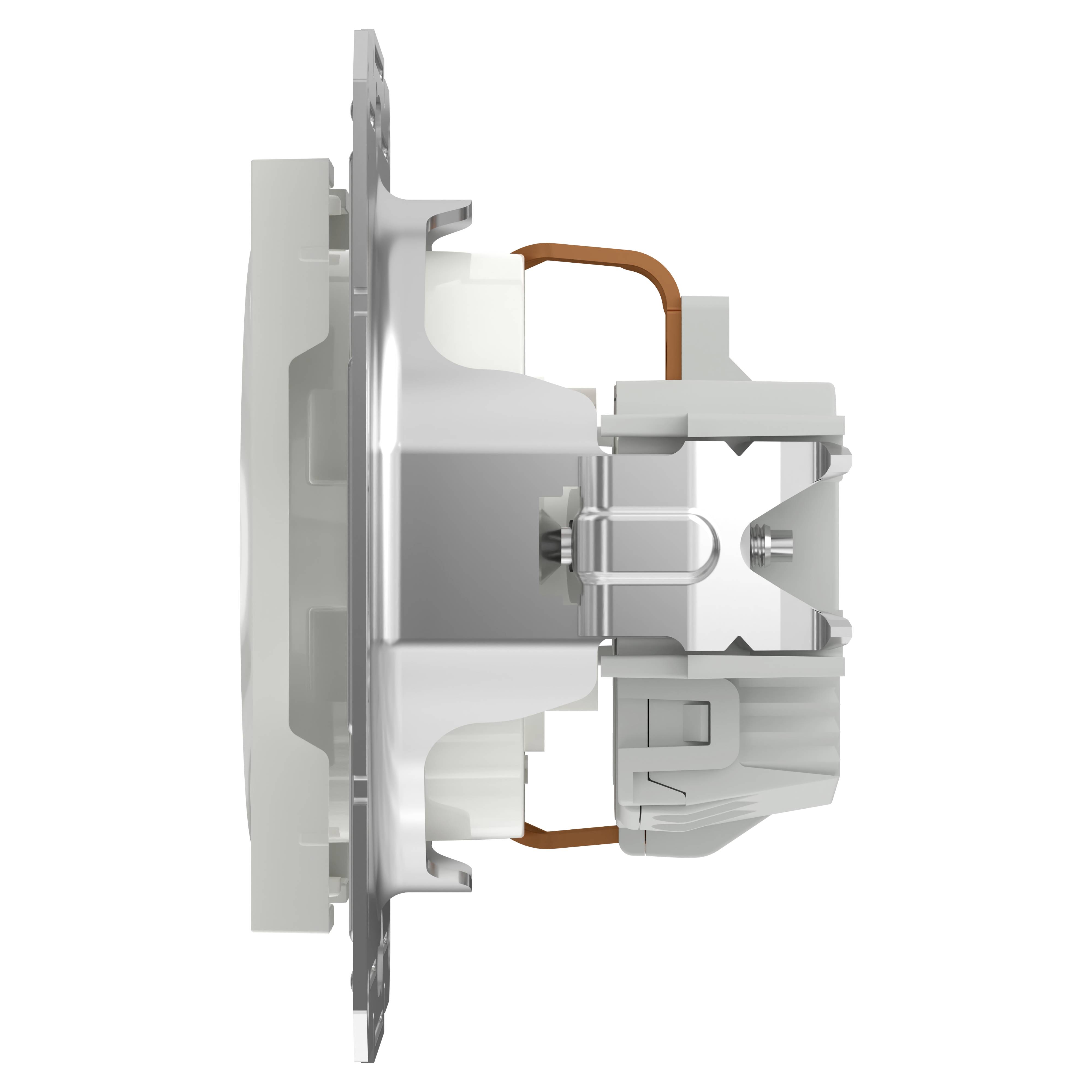

A metal component with an electrical connection, side view. Possibly an electrical switch or socket for technical applications.

Cross-section of a ceiling light shows the internal components and their arrangement for optimal light diffusion and mounting.

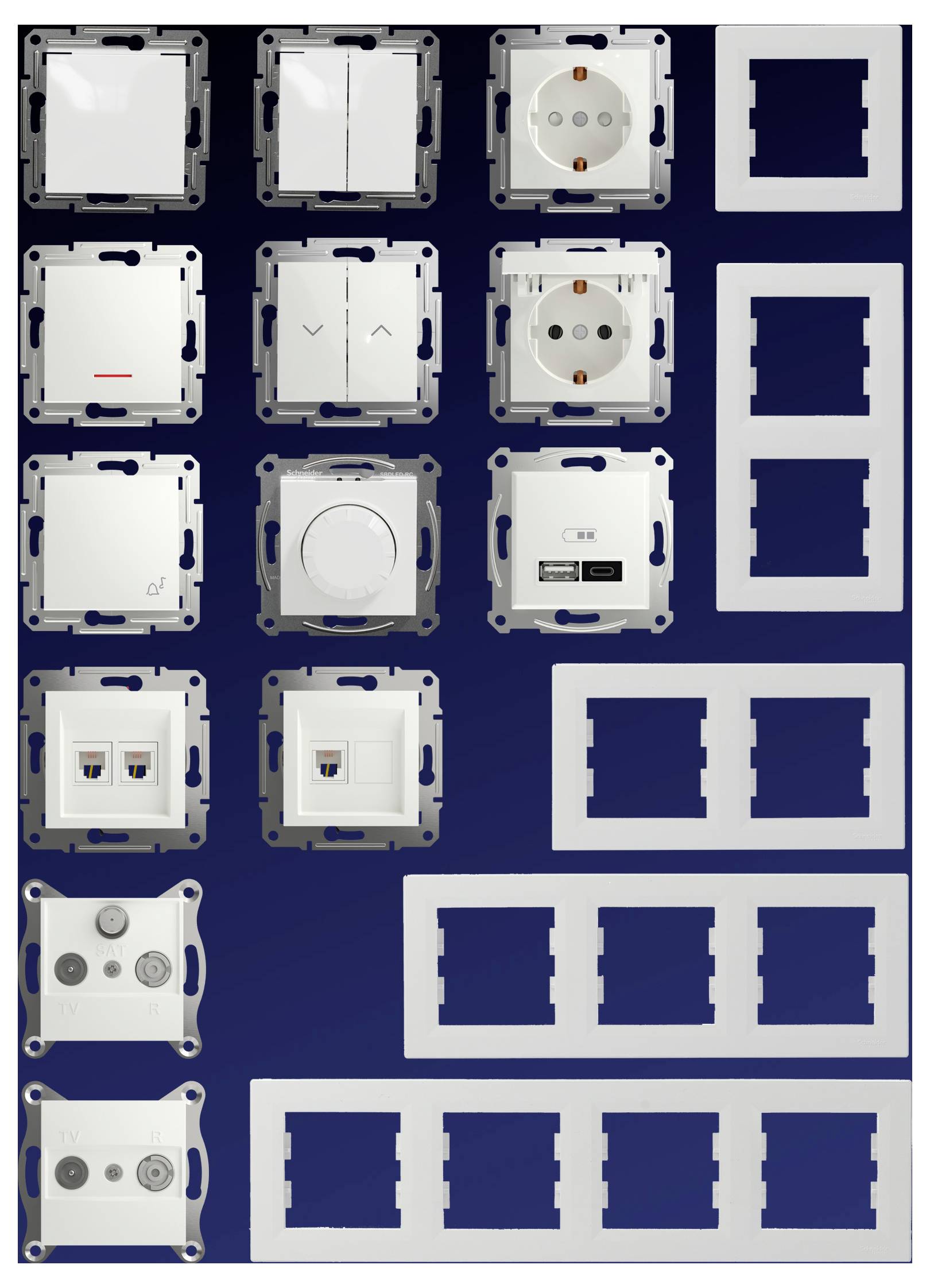

Assorted modular electrical switch, outlet, and control faceplates arranged in a grid on a dark blue background.

Two white switches, one with a socket, on a wooden desk. A black lamp and a wooden frame are in the background.

A man and a woman are standing in front of a blue wall. On the left, an easel, on the right Asfora switches: sockets, switches, USB charger. Text: 'Asfora Switch Design: All the functions you need.'

Simple selection with just 2 components: insert and frame, single to quadruple. Image shows two components for socket frames.

1/12

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

3120 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.76 / piece)

€ 2.76

plus VAT.

Report legal concerns

Highlights & Details

Schneider Electric ASFORA Schuko socket 16A, touch protection, earthing contact socket, screw terminals, flush-mounted socket white

Busch & Jaeger Switch Product Range

Technical specifications

Type: Schneider Electric ASFORA Schuko socket 16A, touch protection, earthing contact socket, screw terminals, flush-mounted socket white

Switch type function: Safety socket

Product type: Switch product range

Type series: Asfora

Factory colour: White (RAL 9003)

Nominal voltage: 250 V AC

Nominal current: 16 A

Switching capacity: 3680 W

: IP20

Content: 1 pc(s)

Material: ABS

VDE standard: 0620-1

Documents & Downloads

Datasheet

Datasheet 2997236 Schneider Electric Safety socket Asfora White (RAL 9003) EPH2970221D 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2997236 Schneider Electric Safety socket Asfora White (RAL 9003) EPH2970221D 1 pc(s)

Description

This Schneider Electric device is a 16 A/230 VAC socket with increased contact protection of the Asfora design line without a white frame. The socket pole configuration of this socket is 2P + E side grounding with integrated increased protection against contact. The device is fixed in place by screws or claws. This socket is provided with an integrated protection against accidental contact. Its operating voltage is 250 VAC and the nominal current is 16 A. The power range of this equipment is 3680 W. This equipment allows flush mounting. Dimensions are (W) 71 mm x (H) 71 mm x (D) 42 mm and the projection depth is 10 mm. It weighs 69 g. The color of this device is white (RAL 9003) with a glossy surface. It is made of ABS (acrylonitrile-butadiene-styrene). It achieves protection class IP20. Asfora includes elegant controls for switches and sockets, dimmer for indoor and area lighting, shutters and sockets for TV/R/SAT, power, data as well as USB. All Asfora products comply with the latest standards and are made of robust materials that can withstand everyday use for years. The device also fulfills the standard IEC 60884-1. It also received TSE and VDE certificates.
Complete device consisting of flush-mounted insert with front-side cover (see product photo). Device is still to be supplemented with an Asfora frame (white).

This text is machine translated.

Scope of delivery

Complete device: Flush-mounting with front-side cover.

Hints

Safety relevant component - Only by skilled workers

System requirements

1-way frame, Asfora white: EPH5800121D
2-way frame, horizontal, Asfora white: EPH5800221D
3-way frame, horizontal, Asfora white: EPH5800321D
4-way frame, horizontal, Asfora white: EPH5800421D
2-way frame, vertical, Asfora white: EPH5810221D
3-way frame, vertical, Asfora white: EPH5810321D
Blind cover, Asfora white: EPH5670121D
