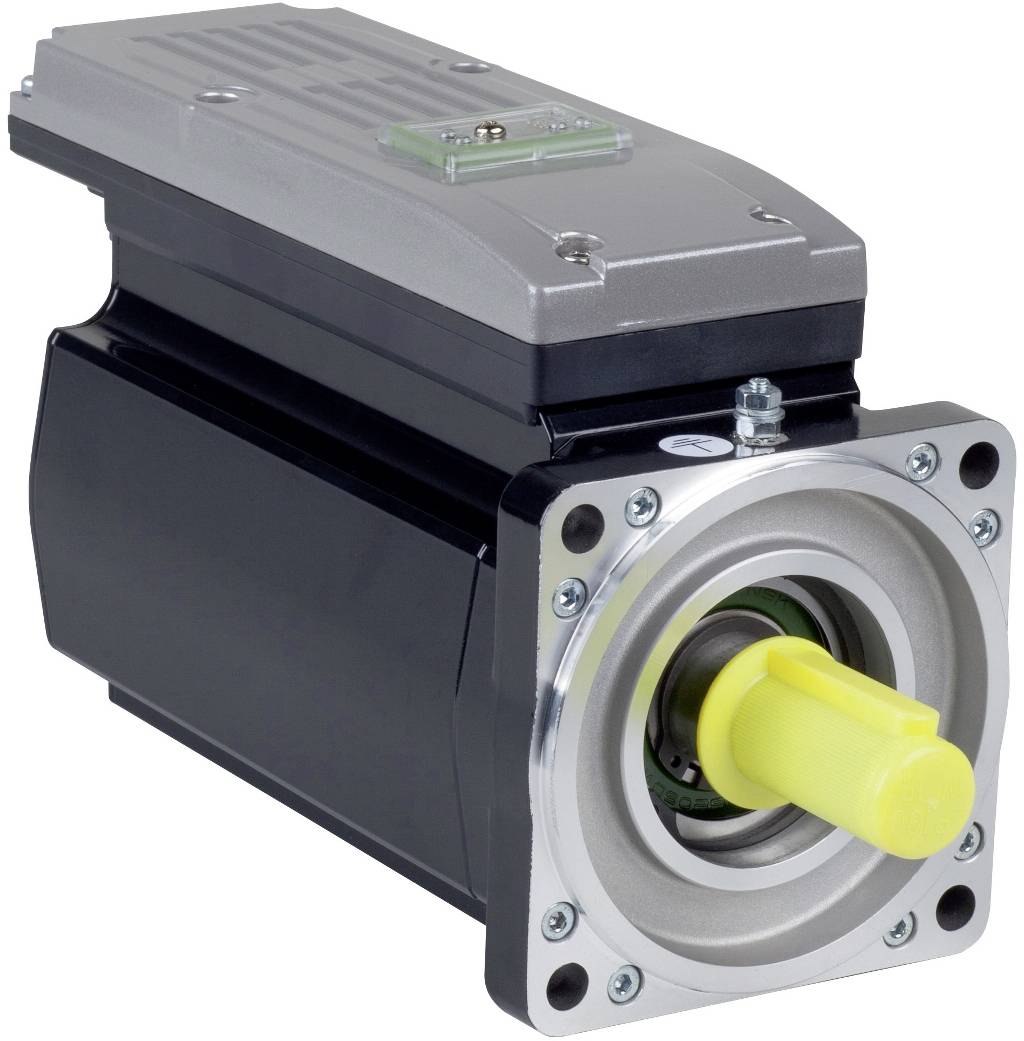

Schneider Electric Servo motor ILM1003P11A0000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,491.60 / piece)
€ 2,491.60
plus VAT.
Technical specifications
- Shaft end design: Other
- Rated current 2.4 A
- Cooling method: Other
- Manufacturer part #
ILM1003P11A0000
- Type
ILM1003P11A0000
IP54
- Type
Other
- Number of pins
8
Other
2.4 A
8
IP54
Other
Other
- Product type
Servo motor
Documents & Downloads
Datasheet
Datasheet 3754843 Schneider Electric Servo motor ILM1003P11A0000
User & Safety Instructions
User & Safety Instructions 3754843 Schneider Electric Servo motor ILM1003P11A0000
Description
Lexium 62 ILM integrated servo drive for motion-based automation with PacDrive 3. The drive series consists of the servo motor with associated control unit in a housing. This results in reduced requirements for wiring and wiring in the control cabinet. This servo drive has a rated power of 1100 W, has a standstill torque of 5.8 Nm, a rated torque of 3.5 Nm and peak torque of 28.3 Nm. The rated speed is 3000 rpm. Its flange size measures 100 mm and has a construction length of 3 stacks. A standardized winding type is installed. The shaft end is fitted with a key and the shaft is guided without the shaft seal. The encoder system is designed as an absolute encoder with singleturn and measures 128 sin/Cos periods per revolution. There is no holding brake installed.
