Schneider Electric Servo motor SH30702P02A1100 SH30702P02A1100 2.2 Nm Shaft diameter: 11 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Holding torque
2.2 Nm
- Shaft Ø
11 mm
- Manufacturer part #
SH30702P02A1100
- Type
SH30702P02A1100
- Flange size
70 mm
- Nominal power
1360 W
- Shaft Ø
11 mm
- Nominal torque
2.2 Nm
Rotary current synchronous motor
AC/DC
230 V
3
Other
0
Other
Other
Other
0
0
0
FALSE
FALSE
None
FALSE
Other
Other
Other
Other
FALSE
Other
Other
FALSE
2.04
- UKCA
yes
- Product type
Servo motor
Documents & Downloads
Datasheet
Datasheet 2932393 Schneider Electric Servo motor SH30702P02A1100 SH30702P02A1100 2.2 Nm Shaft diameter: 11 mm
Datasheet 2932393 Schneider Electric Servo motor SH30702P02A1100 SH30702P02A1100 2.2 Nm Shaft diameter: 11 mm
User & Safety Instructions
User & Safety Instructions 2932393 Schneider Electric Servo motor SH30702P02A1100 SH30702P02A1100 2.2 Nm Shaft diameter: 11 mm
Information
Information 2932393 Schneider Electric Servo motor SH30702P02A1100 SH30702P02A1100 2.2 Nm Shaft diameter: 11 mm
Information 2932393 Schneider Electric Servo motor SH30702P02A1100 SH30702P02A1100 2.2 Nm Shaft diameter: 11 mm
Information 2932393 Schneider Electric Servo motor SH30702P02A1100 SH30702P02A1100 2.2 Nm Shaft diameter: 11 mm
Description

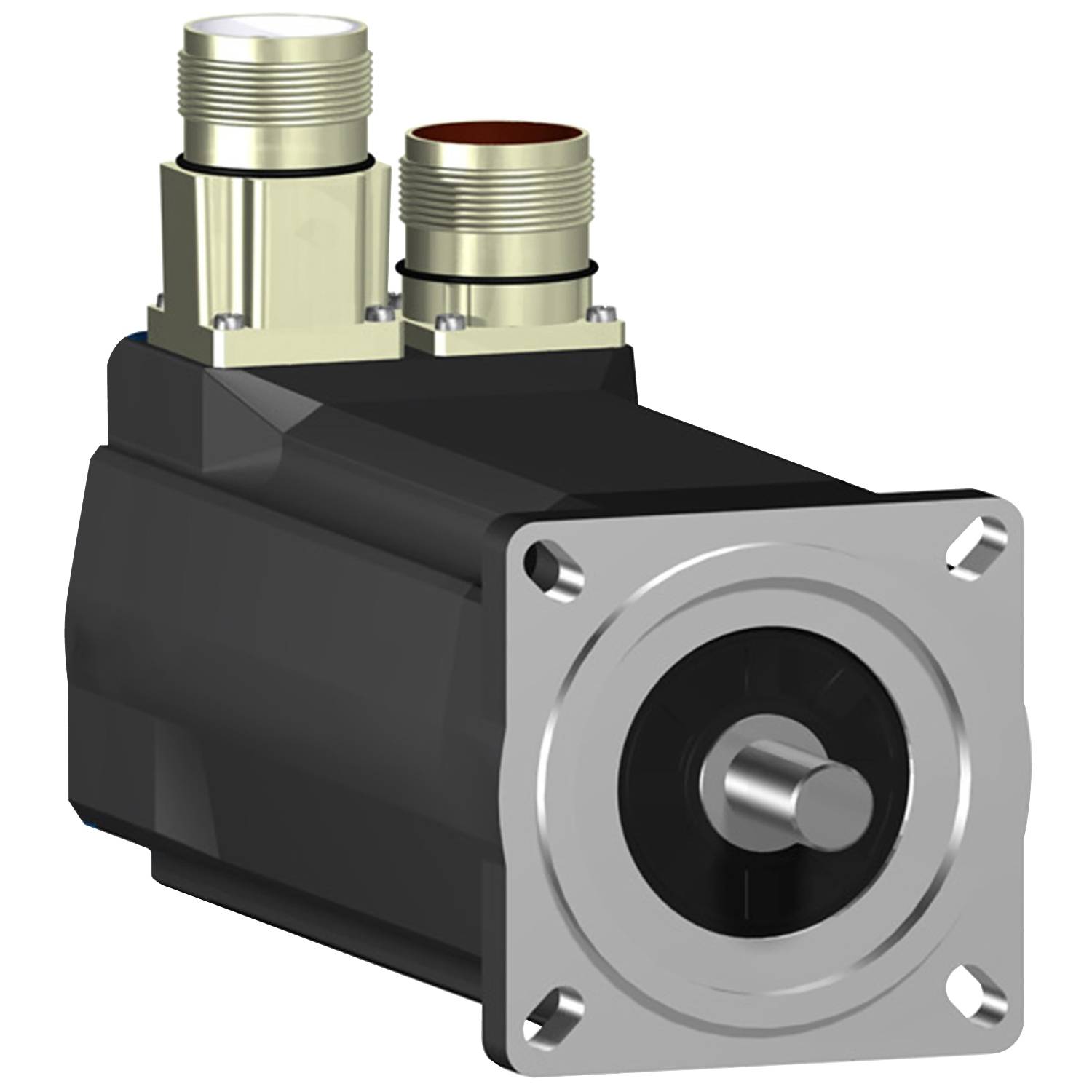

Lexium SH3 servo motor. This SH3 series of AC servomotors has a low rotor moment of inertia that enables high acceleration capability for dynamic applications. Owing to the winding technology, a higher power density results in a compact design This servo has a nominal continuous stop torque of 2.2 Nm and achieves a peak torque of 7.6 Nm. Its rated speed is up to 7200 rpm depending on the supply voltage. This results in a voltage-dependent nominal power up to 1360 W. The built-in encoder is designed as a multiturn with 128 periods/revolution (128x1024x4096) as SinCos Hiperface. Electrical connection is made via 2x M23 plug connectors in a straight line. The motor flange is 70 mm for attachment. The drive shaft has a diameter of 11 mm. The shaft end is smooth and corresponds to the protection class IP65 design. The motor housing conforms to protection class IP65. There is no holding brake. The servo amplifiers of the Lexium series Lexium 52 & Lexium 62 are recommended for operation of the synchronous motor.
