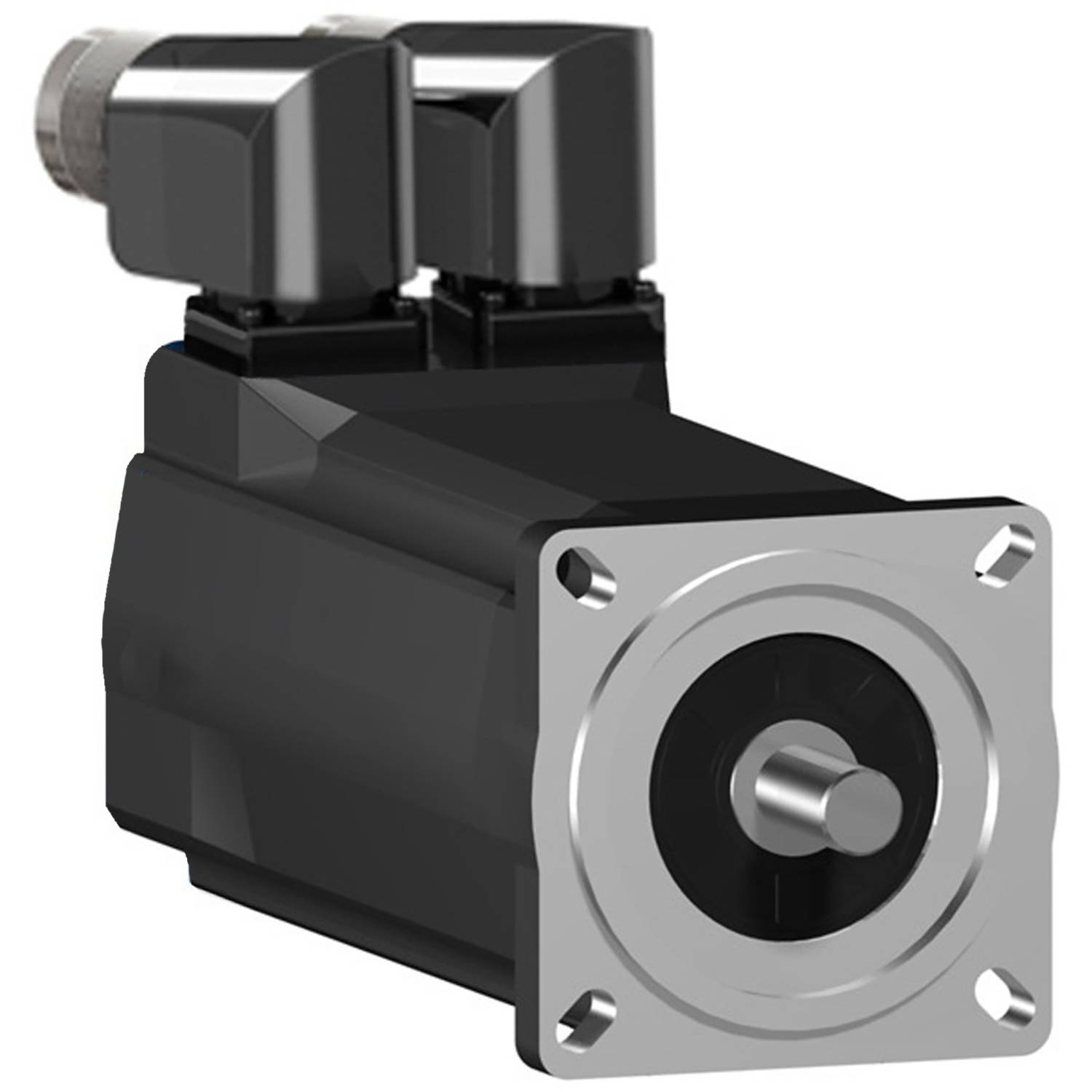

Schneider Electric Servo motor SH30703P02F2000 3.1 Nm Shaft diameter: 14 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,130.25 / piece)
€ 2,130.25
plus VAT.
14-day return policy included
Technical specifications
- Angle
90°
- Holding torque
3.1 Nm
- Shaft Ø
14 mm
- Manufacturer part #
SH30703P02F2000
- Type
SH30703P02F2000
- Flange size
70 mm
- Nominal power
1550 W
- Shaft Ø
14 mm
Other
AC
1.78 A
115 V
3
Other
6
Other
3000
0.26
Other
Other
0
0
0
FALSE
FALSE
None
FALSE
Other
Other
Other
Other
FALSE
Other
Other
FALSE
0.26
- UKCA
yes
- Product type
Servo motor
Documents & Downloads
Datasheet
Datasheet 2932637 Schneider Electric Servo motor SH30703P02F2000 3.1 Nm Shaft diameter: 14 mm
Datasheet 2932637 Schneider Electric Servo motor SH30703P02F2000 3.1 Nm Shaft diameter: 14 mm
User & Safety Instructions
User & Safety Instructions 2932637 Schneider Electric Servo motor SH30703P02F2000 3.1 Nm Shaft diameter: 14 mm
Information
Information 2932637 Schneider Electric Servo motor SH30703P02F2000 3.1 Nm Shaft diameter: 14 mm
Information 2932637 Schneider Electric Servo motor SH30703P02F2000 3.1 Nm Shaft diameter: 14 mm
Description
Lexium SH3 servo motor. This SH3 series of AC servomotors has a low rotor moment of inertia that enables high acceleration capability for dynamic applications. Owing to the winding technology, a higher power density results in a compact design This servo has a nominal continuous stop torque of 3.1 Nm and achieves a peak torque of 11.3 Nm. Its rated speed is up to 7200 rpm depending on the supply voltage. This results in a voltage-dependent nominal power up to 1550 W. The built-in encoder is designed as a multiturn with 128 periods/revolution (128x1024x4096) as SinCos Hiperface. The electrical connection is made via plug connector 2x M23, angled to 90° and rotatable. The motor flange is 70 mm for attachment. The drive shaft has a diameter of 14 mm. The shaft end is smooth and corresponds to the protection class IP54 design. The motor housing conforms to protection class IP65. A holding brake is integrated. The servo amplifiers of the Lexium series Lexium 52 & Lexium 62 are recommended for operation of the synchronous motor.
