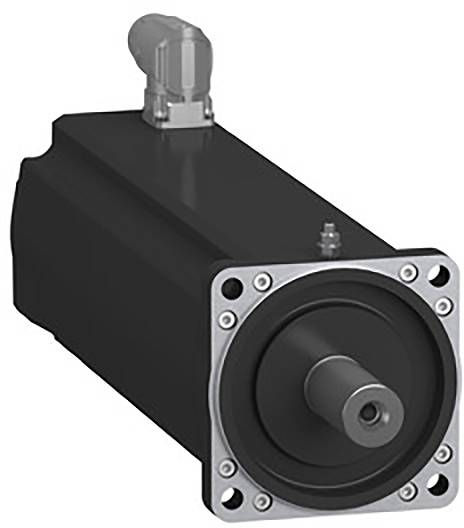

Schneider Electric Servo motor SH31004P0AF4000 SH31004P0AF4000 10 Nm Shaft diameter: 19 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,021.01 / piece)
€ 3,021.01
plus VAT.
14-day return policy included
Technical specifications
- Angle
90°
- Holding torque
10 Nm
- Shaft Ø
19 mm
- Manufacturer part #
SH31004P0AF4000
- Type
SH31004P0AF4000
- Width
100 mm
- Nominal power
2600 W
- Shaft Ø
19 mm
- Nominal torque
10 Nm
Other
AC
230 V
3
Other
4
Other
6000
1.49
IP65
Other
40.5
FALSE
FALSE
None
FALSE
Other
Other
Other
FALSE
Other
FALSE
9.5
- UKCA
not relevant
- Product type
Servo motor
Documents & Downloads
Datasheet
Datasheet 2932429 Schneider Electric Servo motor SH31004P0AF4000 SH31004P0AF4000 10 Nm Shaft diameter: 19 mm
Datasheet 2932429 Schneider Electric Servo motor SH31004P0AF4000 SH31004P0AF4000 10 Nm Shaft diameter: 19 mm
User & Safety Instructions
User & Safety Instructions 2932429 Schneider Electric Servo motor SH31004P0AF4000 SH31004P0AF4000 10 Nm Shaft diameter: 19 mm
Information
Information 2932429 Schneider Electric Servo motor SH31004P0AF4000 SH31004P0AF4000 10 Nm Shaft diameter: 19 mm
Information 2932429 Schneider Electric Servo motor SH31004P0AF4000 SH31004P0AF4000 10 Nm Shaft diameter: 19 mm
Description
SH3 servomotor for Lexium 52 & Lexium 62. Synchronous motor, low moment of inertia. Size 100 mm - rated output =2600 W. Moment of continuous standstill/peak 10/40.5 Nm. Speed nominal/max. =3600/6000 RPM. Smooth shaft end in IP54 - housing IP65. Single-turn encoder DSL, SinCos, 18x1024. Holding brake integrated and shaft diameter of 19 mm. Connection with 1 cable, angled at 90°, rotatable. 2x M23
