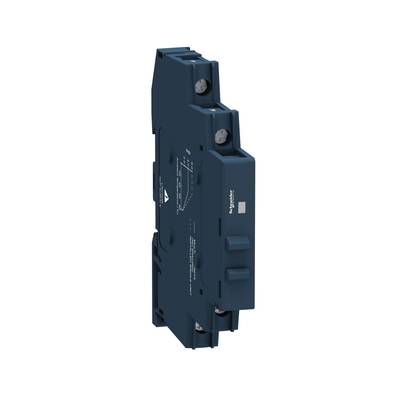

Schneider Electric SSR SSM1A16BD 6 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
280 V AC
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
SSM1A16BD
- Switching type
Zero crossing
- Connection
Screw terminal
- Control voltage (min.)
4 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
4 - 32 V DC
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
280 V AC
- Current load (max.)
6 A
- Output voltage (min.)
24 V AC
- Output voltage (max.)
280 V AC
- Contact type
1 maker
- Width
11 mm
- Height
88 mm
- Depth
84 mm
- Content
1 pc(s)
1
TRUE
AC/DC
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2922416 Schneider Electric SSR SSM1A16BD 6 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
Datasheet 2922416 Schneider Electric SSR SSM1A16BD 6 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2922416 Schneider Electric SSR SSM1A16BD 6 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
Information
Information 2922416 Schneider Electric SSR SSM1A16BD 6 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
Information 2922416 Schneider Electric SSR SSM1A16BD 6 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
Information 2922416 Schneider Electric SSR SSM1A16BD 6 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
Description
Zelio relay Modular semi-conductor relay for mounting on DIN rail in an innovative compact design with lateral cooling surface. The load circuit is designed for 1-phase networks in the range of 24-280 VAC and it can be switched 6 A. The switching behavior is zero-voltage switching and corresponds to one normally open contact. Control voltage is at 4-32 VDC. An LED display informs about the control. The connection is made with screw terminals. The dimensions are 11 x 8 x 84 mm.
