Name: Schneider Electric SSR SSM1A312BD 12 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
Brand: Schneider Electric
SKU: 1983568

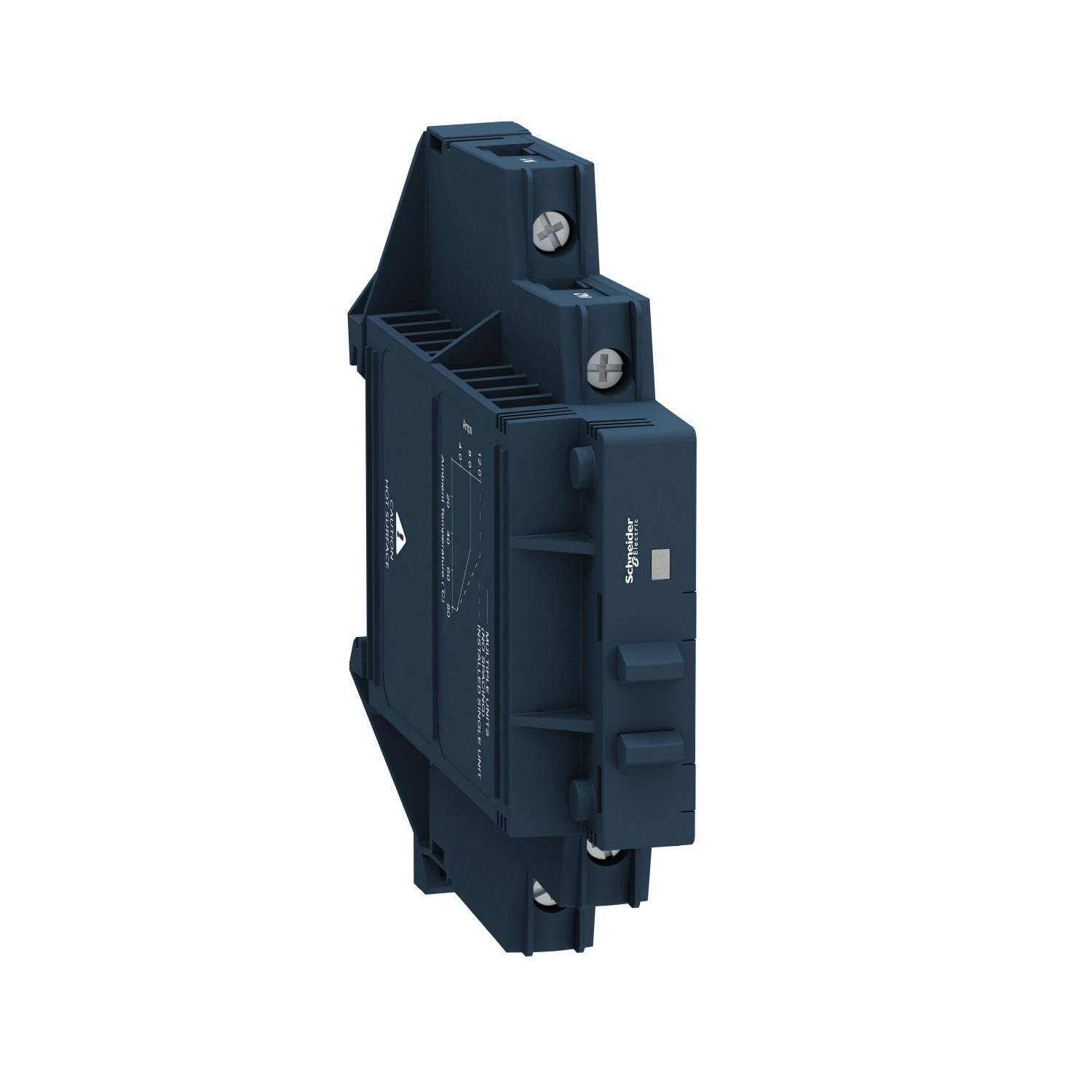

In the image, there is a dark blue electrical device with screw terminals. It features a technical diagram and labelling.

Packaging type

Piece

Product type

SSR

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

600 V AC

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: SSR

Type: SSM1A312BD

Switching type: Zero crossing

Connection: Screw terminal

Control voltage (min.): 4 V DC

Control voltage (max.): 32 V DC

Control voltage range: 4 - 32 V DC

Switching voltage (min.): 48 V AC

Switching voltage (max.): 600 V AC

Current load (max.): 12 A

Output voltage (min.): 48 V AC

Output voltage (max.): 600 V AC

Max. output current: 12 A

Contact type: 1 maker

Width: 18 mm

Height: 88 mm

Depth: 84 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1983568 Schneider Electric SSR SSM1A312BD 12 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Description

Modular solid-state relay for mounting on DIN rail in innovative compact design with lateral cooling surface. The load circuit is designed for single-phase networks in the range of 48-600 VAC and 12 A can be switched. The switching behavior is zero voltage switching and corresponds to a normally open contact. The control voltage is 4-32VDC. An LED display informs about the control. The connection is made with screw terminals. The dimensions are 18x88x84 mm
