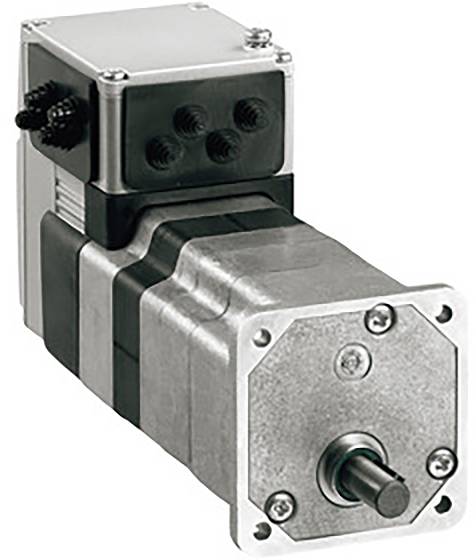

Schneider Electric Stepper motor ILE1R661PB1A8
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,533.61 / piece)
€ 2,533.61
plus VAT.
Technical specifications
- Manufacturer part #
ILE1R661PB1A8
- Type
ILE1R661PB1A8
Rotary current synchronous motor
DC
4.7 A
24 V
1
Other
6
Other
IP54
Other
0
0
0
FALSE
FALSE
None
FALSE
Other
Other
Other
Other
FALSE
Other
Other
FALSE
10.2
- UKCA
yes
- Product type
Stepper motor
Documents & Downloads
Datasheet
Datasheet 2931896 Schneider Electric Stepper motor ILE1R661PB1A8
Datasheet 2931896 Schneider Electric Stepper motor ILE1R661PB1A8
User & Safety Instructions
User & Safety Instructions 2931896 Schneider Electric Stepper motor ILE1R661PB1A8
Information
Information 2931896 Schneider Electric Stepper motor ILE1R661PB1A8
Description
Built-in drive of the Lexium ILE1 series. This range of distributed drives consists of a compact unit of the brushless DC motor and the associated control electronics with small dimensions. These engines are characterized by a high current-free self-holding torque. This EC motor has a maximum torque of 0.36 Nm and a continuous torque of 0.26 Nm. The voltage-dependent speed is up to 4800 rpm. The control takes place via an RS485 interface. A single-turn encoder with 12 points/revolution is available as a measuring system. Control inputs for STO are available as a safety function. The supply voltage 24-36 VDC and the flange dimension for mounting 66 mm. PCB connectors are provided for connection. An angular worm gear with a reduction ratio of 115:1 is mounted on the EC motor. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
