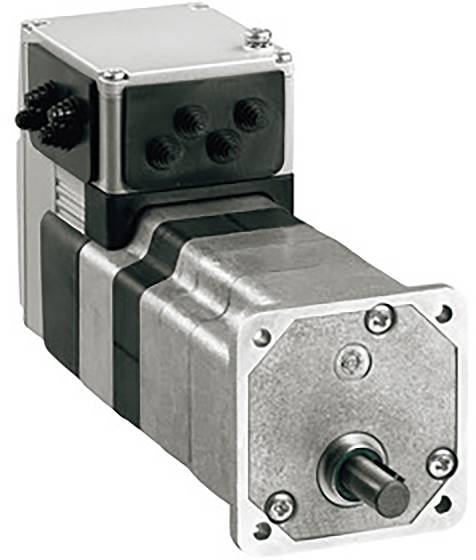

Schneider Electric Stepper motor ILE1R661PC1A0
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,629.41 / piece)
€ 1,629.41
plus VAT.
Technical specifications
- Manufacturer part #
ILE1R661PC1A0
- Type
ILE1R661PC1A0
Rotary current synchronous motor
DC
4.7 A
24 V
1
Other
6
Other
IP54
Other
0
0
0
FALSE
FALSE
None
FALSE
Other
Other
Other
Other
FALSE
Other
Other
FALSE
0.175
- UKCA
yes
- Product type
Stepper motor
Documents & Downloads
Datasheet
Datasheet 2931900 Schneider Electric Stepper motor ILE1R661PC1A0
Datasheet 2931900 Schneider Electric Stepper motor ILE1R661PC1A0
User & Safety Instructions
User & Safety Instructions 2931900 Schneider Electric Stepper motor ILE1R661PC1A0
Information
Information 2931900 Schneider Electric Stepper motor ILE1R661PC1A0
Information 2931900 Schneider Electric Stepper motor ILE1R661PC1A0
Information 2931900 Schneider Electric Stepper motor ILE1R661PC1A0
Information 2931900 Schneider Electric Stepper motor ILE1R661PC1A0
Description
Built-in drive of the Lexium ILE1 series. This range of distributed drives consists of a compact unit of the brushless DC motor and the associated control electronics with small dimensions. These engines are characterized by a high current-free self-holding torque. This EC motor has a maximum torque of 0.36 Nm and a continuous torque of 0.26 Nm. The voltage-dependent speed is up to 4800 rpm. The control takes place via an RS485 interface. A single-turn encoder with 12 points/revolution is available as a measuring system. Control inputs for STO are available as a safety function. The supply voltage 24-36 VDC and the flange dimension for mounting 66 mm. Industrial connectors are provided for connection. No transmission is fitted to the EC engine. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
