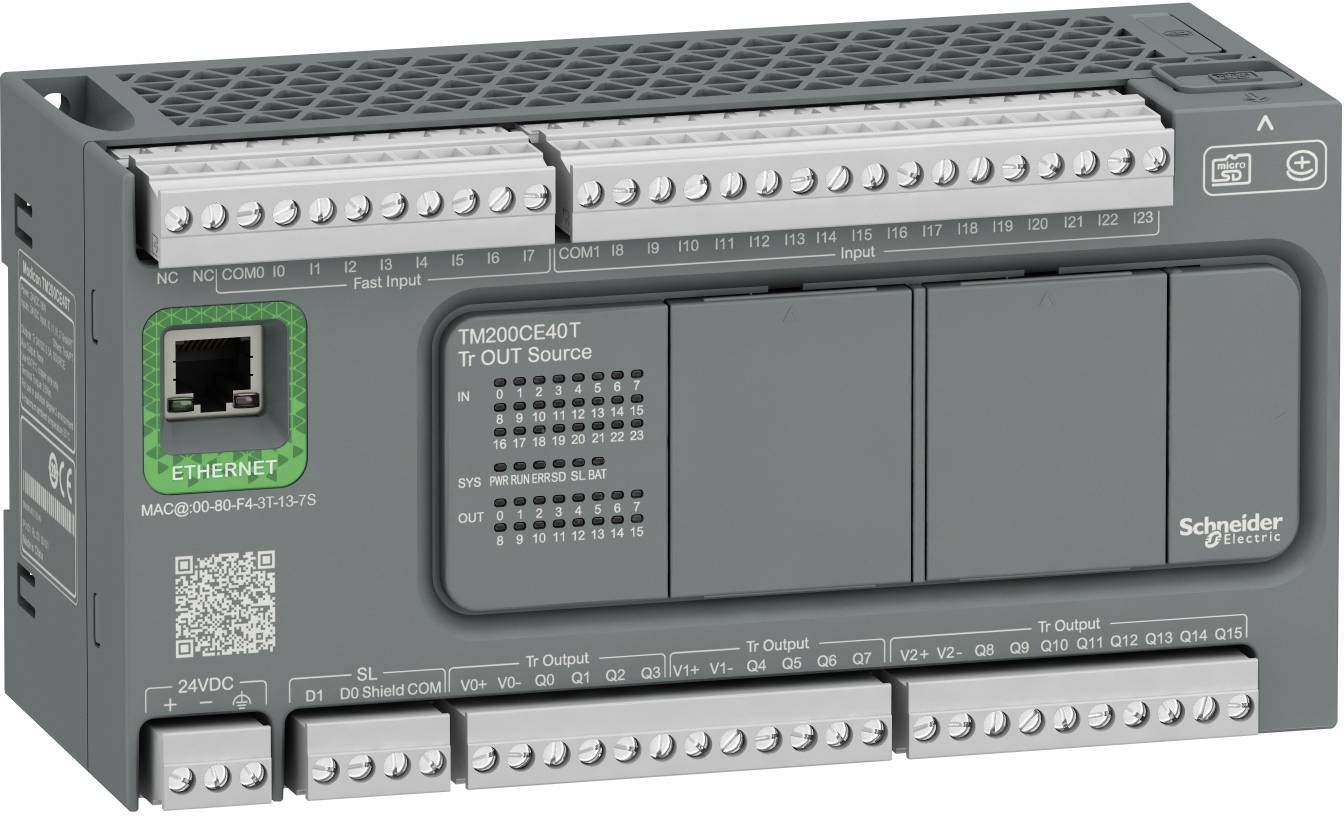

Schneider Electric TM200CE40T TM200CE40T Expansion 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 326.89 / piece)
€ 326.89
plus VAT.
14-day return policy included
Highlights & Details
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Product type
Expansion
- No. of analogue inputs
0
- No. of analogue outputs
0
- No. of digital inputs (max.)
40
- No. of inputs (max.)
40
- No. of outputs (max.)
16
- No. of transistor outputs (max.)
16
- Operating voltage
24 V DC
- Height
90 mm
- Length
175 mm
- Width
175 mm
- Type
TM200CE40T
- Manufacturer part #
TM200CE40T
- Dim
(L x W x H) 175 x 175 x 90 mm
- Display
No
- Weight
0.522 kg
- Depth
70 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3756217 Schneider Electric TM200CE40T TM200CE40T Expansion 24 V DC
User & Safety Instructions
User & Safety Instructions 3756217 Schneider Electric TM200CE40T TM200CE40T Expansion 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
