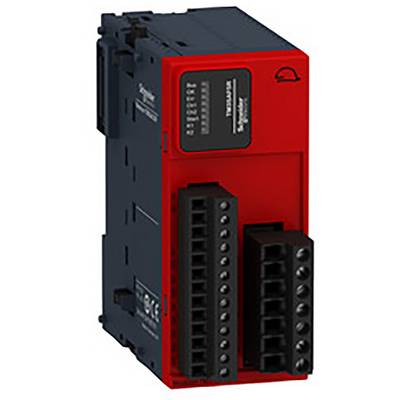

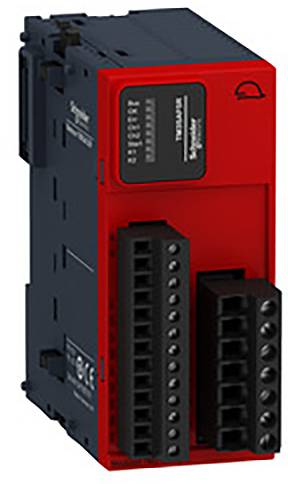

Schneider Electric TM3SAF5R Safety module No. of relay outputs: 3
EAN:
Part number:
Item no:
Product type
Safety module
No. of relay outputs
3
Operating voltage
24 V DC
Type
TM3SAF5R
Width
43.7
Datasheet (PDF)
Number
Total (€ 193.27 / piece)
€ 193.27
plus VAT.
14-day return policy included
Technical specifications
- Type
TM3SAF5R
- Product type
Safety module
- No. of relay outputs
3
- Operating voltage
24 V DC
43.7
Other
94 mm
73 mm
TRUE
FALSE
FALSE
FALSE
3
Screw connection
TRUE
FALSE
None
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
Level e
1
DC
Other
3
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2915136 Schneider Electric TM3SAF5R Safety module No. of relay outputs: 3
Datasheet 2915136 Schneider Electric TM3SAF5R Safety module No. of relay outputs: 3
User & Safety Instructions
User & Safety Instructions 2915136 Schneider Electric TM3SAF5R Safety module No. of relay outputs: 3
Information
Information 2915136 Schneider Electric TM3SAF5R Safety module No. of relay outputs: 3
Information 2915136 Schneider Electric TM3SAF5R Safety module No. of relay outputs: 3
Information 2915136 Schneider Electric TM3SAF5R Safety module No. of relay outputs: 3
Information 2915136 Schneider Electric TM3SAF5R Safety module No. of relay outputs: 3
Description
Security module Modicon TM3. To extend Modicon M221, M241, M251 and M262 PLC controllers with modules for functional safety. Compatible with third-party controllers using Modicon TM3 Bus Coupler. 2 digital safety inputs (24 VDC, 100 mA), 3 parallel digital safety outputs. For connection of emergency stop (EN/IEC 60204-1, EN/ISO 13850) and switches in protection devices (EN/ISO 14119). Maximum attainable safety level PLe / category 4 according to EN/ISO 13849-1, SIL CL3 according to EN/IEC 62061. Security-relevant functions are managed by the security module only, regardless of the rest of the system. Relay states can be read directly via the TM3 backplane bus. The digital outputs are designed as relays (24VDC / 230VAC, 6A). Configuration and configuration using software EcoStruxure Machine Expert or Standalone Configurator (download via www.se.com). Connection via removable screw terminal strips. Ambient temperature in operation -10°C to +55°C. Mounting on 35 mm DIN rail or directly on control panel with optional holder. CE, UL, CSA, RCM, EAC, CCC.
