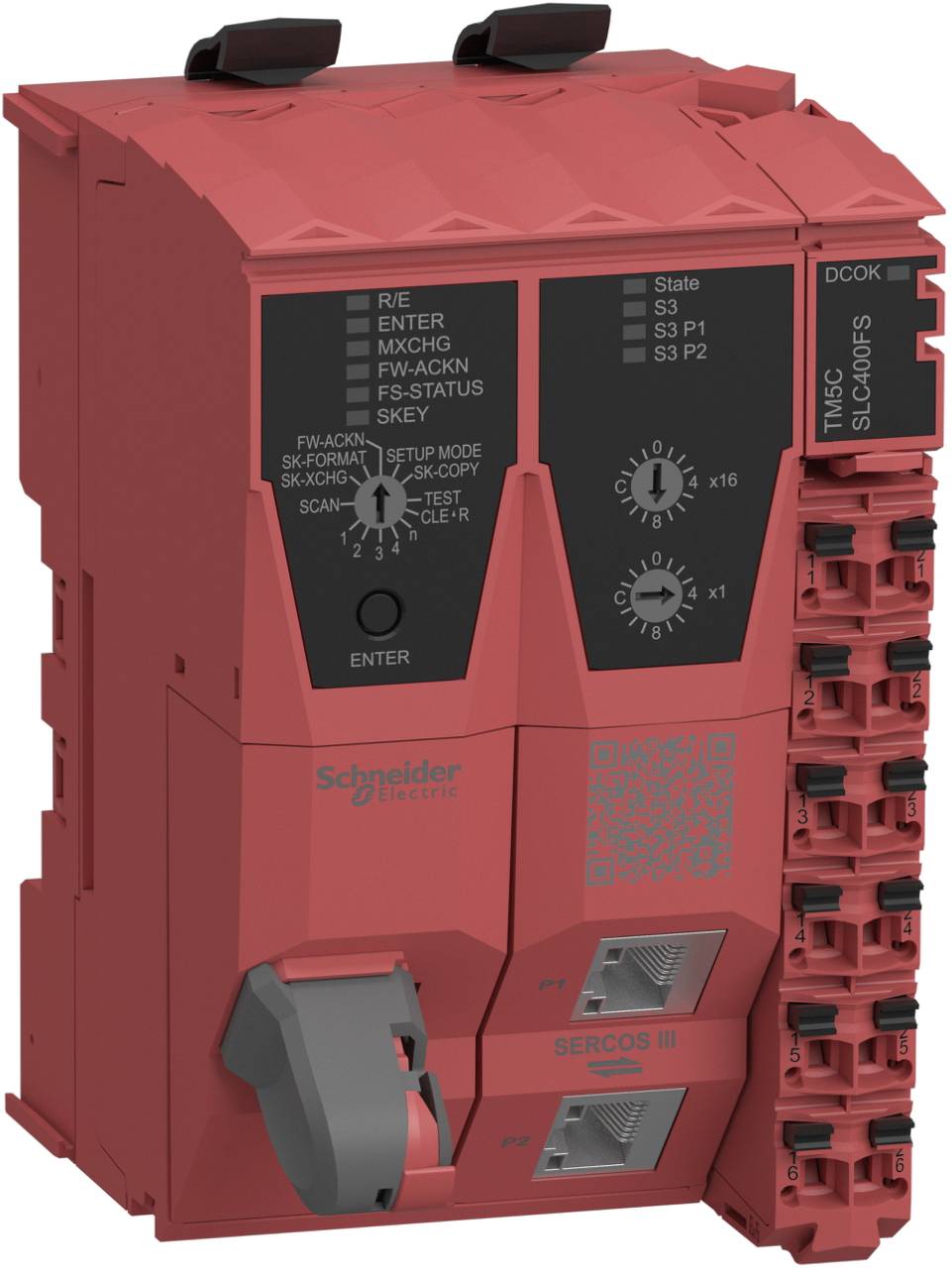

Schneider Electric TM5CSLC400FS TM5CSLC400FS PLC controller

Safety PLC control (SLC) for the Modicon TM5/TM7 safety system. The SLC handles safety-related functions such as configuration management, parameter management and execution of the safety-relevant application program. Certified by the TÜV NORD for Performance Level PLe according to EN ISO 13849-1 and SIL 3 according to IEC 61508 and IEC 62061. A typical TM5/TM7 safety system includes a controller, an SLC, a Modicon TM5 SERCOS III bus coupler (TM5NS3) and TM5/TM7 safety modules. The Modicon TM5/TM7 I/O safety modules are connected to the SLC via the SERCOS III bus coupler. Up to 100 security modules can be connected to the SLC. The SLC is compatible with controllers from the Modicon M262 and PacDrive product ranges with SERCOS III interface. A memory stick is required to operate the device. This is used to save the program, the parameters and the system configuration. The memory stick is not included in the delivery and must be ordered separately. Two built-in shielded RJ45 (100Mbps) ports for connecting the SERCOS III bus. The cycle time can be set to 1, 2 and 4 ms. One slot for a memory stick. The power supply is provided by a 24VDC. Programming and configuration using EcoStruxure Machine Expert software (download via www.se.com) and the EcoStruxure Machine Expert - Safety add-on. Design in protection class IP23. Dimensions (W x H x D) 62.5 x 99 x 75 mm. Ambient temperature in operation 0°C to +55°C. Mounting on 35 mm DIN rail. Certified according to EN 62061, EN ISO 13849-1, IEC 61508, CSA, Class I, var. 2, cULus and UKCA.
