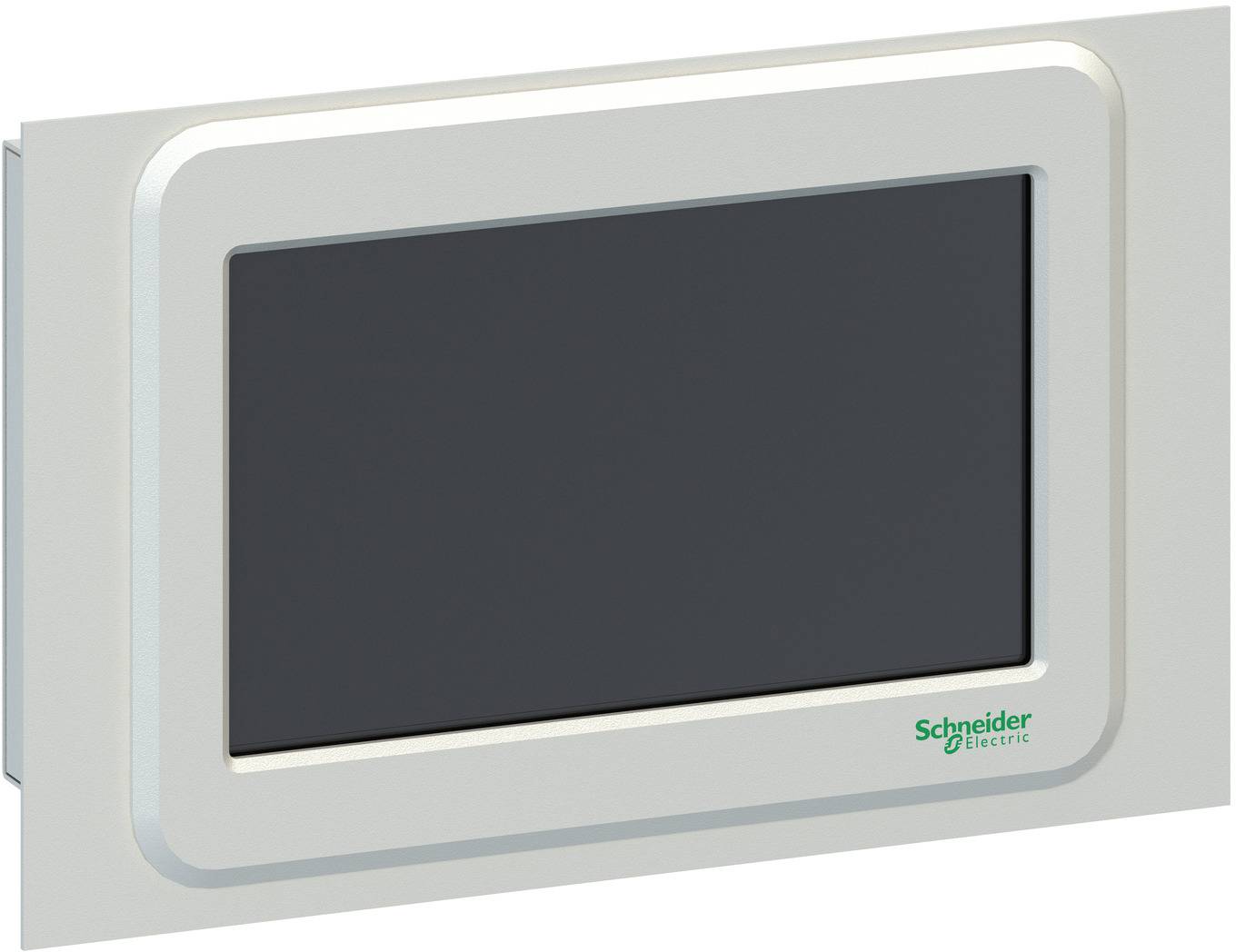

Schneider Electric Touchscreen EZAPF070HMI
EAN:
Part number:
Item no:
Product type
Touchscreen
Energy efficiency rating
Doesn't apply
Resolution
800 x 480 pixels WVG A
Dim
(W x H) 135 mm x 192 mm
Width
135 mm
Datasheet (PDF)
Number
Total (€ 2,550.42 / piece)
€ 2,550.42
plus VAT.
14 days return policy included
Technical specifications
- Product dimensions, depth 70.5 mm
- Display color: 65,536 colors
- Display size: 7 inch
- LCD touch screen type
- Touch-screen: Resistance layer
- [UH,not] Rated operating voltage 24 V DC
- Control Type: No control units
- Operating voltage Ue: 36 V DC for digital input, 28 V DC for digital output
- Power consumption 625 mA
- Integrated interfaces: Digital input, digital output, 5-pin RS485, USB 2.0 interface
- Mounting mode: Enclosure door
- Product type
Touchscreen
- Resolution
800 x 480 pixels WVG A
- Dim
(W x H) 135 mm x 192 mm
Doesn't apply
- Width
135 mm
- Height
192 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3754739 Schneider Electric Touchscreen EZAPF070HMI
User & Safety Instructions
User & Safety Instructions 3754739 Schneider Electric Touchscreen EZAPF070HMI
Description
Schneider Electric EasyLogic APF is an active harmonic filter for stabilizing the electrical network. It offers harmonic reduction, power factor correction and network load balancing. The device is suitable for small to medium-sized business buildings and the light industry. With EasyLogic APF good harmonic attenuation can be achieved with a total distortion of current harmonics of less than 5%. This HMI is a color 7-inch touch screen that allows you to set various parameters and functions of the APF modules. It is used for single APF modules and multiple APF wall-mounted devices when connected in parallel. The device is light gray and has a height of 135 mm, a depth of 70.5 mm, a width of 192 mm and a weight of 1.5 kg. It conforms to IEC 62477-1, EN 61000-6-2, EN 61000-6-4 class A, IEEE Std 519-2014 and is certified with CE and RCM. Up to 8 modules can be connected in parallel per current transformer set. Each combination of different sizes is possible.
