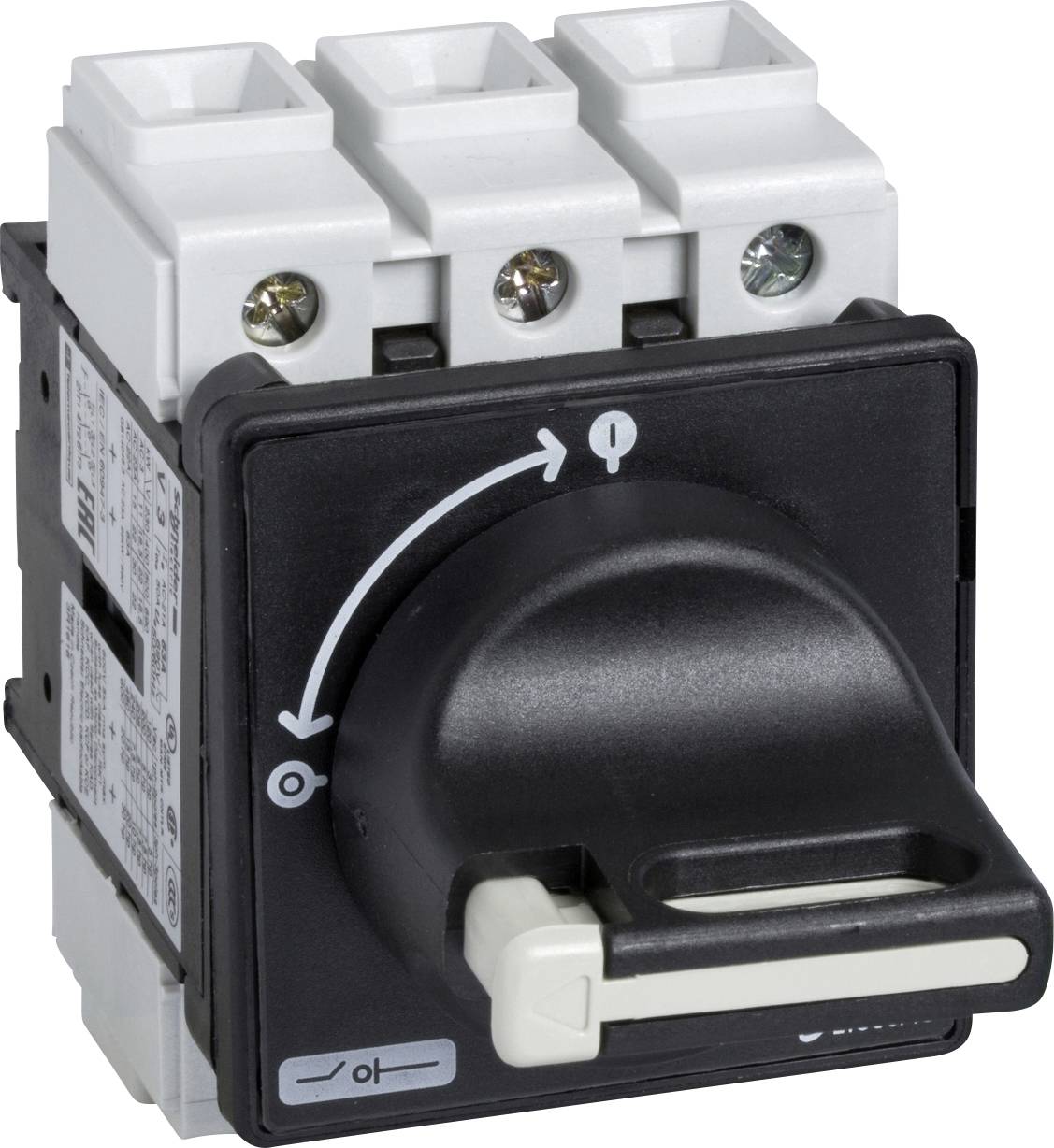

Schneider Electric VBD0 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 60 x 74 x 121 mm
EAN:
Part number:
Item no:
Product type
Circuit breaker
Connection
Screw terminal
Type
VBD0
Current load
14.5 A
No. of pins
3-pin
Technical specifications
- Design: Lockable
- Operating type: Rotary drive
- Locking with turning handle: 1 to 3 padlocks 4…8 mm
- Conventional thermal current 25 A.
- Mechanical life: 100000 cycles
- Dimensions of handle front panel: 60 x 60 mm
- PVC-free: Yes
- Halogen-free: Yes
- Product type
Circuit breaker
- Type
VBD0
- Current load
14.5 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Min. temperature
-20 °C
- Max. temperature
+50 °C
- Connection
Screw terminal
IP20
IP65
- Depth
121 mm
- Width
60 mm
- Height
74 mm
- Dim
(W x H x D) 60 x 74 x 121 mm
- Content
1 pc(s)
- UKCA
yes
