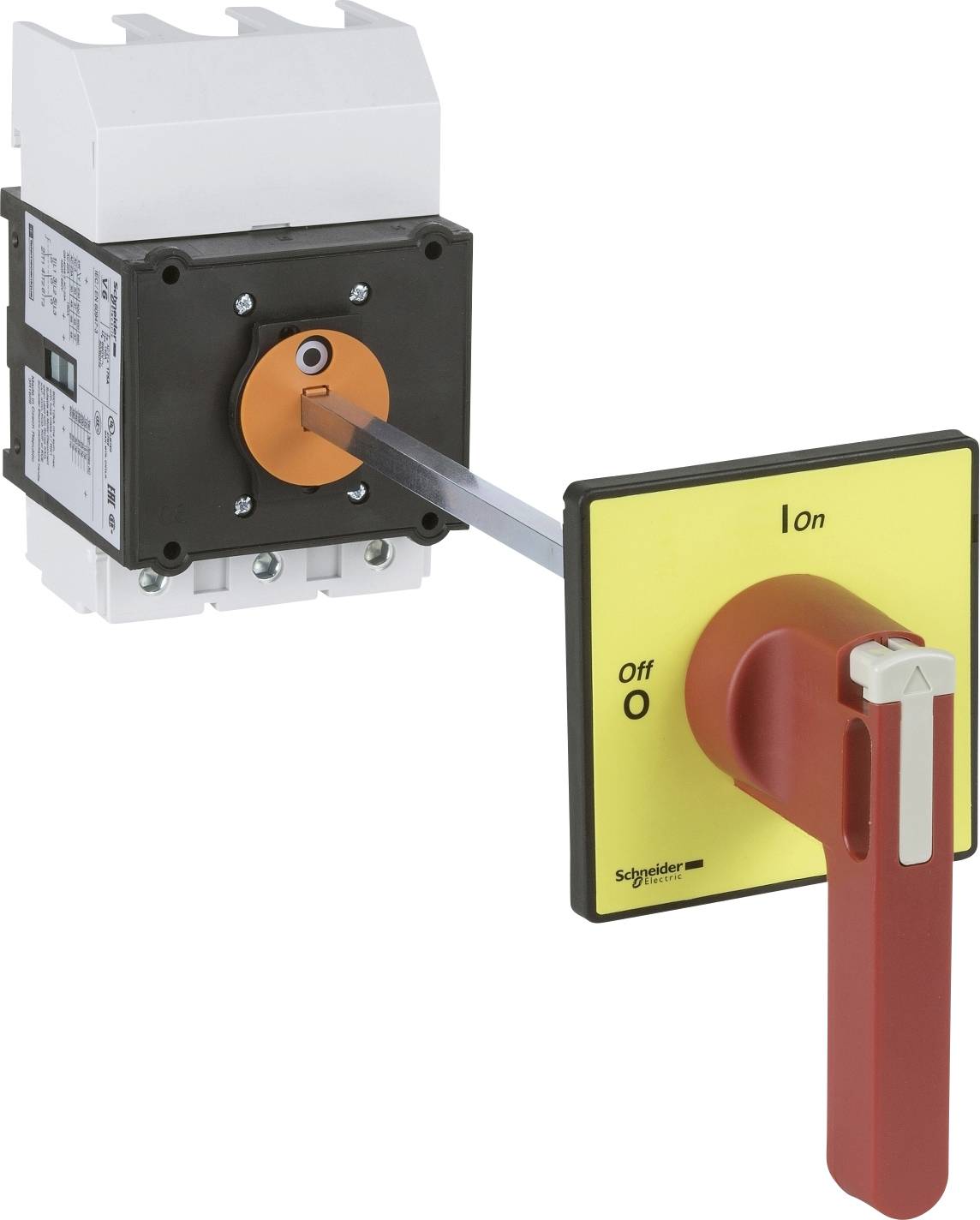

A load isolator switch with a red rotary knob shows two positions: 'Off' and 'On'. It is used to disconnect electrical circuits.

Image similar

A load isolator switch with a red rotary knob shows two positions: 'Off' and 'On'. It is used to disconnect electrical circuits.

Image similar

Schneider Electric

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Description of poles: 3P
Operating type: Rotary drive
Rated operating voltage UE: 690 V AC 50/60 Hz
Performance: High performance
Dimensions of the front panel: 90 x 90 mm

Packaging type: Piece

Product type: Kill switch

Switch/button features: for emergency power-off

Print motif: EMERGENCY STOP

Contact type: 3 makers

Factory colour: Red
Yellow

Connection: Screw terminal
Screws
Clip

Type: Lockable

Functions: Mechanical lock

Weight: 1.32 kg

Durability: 30000 cycles

Width: 90 mm

Height: 125 mm

Switching voltage: 690 V

Switching current (max.): 68.5 A

Min. temperature: -20 °C

Max. temperature: +50 °C

: IP20
IP65

Type: VCCF5

Content: 1 pc(s)

Dim: (W x H) 90 mm x 125 mm

UKCA: yes
