Name: Schneider Electric VRKT3L0FNC00000 VRKT3L0FNC00000 Industrial robot 35 kg
Brand: Schneider Electric
SKU: 3763516

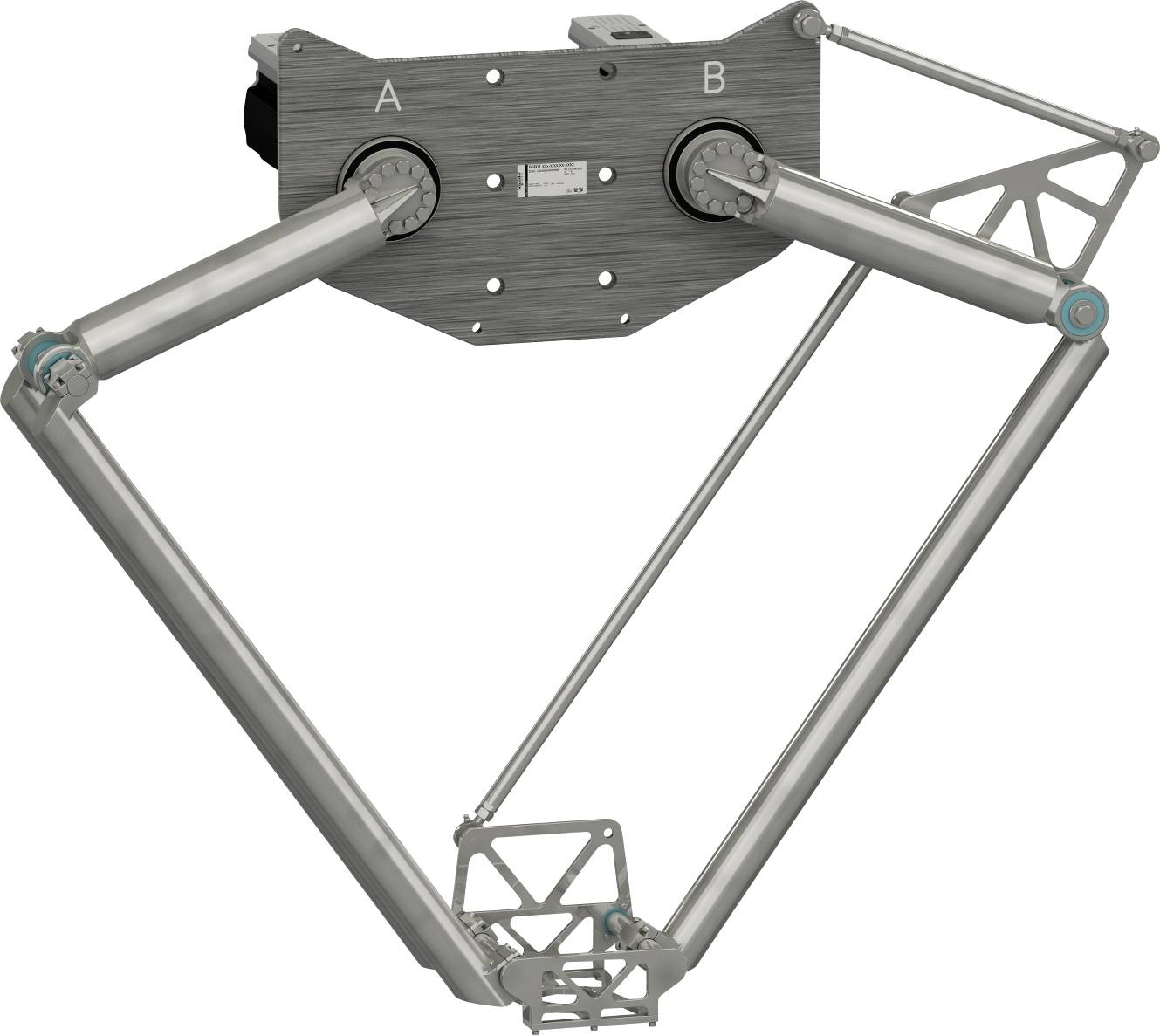

Mechanical linkage prototype with two top pivots labeled A and B, connected by triangular arms to a lower joint, showing a kinematic arm mechanism.

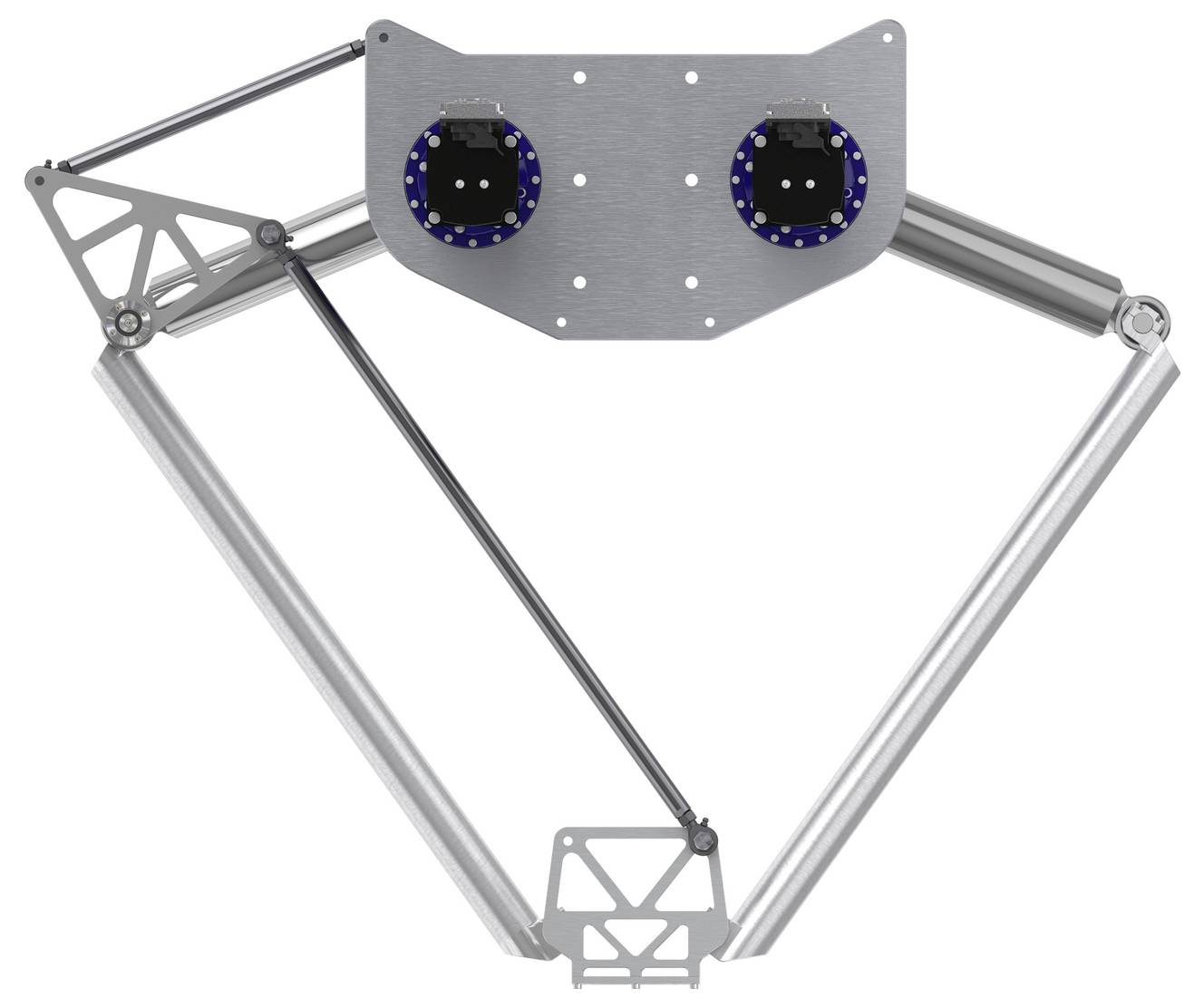

Mechanical linkage diagram showing a symmetrical metal arm assembly with two pivoting side arms connected to a central plate and lower mount.<br>

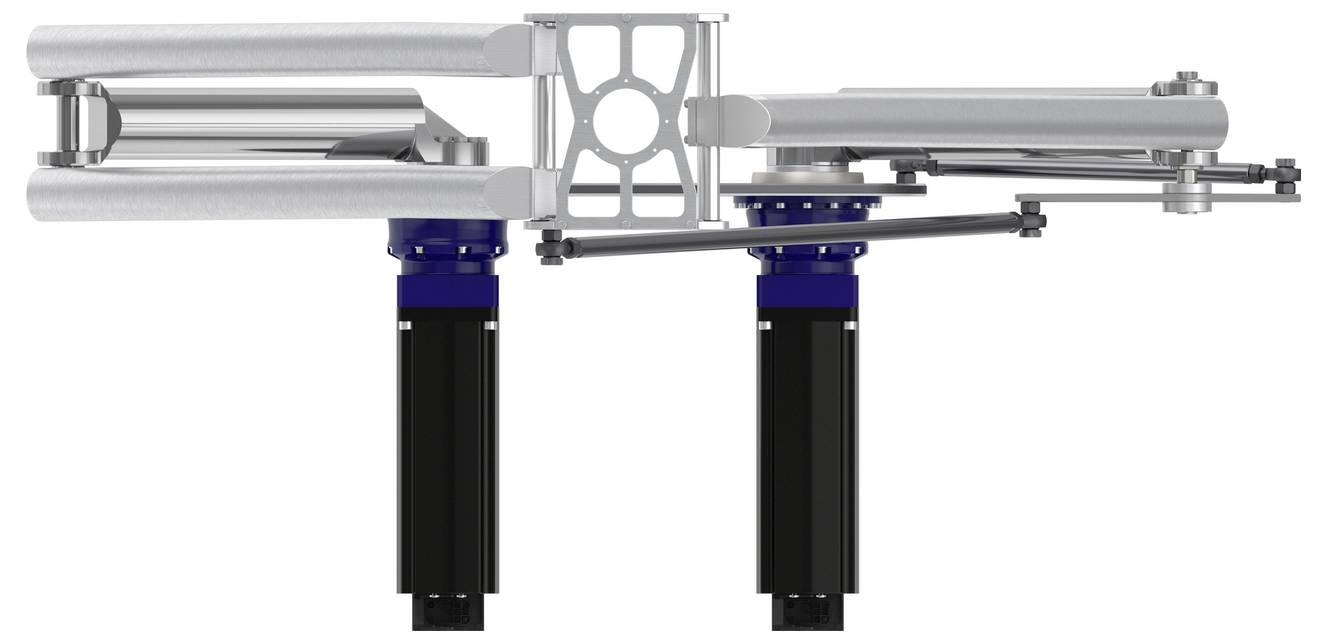

Side view of a dual-motor linear actuator assembly with two black cylinders, metal rails, and a central bracket on a white background.

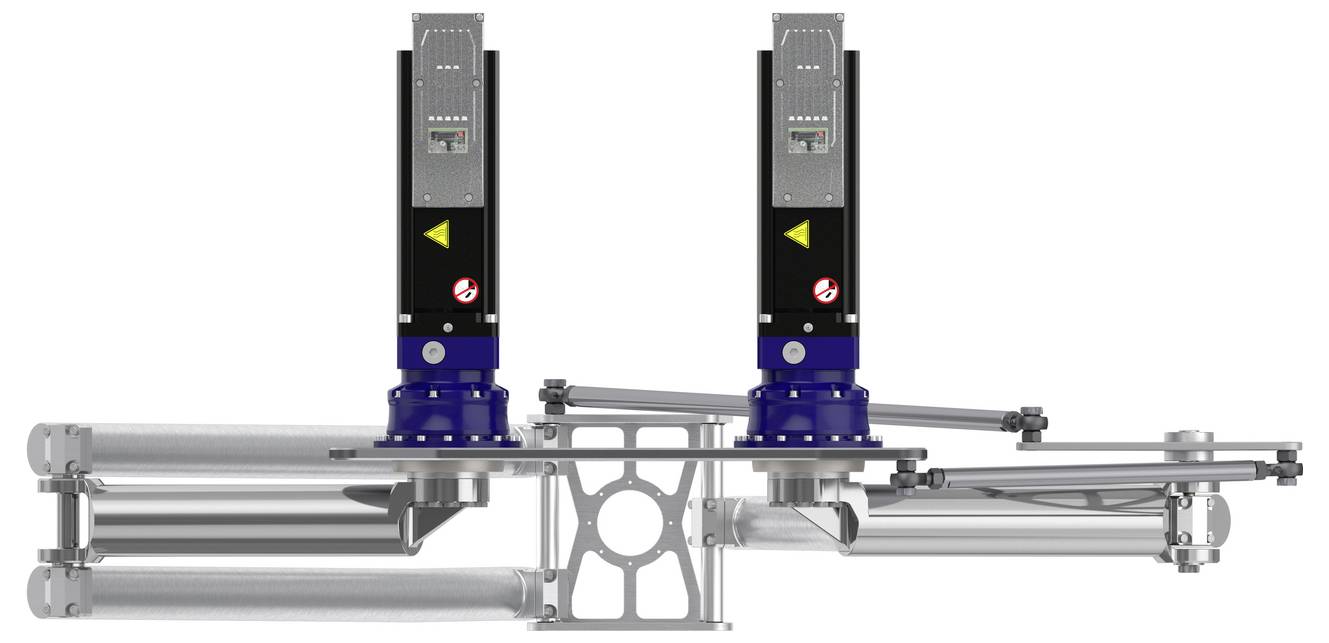

Industrial automated machine with two vertical motorized units mounted on a metal conveyor or linear frame.

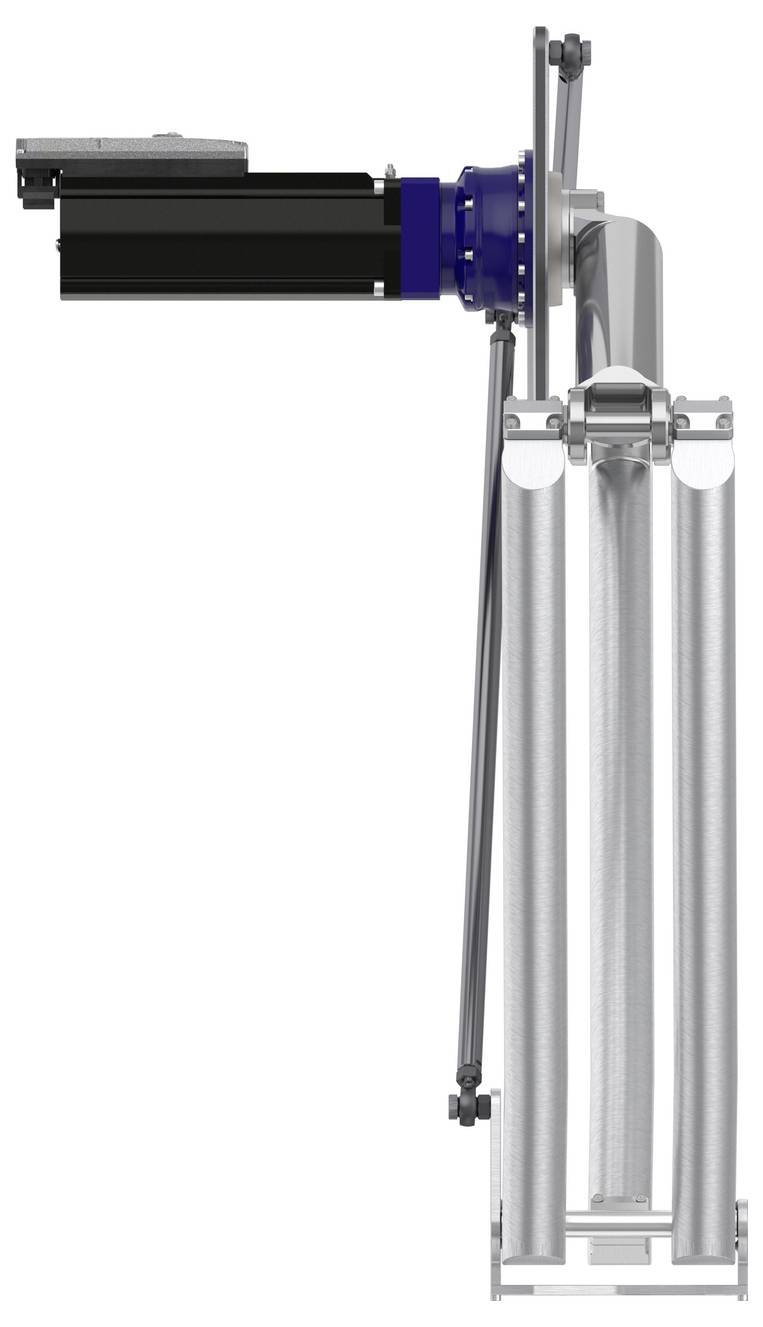

Industrial actuator or linear motor assembly with a black horizontal drive on the left and three vertical silver cylinders on the right.

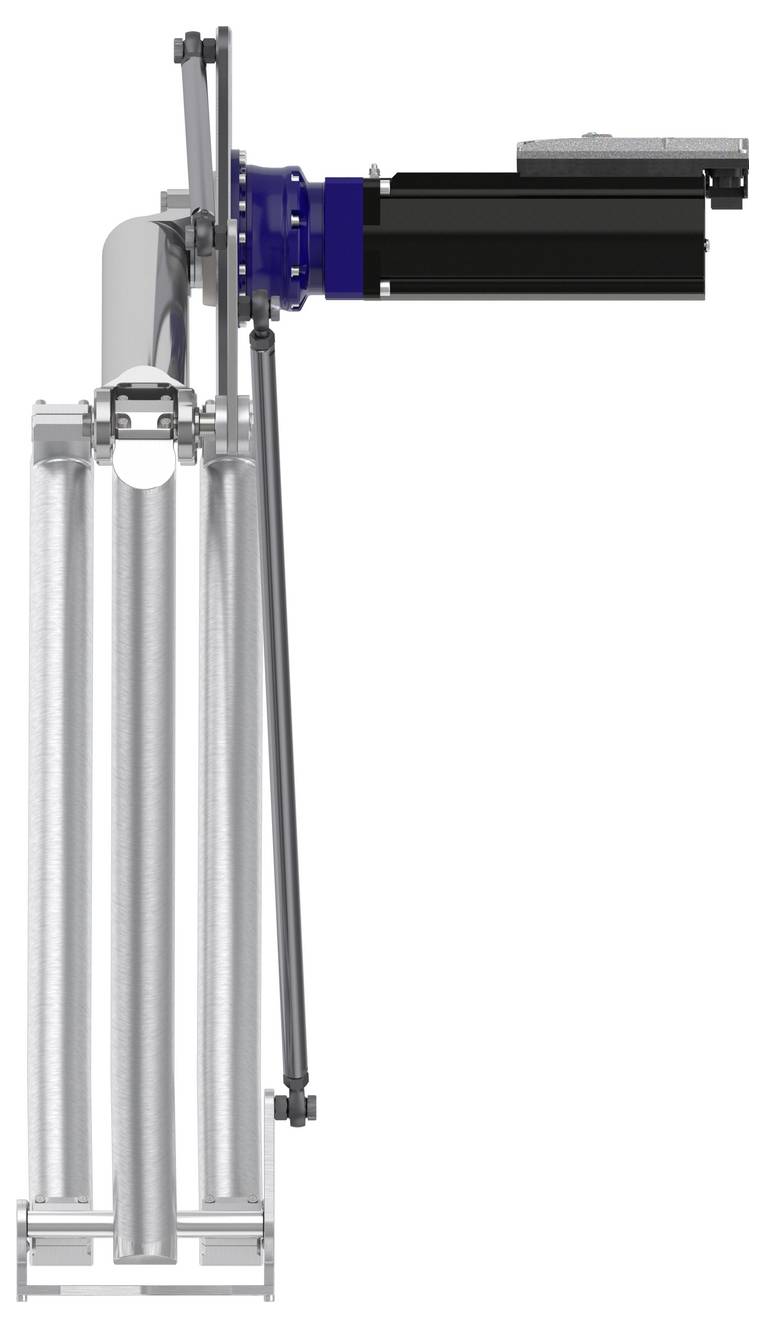

Industrial machine component with a horizontal actuator mounted above three vertical silver cylinders and supporting frame on a white background.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of degrees of freedom: 2
Number of joints: 2

Product type: Industrial robot

Load capacity (max.): 35 kg

No. of axles: 2

Range (max.): 1000 m

: 2

: 2

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3763516 Schneider Electric VRKT3L0FNC00000 VRKT3L0FNC00000 Industrial robot 35 kg

User & Safety Instructions

User & Safety Instructions 3763516 Schneider Electric VRKT3L0FNC00000 VRKT3L0FNC00000 Industrial robot 35 kg

Description

Lexium T, P. 2-axis Delta 2 Robot. Delta robot for pick & place solutions, ready to use sold (pre-assembled, ready to connect mechanics). Working range 1000 mm Load capacity: Up to 35 kg. With ILM motors. Fixed, no rotation axis installed. Normal, Compact.

This text is machine translated.
