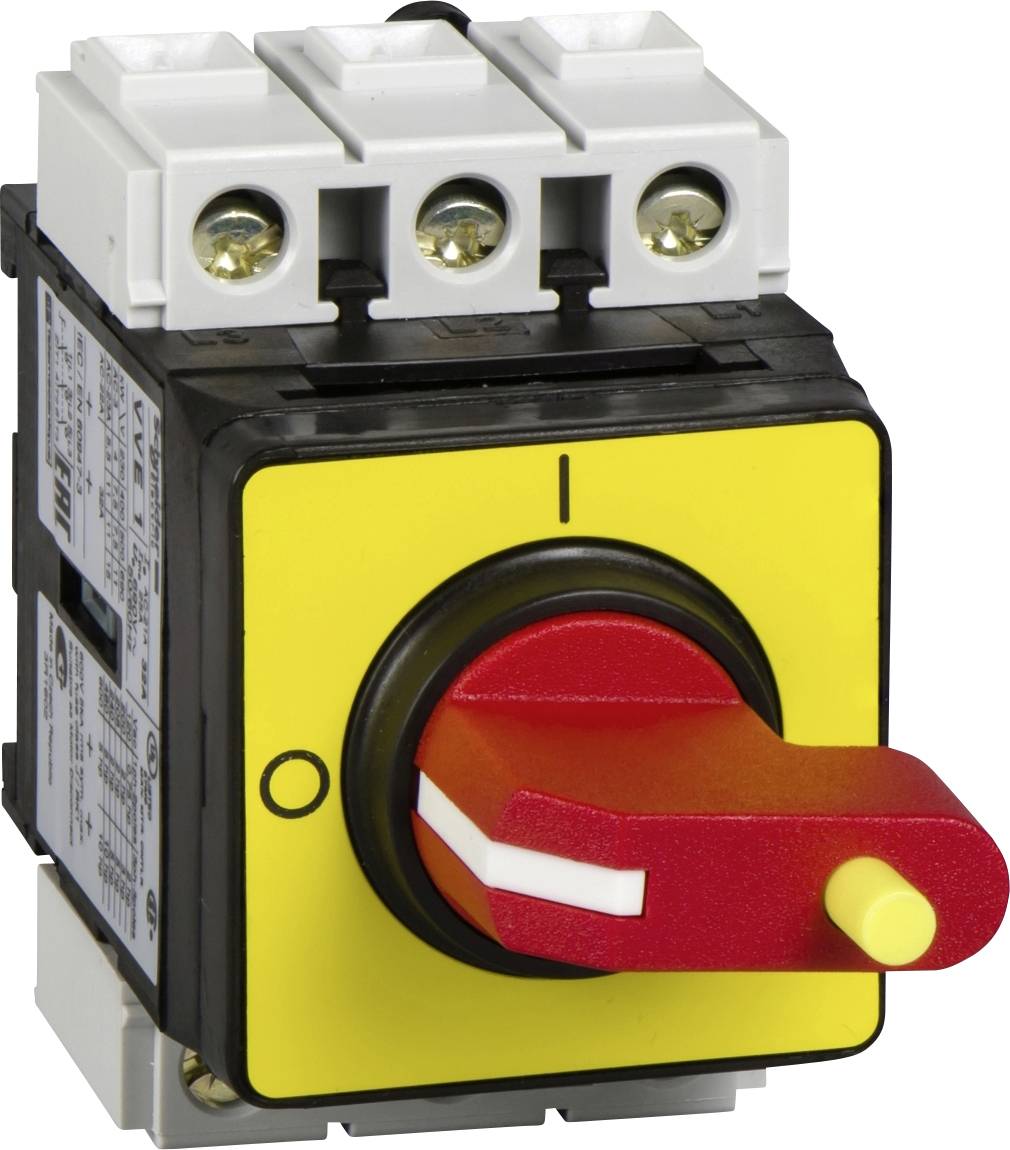

'Rotary switch with yellow and red switch button in the Off position, surrounded by electrical connections and housing.'

Image similar

'Rotary switch with yellow and red switch button in the Off position, surrounded by electrical connections and housing.'

Image similar

Schneider Electric

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Description of poles: 3P
Operating type: Rotary drive
Rated operating voltage UE: 690 V AC 50/60 Hz
Performance: High performance
Dimensions of the front plate 45 x 45 mm

Product type: Kill switch

Switch/button features: lockable

Contact type: 3 makers

Factory colour: Red
Yellow

Connection: Screw terminal
Screws
Clip

Type: Lockable; halogen-free; PVC-free

Functions: Mechanical lock

Weight: 0.25 kg

Durability: 100000 cycles

Length: 106 mm

Width: 55 mm

Height: 74 mm

Switching voltage: 690 V

Switching current (max.): 21.8 A

Min. temperature: -20 °C

Max. temperature: +50 °C

: IP65

Type: VVE1

Content: 1 pc(s)

Dim: (L x W x H) 106 x 55 x 74 mm

UKCA: yes
