Schneider Electric Wiser CCT5011-0002W Actuator Max. range (open field) 50 m Hausautomatisierung
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series
Wiser
- Transfer Standard (Smart Home)
ZigBee
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
220 V
240 V
- Channels
1
- Frequency
2.4 GHz
50 m
- Mounting type
Wall
- Factory colour
Dark grey
- Width
43 mm
- Height
43 mm
- Depth
22 mm
- Dim
(W x H x D) 43 x 43 x 22 mm
n.rel.
- Data exchange
Bidirectional (bi)
- Hub
Required
- Weight
90
- Product type
Actuator
Documents & Downloads
Datasheet
Datasheet 2842909 Schneider Electric Wiser CCT5011-0002W Actuator Max. range (open field) 50 m Hausautomatisierung
User & Safety Instructions
User & Safety Instructions 2842909 Schneider Electric Wiser CCT5011-0002W Actuator Max. range (open field) 50 m Hausautomatisierung
Description

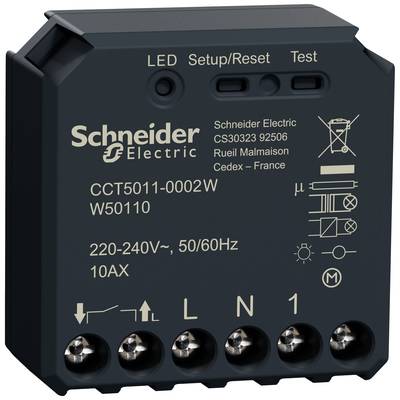

Wiser flush-mounted switching actuator switches ohmic, inductive or capacitive loads in a Wiser house control system (Zigbee). Potential-free relay. Up to 64 devices including hub can be connected via a system. See the online documentation (www.productinfo.schneider-electric.com/wiser_home-dev) for details. 43 x 43 x 22 mm. Modular Smart home connection via the Wiser system, app control locally and from the distance, schedules, moments (scenes) and automations via Wiser Home APP. Zigbee 3.0 (factory settings) and Bluetooth. Capacitive load 10 A. Neutral conductor required, screw terminal connection. Successor of MEGA5011-0001. System configuration via the Wiser Home APP (Online and Offline!), Additional installation support via eSetup APP for qualified electricians.
