Buy Schneider Electric XALK84W3BG Kill switch/EPO button + enclosure, illuminable 24 V 6 A 1 maker, 2 breakers IP66, IP67, I

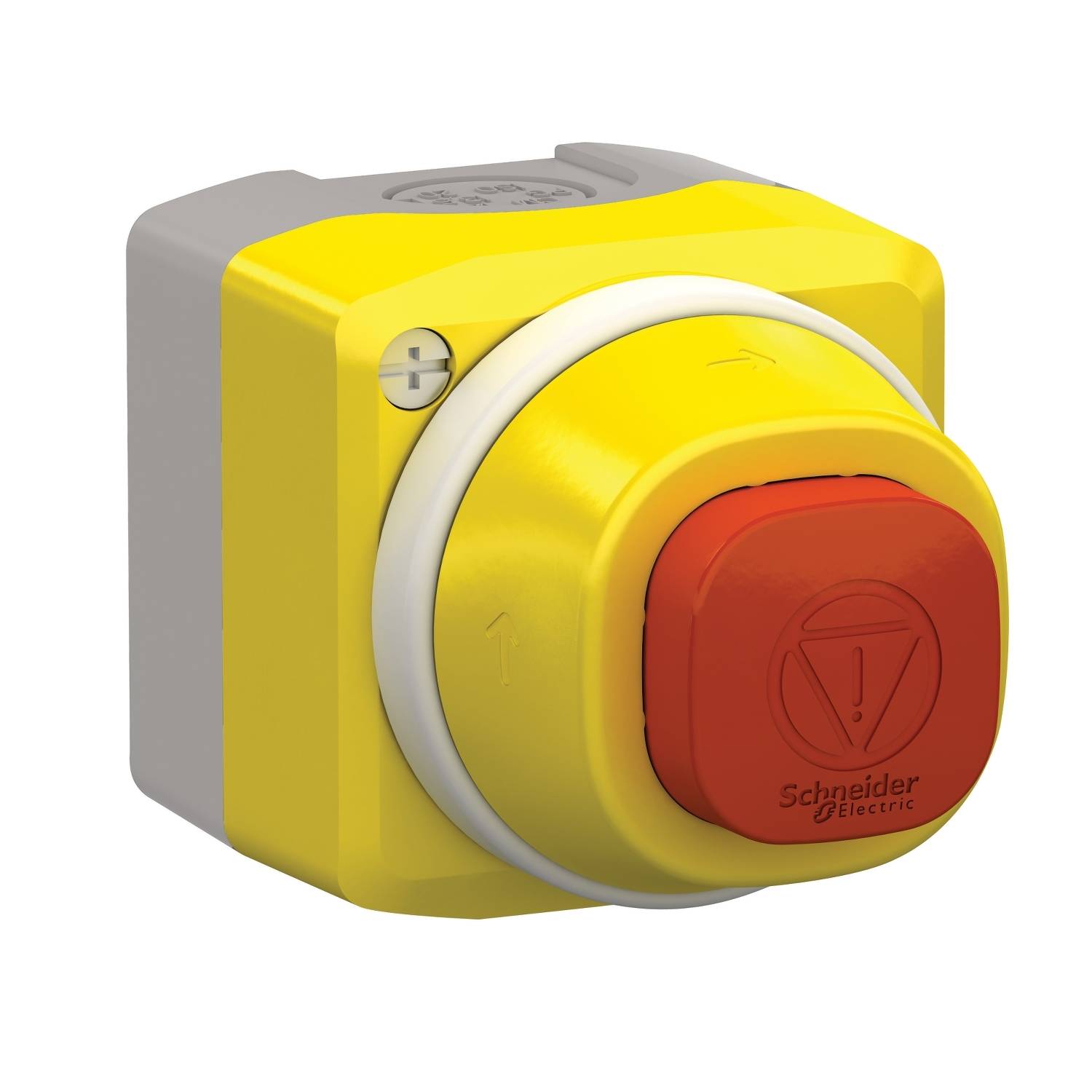

An emergency stop switch in yellow and red from Schneider Electric. The switch has a prominent red button in the centre.

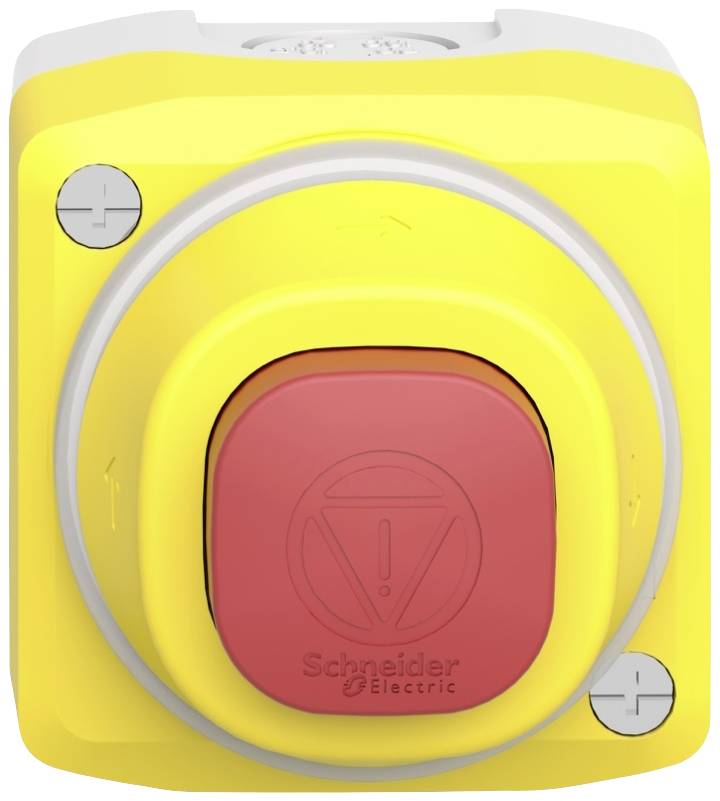

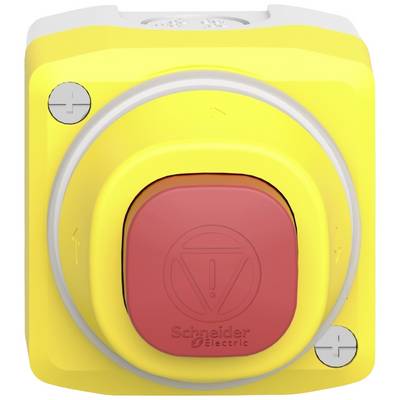

Yellow emergency stop switch with red button by Schneider Electric, used to interrupt power supply in emergency situations.

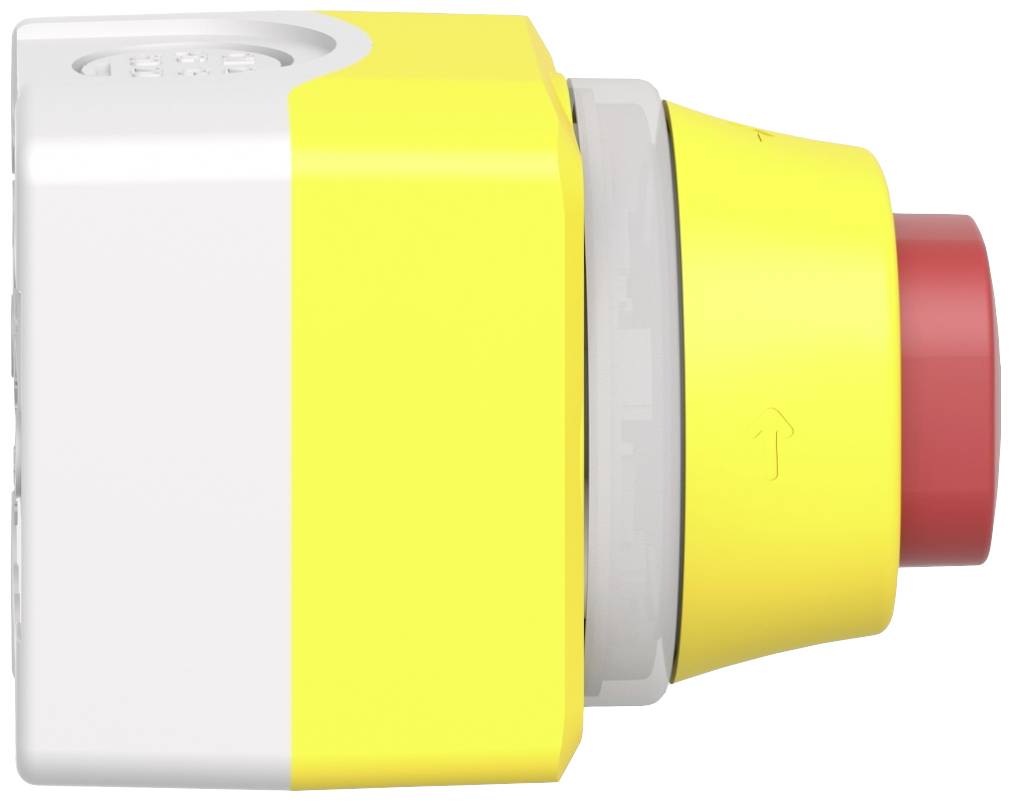

Emergency stop switch in yellow with a red button, shown from the side. Used for rapid deactivation of machines or systems in an emergency.

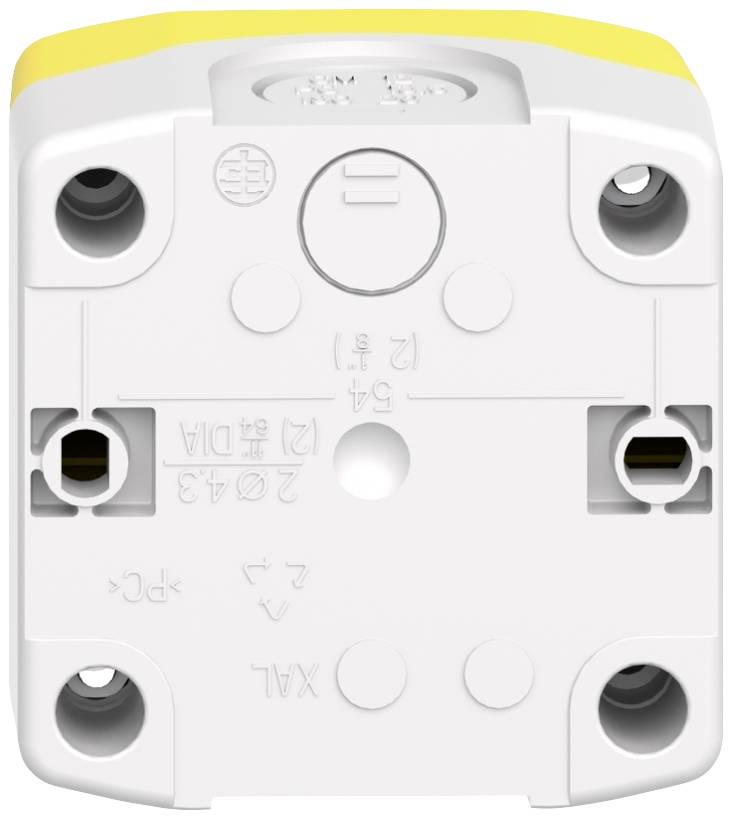

A white electrical component with a yellow stripe on the top surface and four openings. Markings and symbols are printed on it.

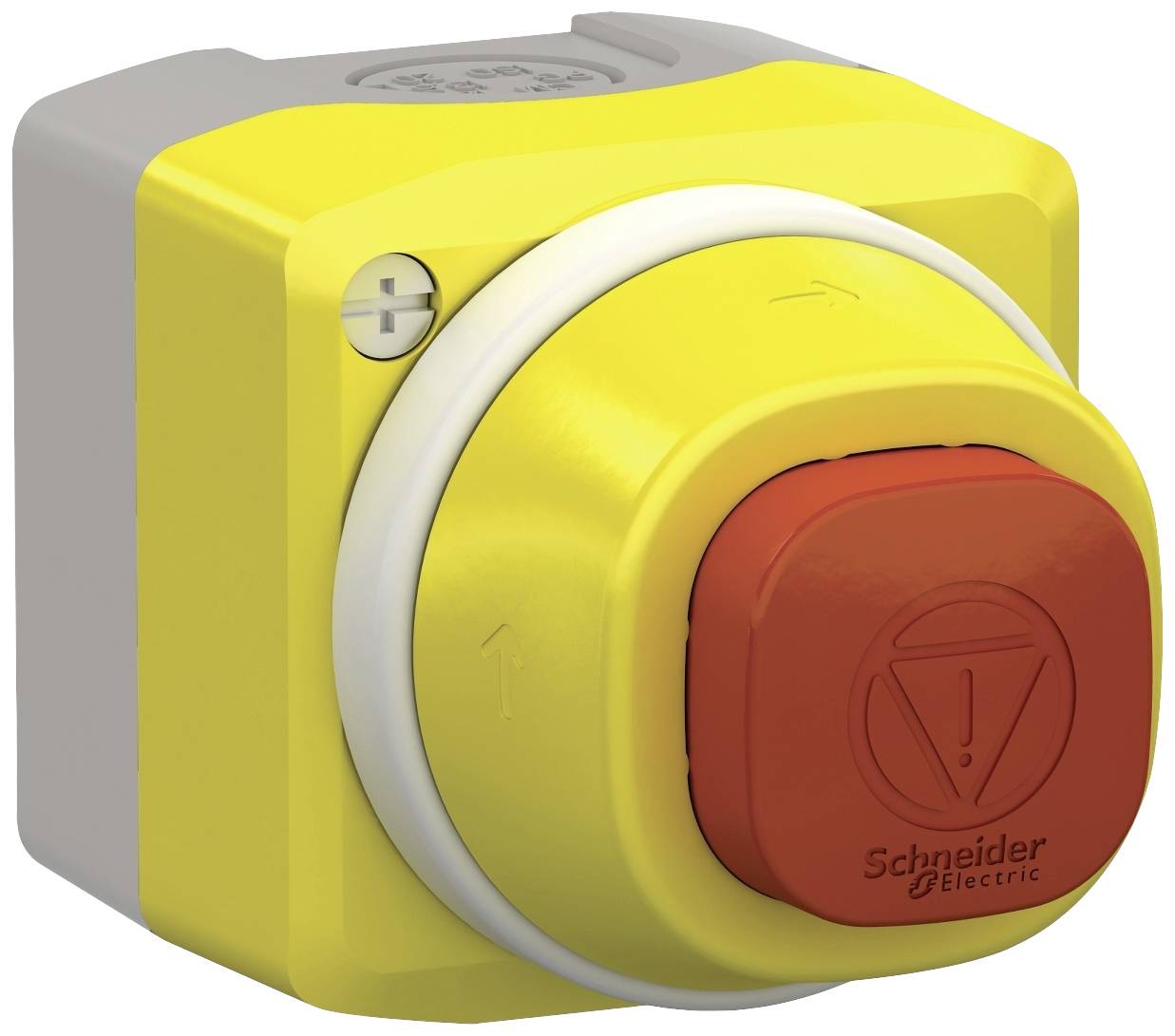

Yellow emergency stop switch with red button from Schneider Electric, showing directional arrow and warning symbol.

1/5

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 64.39 / piece)

€ 92.44

-30 %

€ 64.39

plus VAT.

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Illuminated emergency-off/emergency-stop button in housing, 2 LEDs white/red, 24 V, 1 normally open contact, 2 normally closed contact

Complete control station

Technical specifications

Red actuator profile: 32 mm square

Product type: Kill switch/EPO button

Switch/button features: + enclosure
illuminable

Print motif: EMERGENCY STOP

Lighting type: LED

Bulb type: LED (monochrome)

Colour: White
Red

Contact material: Silver alloy

Contact type: 1 maker
2 breakers

Factory colour: Yellow
Red
Grey

Connection: Screw terminal

Type: Mushroom head: Square 32 mm

Recess diameter: 22 mm

Functions: latch

Weight: 0.1911 kg

Durability: 300000 cycles

Electrical lifespan: 1 000 000 cycles

Length: 53 mm

Width: 96 mm

Height: 68 mm

Switching voltage: 24 V

Switching current (max.): 6 A

Min. temperature: -40 °C

Max. temperature: 70 °C

: IP66
IP67
IP69
IP69K

Type: XALK84W3BG

Content: 1 pc(s)

Dim: (L x W x H) 53 x 96 x 68 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2248295 Schneider Electric XALK84W3BG Kill switch/EPO button + enclosure, illuminable 24 V 6 A 1 maker, 2 breakers IP66, IP67, I

User & Safety Instructions

User & Safety Instructions 2248295 Schneider Electric XALK84W3BG Kill switch/EPO button + enclosure, illuminable 24 V 6 A 1 maker, 2 breakers IP66, IP67, I

Conformity certificate

Conformity certificate 2248295 Schneider Electric XALK84W3BG Kill switch/EPO button + enclosure, illuminable 24 V 6 A 1 maker, 2 breakers IP66, IP67, I

Description

The modular Harmony XB5 range of 22 mm plastic control and signaling units combines simple installation, efficiency, flexibility, modern design and robustness for most industrial applications.

This text is machine translated.

Hints

Clamps with screw clamp
