Schneider Electric XAPD4506 XAPD4506 Housing (W x H) 80 mm x 220 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Housing
- Material
Zinc alloy
- Width
80 mm
- Height
220 mm
- Dim
(W x H) 80 mm x 220 mm
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Content
1 pc(s)
- Type
XAPD4506
80
220 mm
77 mm
22.5 mm
6
Grey
Zinc
Surface mounting housing
IP65/IP67
Other
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2922267 Schneider Electric XAPD4506 XAPD4506 Housing (W x H) 80 mm x 220 mm 1 pc(s) Piece
Datasheet 2922267 Schneider Electric XAPD4506 XAPD4506 Housing (W x H) 80 mm x 220 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2922267 Schneider Electric XAPD4506 XAPD4506 Housing (W x H) 80 mm x 220 mm 1 pc(s) Piece
Information
Information 2922267 Schneider Electric XAPD4506 XAPD4506 Housing (W x H) 80 mm x 220 mm 1 pc(s) Piece
Information 2922267 Schneider Electric XAPD4506 XAPD4506 Housing (W x H) 80 mm x 220 mm 1 pc(s) Piece
Information 2922267 Schneider Electric XAPD4506 XAPD4506 Housing (W x H) 80 mm x 220 mm 1 pc(s) Piece
Description

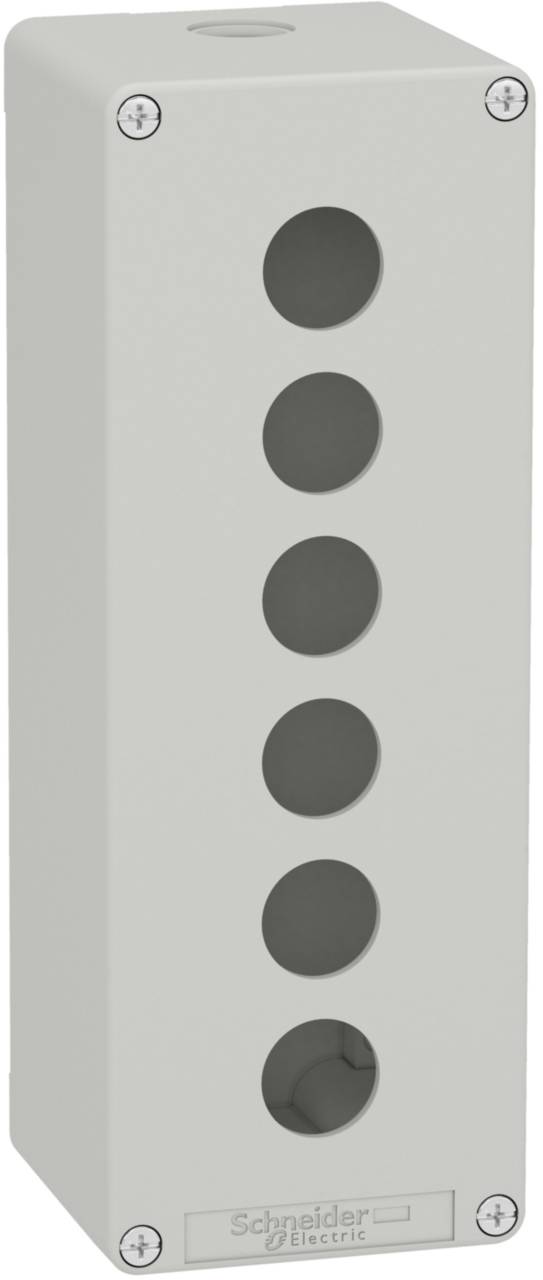

Empty housing of the Harmony XAP series. Made of metal with zinc alloy. Colour: Grey, with a hole of 6 x 22 mm. Size of housing: 80x220x77. With a M25 cable gland. IP protection classes up to IP69K and ambient temperatures from -25°C to +70°C. The modular Harmony series of push switches with 22mm or 30mm mounting dimensions combine easy installation, efficiency, modern design, flexibility with highest ruggedness. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520.
