Schneider Electric XAPK1201 XAPK1201 Housing (Ø x H) 22.5 mm x 80 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Housing
- Material
Zinc
- Recess diameter
22.5 mm
- Length
51.5 mm
- Width
80 mm
- Height
80 mm
- (Ø)
22.5 mm
- Dim
(Ø x H) 22.5 mm x 80 mm
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Content
1 pc(s)
- Type
XAPK1201
80
80 mm
51.5 mm
22.5 mm
1
Yellow
Zinc
Surface mounting housing
IP65/IP67
Other
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2922276 Schneider Electric XAPK1201 XAPK1201 Housing (Ø x H) 22.5 mm x 80 mm 1 pc(s) Piece
Datasheet 2922276 Schneider Electric XAPK1201 XAPK1201 Housing (Ø x H) 22.5 mm x 80 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2922276 Schneider Electric XAPK1201 XAPK1201 Housing (Ø x H) 22.5 mm x 80 mm 1 pc(s) Piece
Information
Information 2922276 Schneider Electric XAPK1201 XAPK1201 Housing (Ø x H) 22.5 mm x 80 mm 1 pc(s) Piece
Information 2922276 Schneider Electric XAPK1201 XAPK1201 Housing (Ø x H) 22.5 mm x 80 mm 1 pc(s) Piece
Information 2922276 Schneider Electric XAPK1201 XAPK1201 Housing (Ø x H) 22.5 mm x 80 mm 1 pc(s) Piece
Information 2922276 Schneider Electric XAPK1201 XAPK1201 Housing (Ø x H) 22.5 mm x 80 mm 1 pc(s) Piece
Description

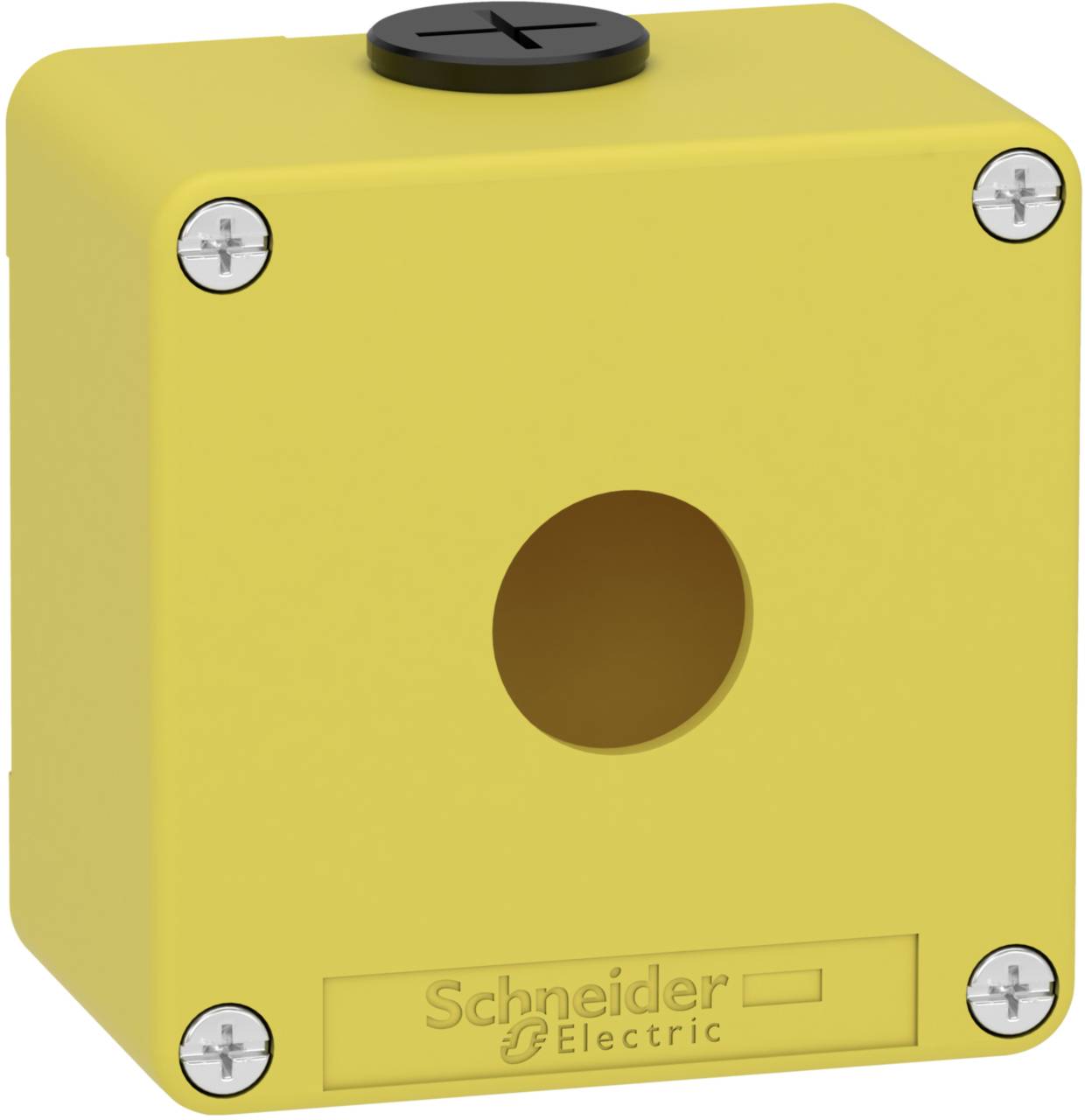

Empty housing of the Harmony XAP series. Made of metal with zinc alloy. Colour: Yellow, with a hole of 1 x 22 mm. Suitable for use with an emergency off/stop. Size of housing: 80x80x51.5. With a M20 cable bushing. IP protection classes up to IP69K and ambient temperatures from -25°C to +70°C. The modular Harmony series of push switches with 22mm or 30mm mounting dimensions combine easy installation, efficiency, modern design, flexibility with highest ruggedness. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520.
