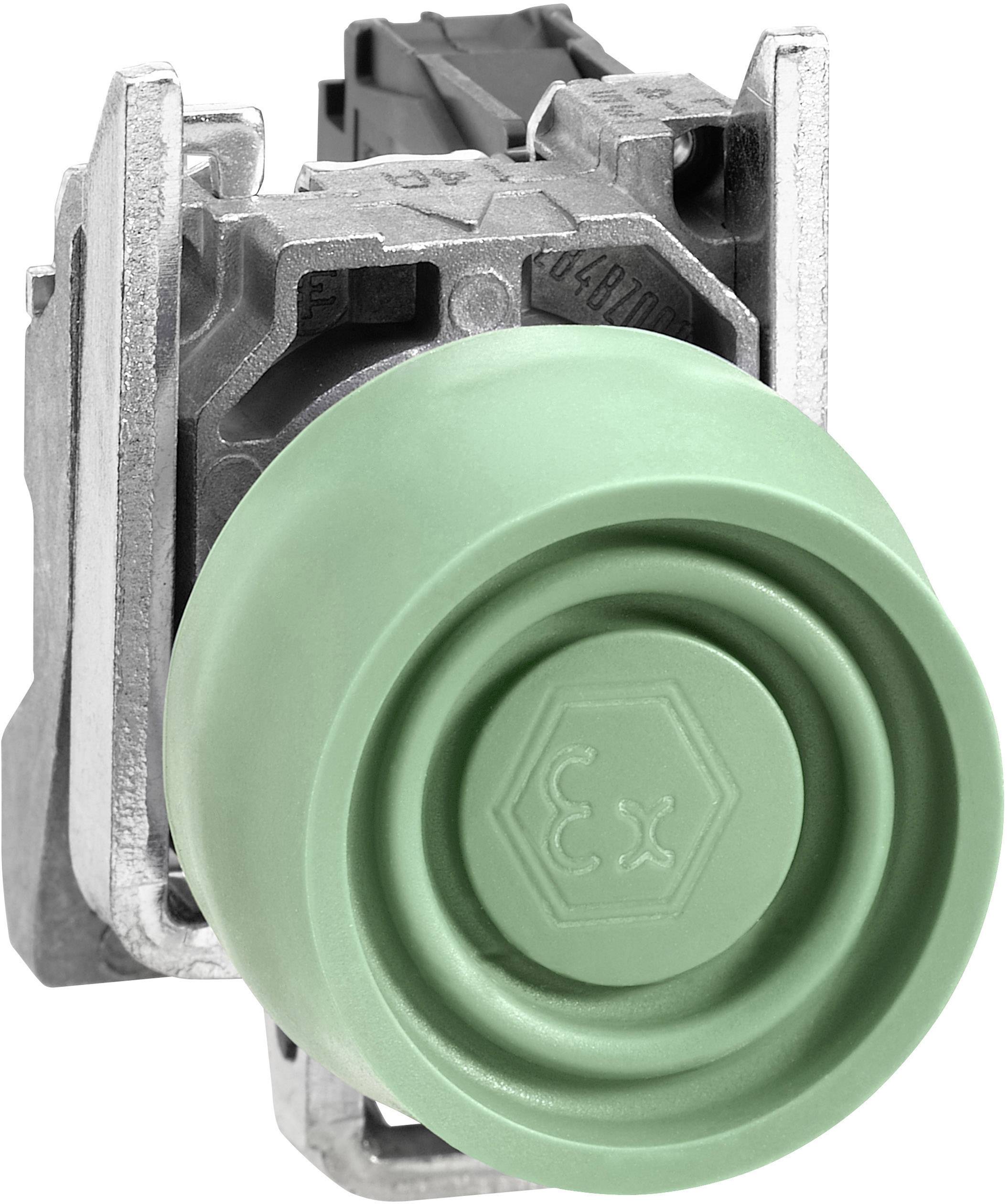

Schneider Electric XB4BPS31EX XB4BPS31EX Pushbutton 600 V 6 A momentary (Ø) 22 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Switching voltage
600 V
Switching current (max.)
6 A
Recess diameter
22 mm
Technical specifications
- Product type
Pushbutton
- Casing/button colour
Chrome
Green
- Functions
momentary
- Lighting type
None
- Material
Metal
- Switching voltage
600 V
- Switching current (max.)
6 A
- (Ø)
22 mm
- Recess diameter
22 mm
- Content
1 pc(s)
- Dim
(Ø) 22 mm
- Switching current (inductive)
6 A
- Type
XB4BPS31EX
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1982242 Schneider Electric XB4BPS31EX XB4BPS31EX Pushbutton 600 V 6 A momentary (Ø) 22 mm 1 pc(s)
Description
Control and signaling devices made of metal, diameter 22mm. The control and signaling devices designed for industry combine simple installation with great flexibility and robust designs. The robust 3-point mounting with only one screw offers enormous security and saves assembly time.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
